Pfister GT34-4NSS - Manual (Page 4)

E
N
G
L
IS
H
ENGLISH
14
13
12
11

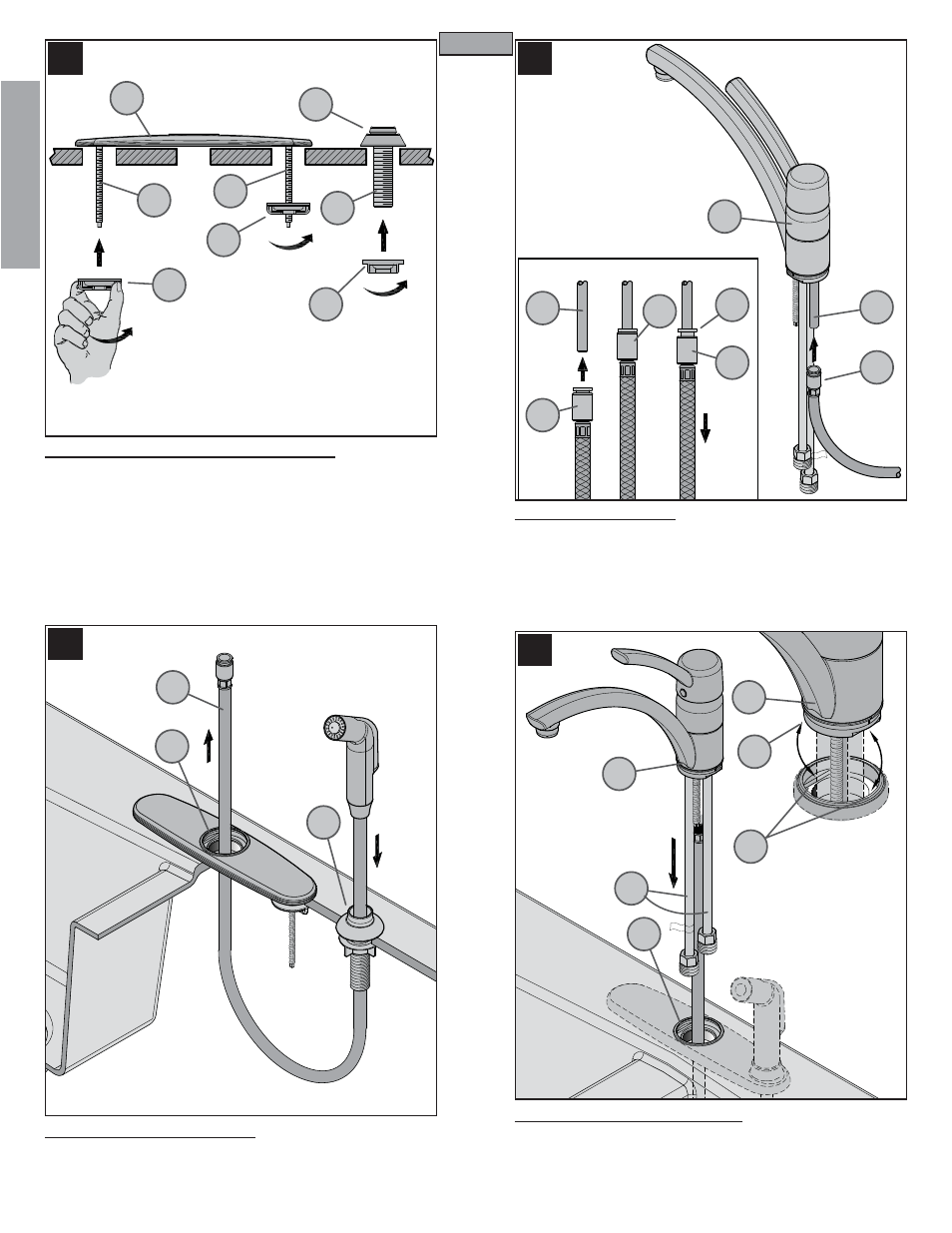

12 SIDE SPRAY INSTALLATION
Insert the Side Spray Hose (12A) through the Hose Guide (12B). From
underneath sink, feed the Side Spray Hose (12A) back up through the center
hole of sink and through Deckplate (12C) so that it is above the sink.
13 HOSE ATTACHMENT
Push Quick Connect Housing (13A), fi rmly upward onto the Receiving Tube
(13B) located on the back of the Faucet Body (13C), until unable to push any
further. Pull down on the Quick Connect Housing (13A). If the housing and
the Inner Collect (13D) separate slightly but do not pull off, the Receiving Tube
(13B) the connection is secure.
14 FAUCET BODY INSTALLATION
With the handle and spout facing forward, carefully install the Faucet Supply
Tubes (14A) through the center hole of Deckplate (14B). Make sure that
the Flats (14D) on the Faucet Body (14E) align with the Flats (14F) on the
Deckplate (14B).
11 SECURING DECKPLATE & HOSE GUIDE
From underneath sink, secure the Hose Guide (11A) by screwing the Plastic
Locknut (11C). Secure Deckplate (11D) by screwing Wing Nuts (11E) to
Mounting Posts (11F). Hand tighten. Caution: do not over-tighten. Remove
any excess putty from around the outside edge of Deckplate (11D).
4
ENGLISH
13B
14A
13A
13A
14B
14F
14E
14E
14D
12A
12B
12C
11A
11C
11A
11D
11F
11E
11F
11E
13B
13C
13D
13A
13A
