Thank you for purchasing this Price Pfi ster kitchen faucet. All Price Pfi ster products are carefully engineered, and factory tested to provide long
trouble-free use under normal conditions. This kitchen faucet is easy to install using basic tools and our easy to follow illustrated instructions.
If you have any questions regarding your kitchen faucet installation call 1-800-Pfaucet (1-800-732-8238)
.

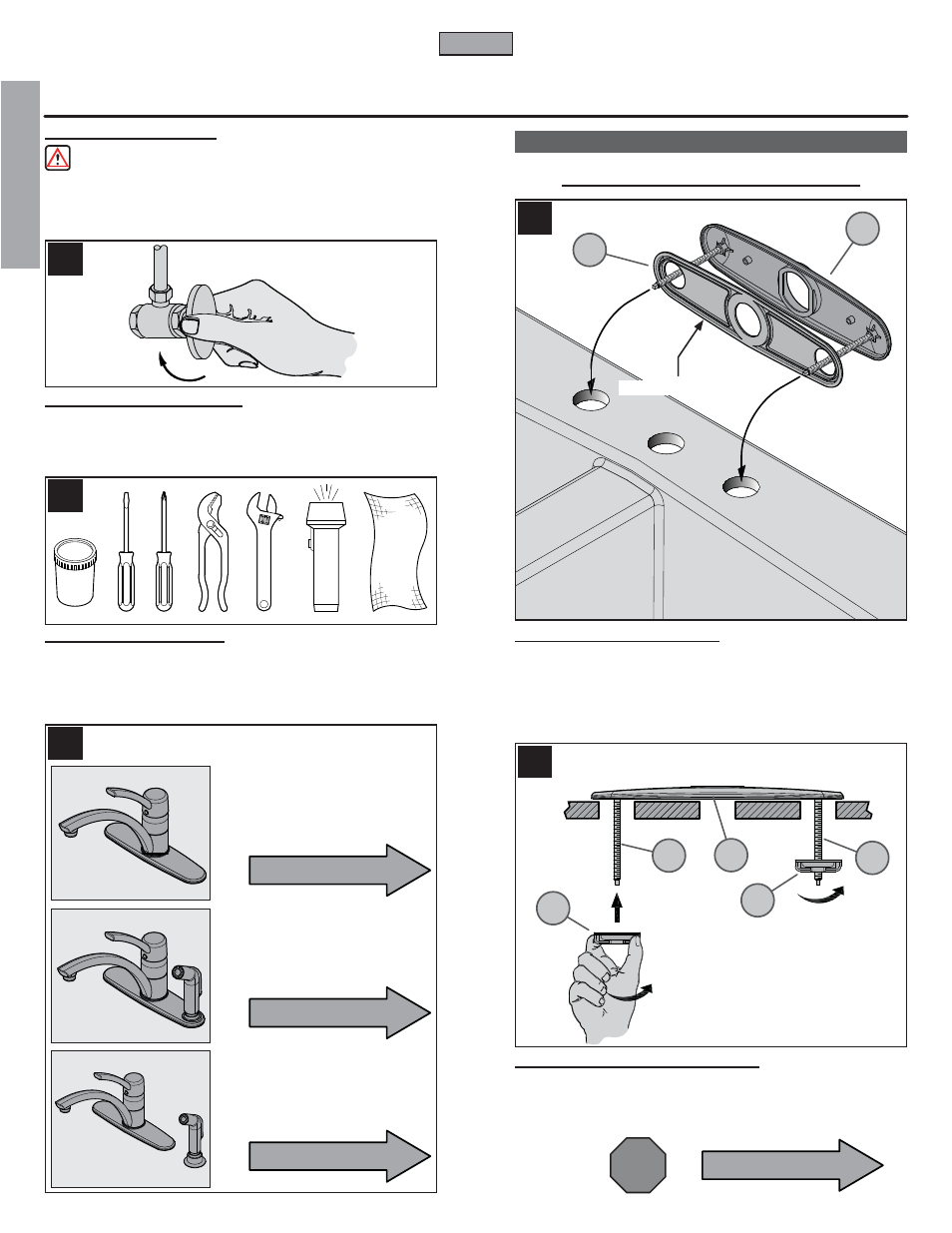

1 BEFORE PROCEEDING
WARNING: Read all the instructions completely before proceeding. Price
Pfi ster recommends calling a professional if you are uncertain about installing
this product!
This product should be installed in accordance with all local and state plumbing and
building codes.
2 SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are
usually found under the sink or near the water meter. If you are replacing an
existing faucet, remove the faucet from the sink and clean the sink surface
thoroughly.
3 TOOLS RECOMMENDED
•Plumber's putty •Slotted screwdriver •Philips head screwdriver
•Pliers •Adjustable wrench •Flashlight
•Cloth
Your installation may require new supply lines and / or shut-off valves or other
additional tools.
These instructions cover three
different installations:
INSTALLATION
Go To Step 14 Go To Step 14 STOP
5 DECKPLATE INSTALLATION
Ensure that the Plastic Putty Plate (5A) is pressed on the Deckplate (5B). Place
a bead of plumber’s putty in the groove along the outer edge of the Putty Plate
(5A). Install the Deckplate (5B) over the three holes in your sink.
6 SECURING DECKPLATE TO DECK
From underneath sink, hand tighten Wing Nuts (6A) to Mounting Posts (6C).
Caution: do not over-tighten wing nuts. Remove any excess putty from
around the outside edge of Deck Plate (6B).
3 HOLE INSTALLATION NO SIDE SPRAY
For 3 hole installation with
side spray
Models
H34-3N
Go To Step 7 Go To Step 7
For 4 hole installation with
side spray
Models
H34-4N
Go To Step 10 Go To Step 10
For 3 hole installation no
side spray
Models
H34-1N
Go To Step 5 Go To Step 5
2
ENGLISH
5B
6B
5A
6A
6A
6C 6C
BOTTOM GROOVE
