Pfister GT34-4NSS - Manual (Page 5)

E
N
G
L
IS
H
ENGLISH
15
18
17
16
19

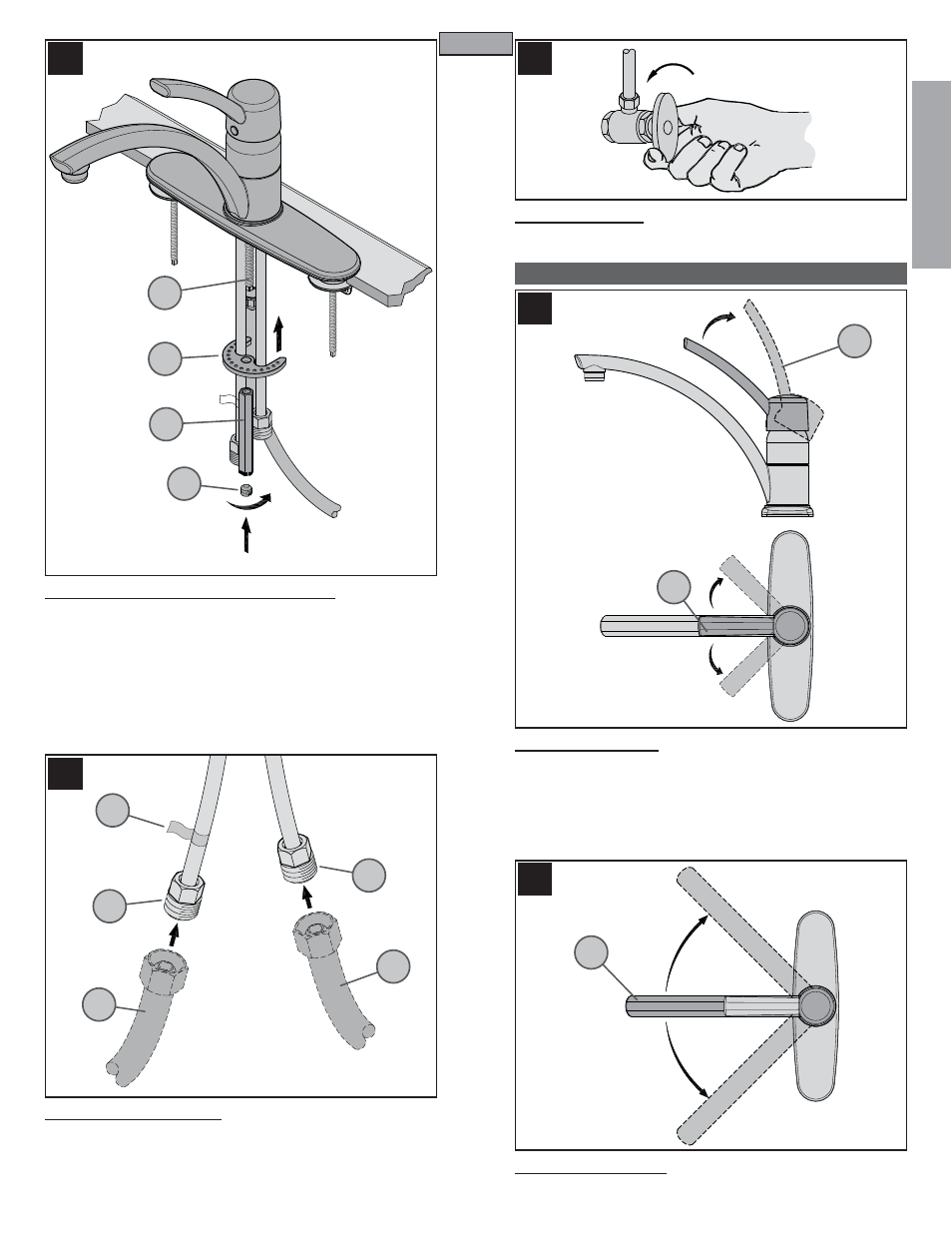

15 MOUNTING HARDWARE INSTALLATION
From underneath sink, secure the faucet by placing the Metal Washer (15A) and
the Long Nut (
7 /
16
Hex.) (15B) onto the Mounting Post (15C). Make sure that
the bumps on the Metal Washer (15A) are facing up. Tighten using a fl athead
screwdriver or an adjustable wrench until the faucet is fi rmly connected to the
sink. Secure connection by screwing the Setscrew (15D) onto the Long Nut
(15B). Do not over tighten!
16 WATER SUPPLY LINES
Gently separate hot and cold Faucet Inlets (16A), approximately three inches
apart. Connect water Supply Lines (16B) to Faucet Inlets (16A). Hot water supply
line goes to hot inlet fi tting indicated by red tag (16C). (Supply lines not included).
Follow manufacturer’s instructions when installing supply lines.
17 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below the sink.
FAUCET FUNCTIONS
18 VALVE FUNCTION
By lifting the Lever Handle (18A) up, the valve will be activated allowing water to
fl ow. The water fl ow will increase by continuing to lift up the Lever Handle (18A).
By rotating the Lever Handle (18A) counterclockwise, the water temperature
will decreased to fully cold. By rotating the Lever Handle (18A) clockwise, the
water temperature will increased to fully hot.
Note: Flush faucet before turning on valve (see step 21).
19 SPOUT FUNCTION
The Spout (19A) can be rotated around the Faucet Body in any direction.
5
ENGLISH
15B
15D
15C
15A
OPEN
CLOSED
HOT
COLD
18A
18A
16C
16A
16B
16A
16B
19A
HOT
COLD
