RDY

2

1

SET

Seven-segment
alphanumeric display:

• Shows process value,

set point information, time, or

• Shows prompt name or value,

depending on the key
combination pressed.

Set Key:

ß

• Configurable to shift between

normally-displayed value and set
values. See

[dISP]

, p.18.

• Clears a latched alarm.

LED 1:

Lit when Output 1 is active.

LED 2:

Lit when Output 2 is active.

RDY:

Lit when the process temperature
is inside the timer ready band.

Up /

.

(Increment)

Down /

,

(Decrement) Arrow Key:

• Selects new information when Set

Key is pressed.

• Steps through software menus and

parameters.

• Starts and stops the timer.

• To set up the control, go to the

Easy Software Map, p. 11.

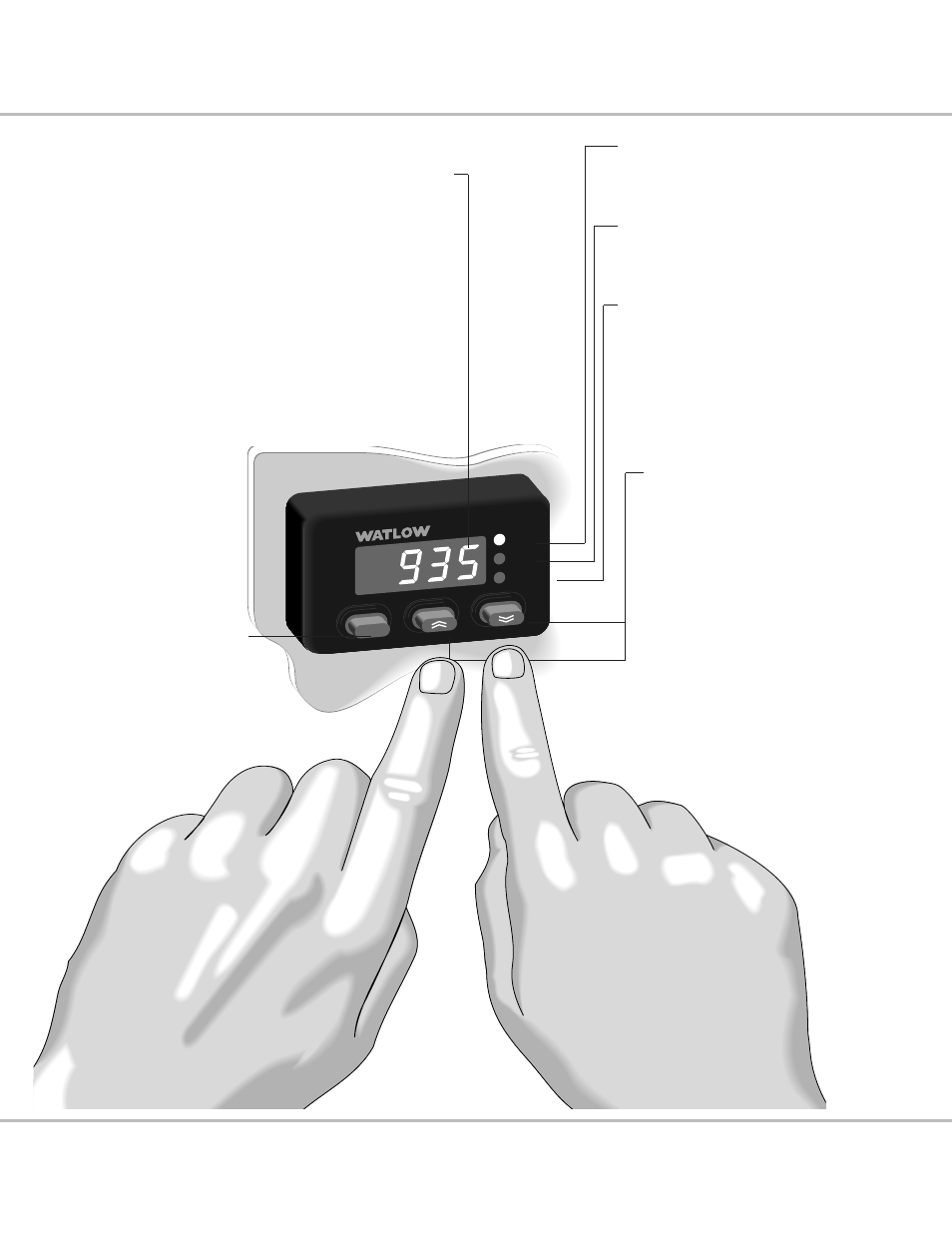

Figure 2 - Series 935B Front Panel Functions

Watlow Series 935B User’s Manual 7
