40 Watlow Series 935B User’s Manual
0.874"
(22.2mm)
+0.012",
-0.000"
(+0.3mm,
-0.0mm)
0.500"
(12.7mm)
0.500"
(12.7mm)
2.272"
(57.7mm)
1.374"
(34.9mm)
1.772" (45.0mm)
+0.024", -0.000"
(+0.6mm, -0.0mm)
Panel Thickness
0.060" to 0.38" (1.5 mm to 9.7 mm)
Layout for
four 1/32 DIN knockouts
with punch and die
Mounting

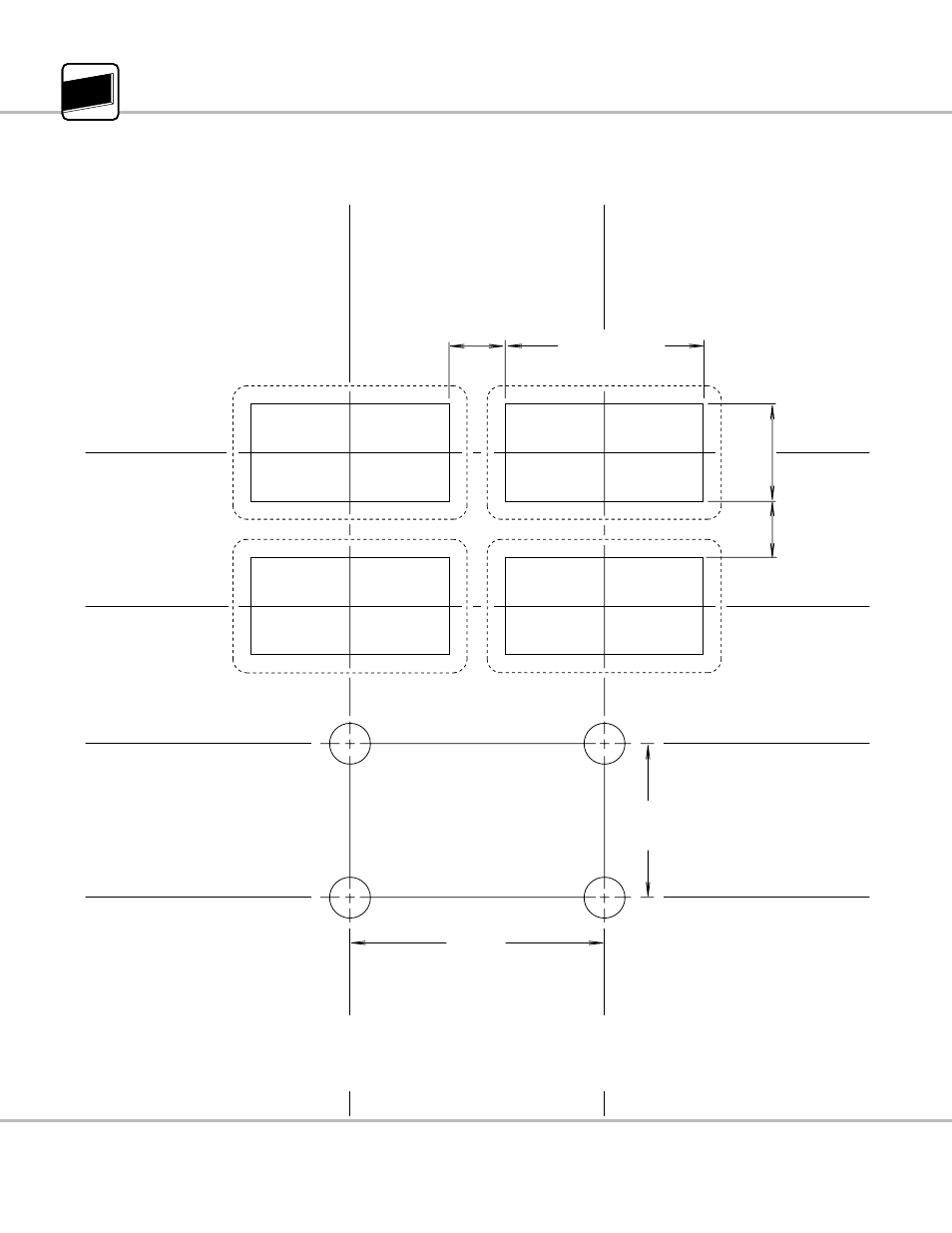

Figure 9- Panel Cut-out Dimensions
Figure 10- Mounting Layout for Knockouts
Punch and Die Supplier
Greenlee Textron, Inc., Phone: 1-800-435-0786.
Catalog Number: 50740180; Available: 4-6 weeks, Greenlee distributor.
