Appendix C

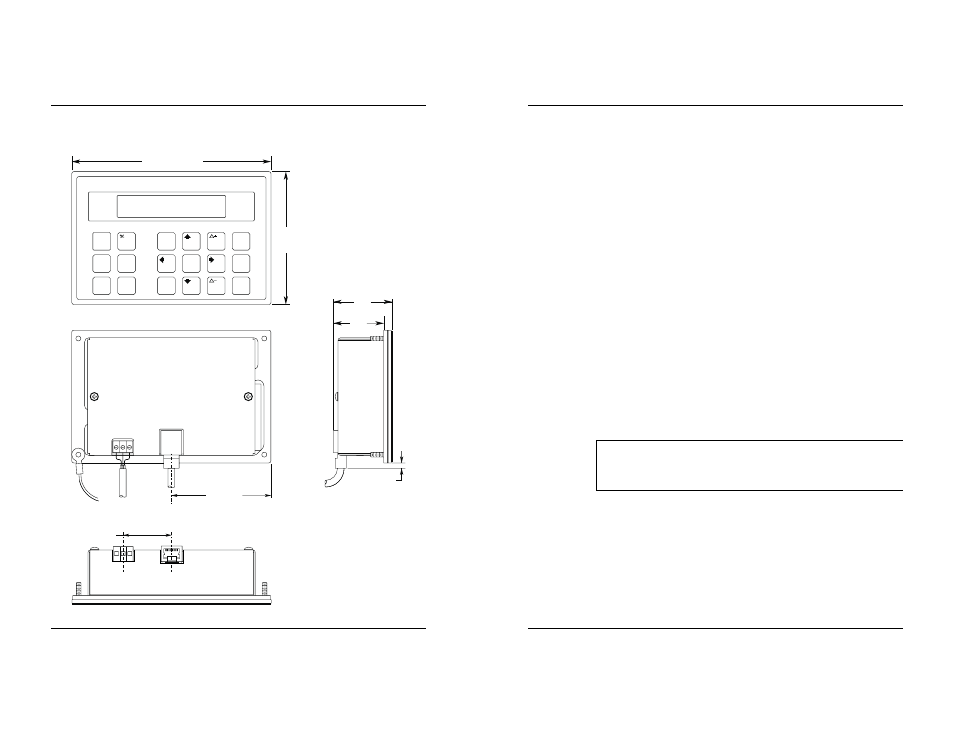

Dimensional Outline
18 OIT3160B/4160B
1010-0105, REV 03
REAR VIEW
SIDE VIEW
4.00
[101.2]
6.00 [152.4]
FRONT VIEW
2
5
Alarm
8
1 F4 F1
F3 F6
F2 F5
7
Help
4
Ack
Del Toggle
0 3
CLEAR
ENTER
9
6
Page
Down
BOTTOM VIEW
CL
3.00 [76.2]
[40.6]
1.60
0.16 [4.1]
[45]
1.77
1.46 [37]
INSTALLATION MANUAL 3
1010-0105, REV 03
Read Me First!
Your new Maple Systems OIT comes from the factory without any
communications protocol or operational software installed; therefore
• The OIT will NOT operate until it has been configured using
OITware-200 or STEPware-100.
• When power is first applied, the OIT’s display will indicate that it
needs to be configured.
• Use the OITware-200 or STEPware-100 software to create a file
(or “project”) that can be downloaded to the OIT.
• When the project is transferred, both communications protocol
and operational software are automatically loaded and the unit is
ready for operation.
To ensure that the OIT meets UL and CE compliance, it is
necessary to follow all installation procedures described in this
manual.
