Version 4.2/April 2005 Page 17
PCXZinstall
System Installation
Dispenser & Reader Specific Installation
Tokheim DPT
Note all warnings at the beginning of installation section.
Instructions for DBox installations in this manual are for the specific DBoxes supplied by dispenser manufacturers. If using DBoxes
supplied by Progressive International, refer to the Installation Guide which accompanies PIE’s DBox.
Minimum dispenser software level supported is JP020800.
Following instructions on preceding pages of installation section of this manual, install PCXZ,
configurator box(es) and dispenser. After successfully testing the dispensers using the PCXZ system,
then follow these specific instructions for connecting the Tokheim reader. See Diagram: PCXZ to Tokheim
Dispenser/DPT which follows.
1. Locate the DPT connector on the PIE dual Tokheim configurator box. Plug the appropriate
cable supplied by PIE into this connector and wire the other end into the Tokheim 69
distribution box. Connect all the existing Tokheim DPT’s into the Tokheim 69 DPT DBox.
2. Return to the PCXZ Installation Section for remaining system installation procedures.

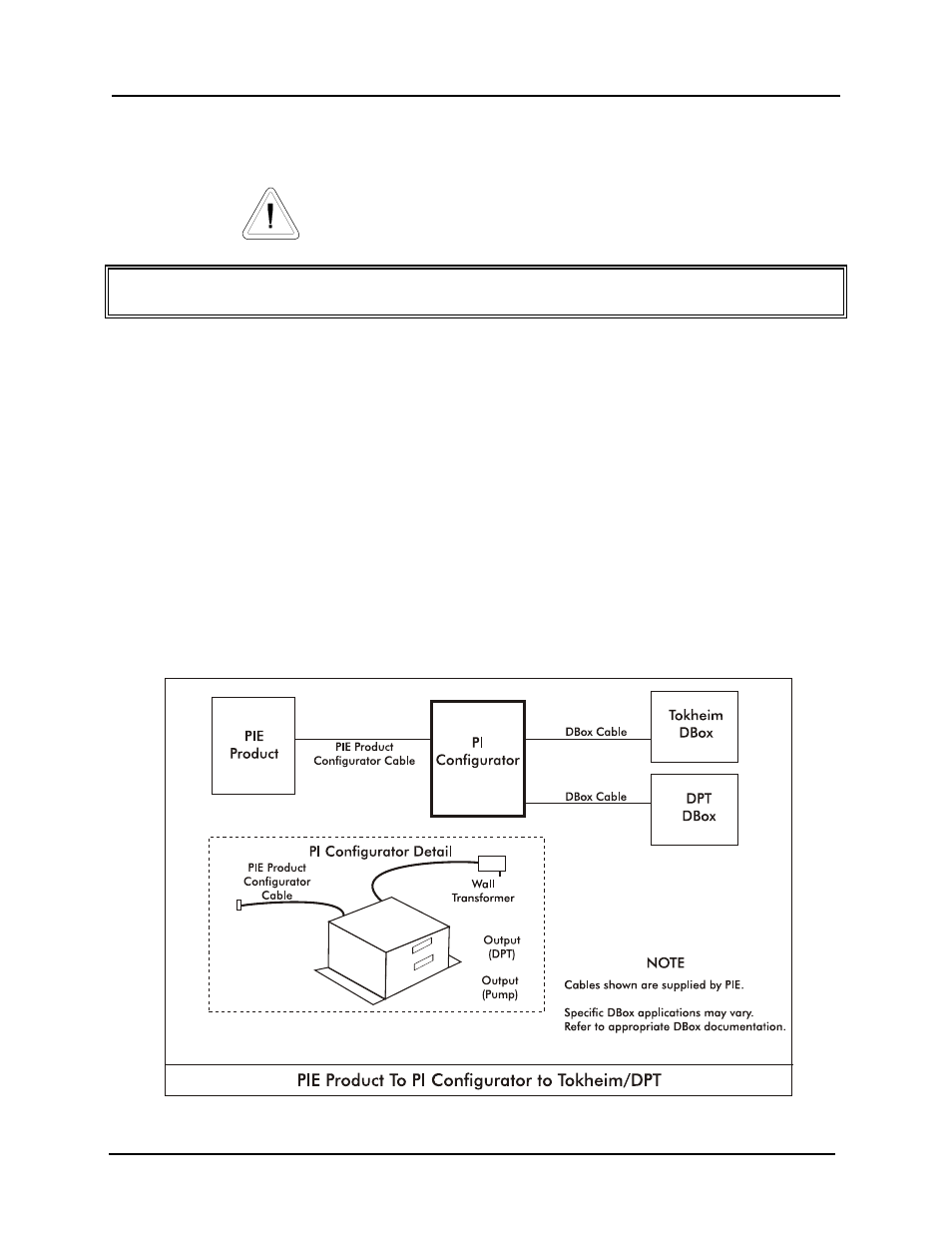

Diagram: PCXZ to Tokheim Dispenser/DPT
