WARRANTY and CAUTIONS
Standard ROSS warranty and cautions apply, available upon request or at www.rosscontrols.com
Printed in the U.S.A. – Rev. 5/10 © 2010 ROSS CONTROLS ® . All Rights Reserved. NPS011

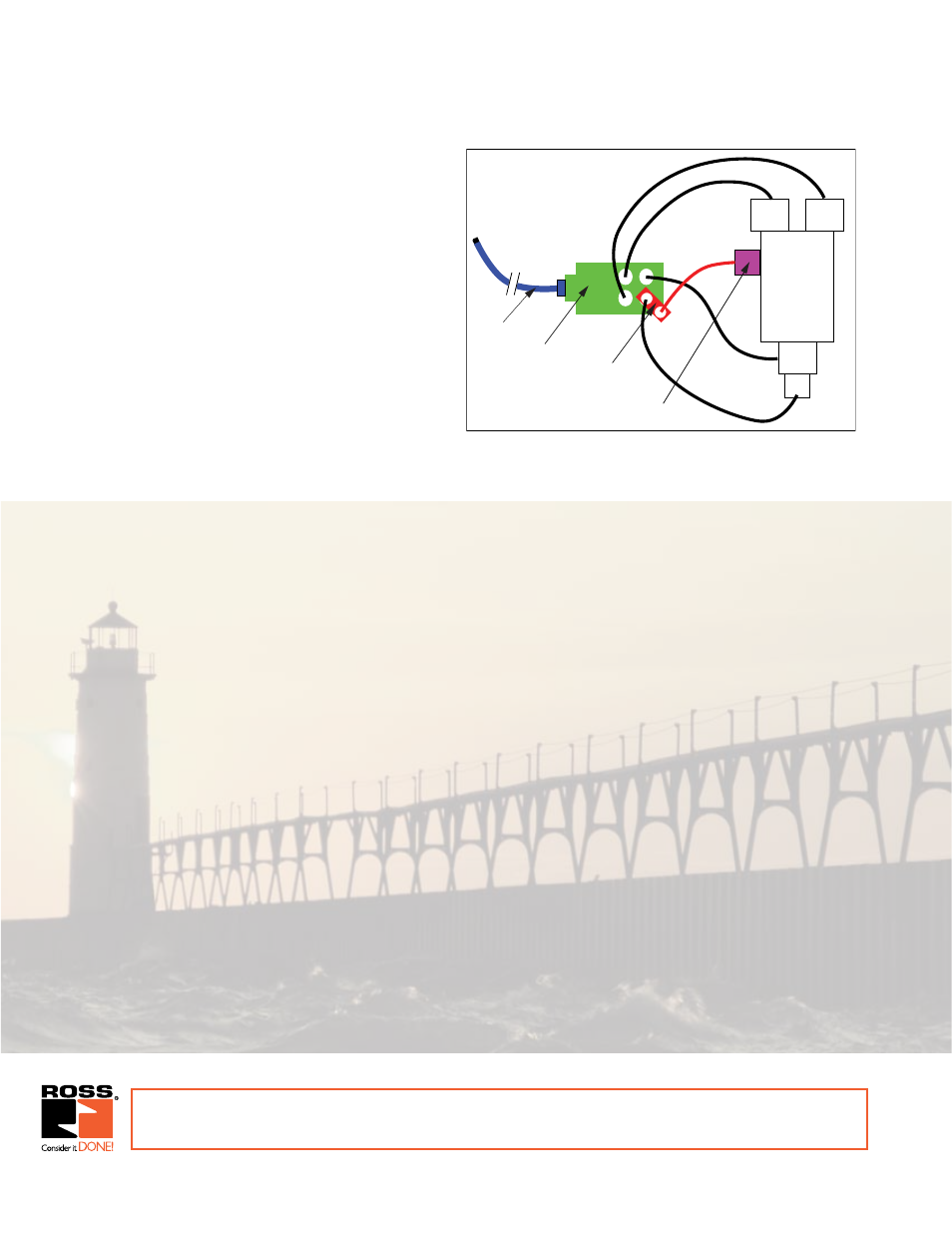

Example of Connecting a DM 2® Series valve with a J-BOX Kit and
an Outlet Port Monitoring Kit.
2249H77
J-Box and 4 cables (M12 to DIN) - 1 meter length.
2254H77
10-pin cable - 20 foot length.
2251H77
Port splitter and 1 cable (M12 to DIN) - 1 meter length.
(aka - Outlet Port Pressure Monitoring Wiring Kit)
586A86
Pressure switch for outlet port pressure monitoring.
20 ft
Pressure
Switch
(outlet
port)
Sol.
B
Sol.
A
Reset
Status
Indicator
1
2
3
4
Splitter plugged
into port 1
10-pin cable
J-Box
Port splitter and
1 cable
Pressure switch
Since 1921 ROSS CONTROLS ® has been manufacturing the highest quality
pneumatic valves. Founded by three families and still privately held, Ross has grown
from a small Michigan valve company into a company with global subsidiaries and
distribution throughout the world. It is this global presence that allows Ross to focus
on specific industries and provide the global support required in our integrated world.
Ross continues to lead in industries such as safety by providing products to meet the
specific requirements of those industries as well as the global standards.
For over 60 years Ross has produced redundant monitored valves for safety
applications. The DM2
® Series C and Series E are our latest control-reliable valve
series that are third party certified for category 3 and 4 applications. Our SV series
is third party certified for category 2 and 3 applications. 2008 marked the 46th
anniversary for our pneumatic energy isolation L-O-X
® valve series. All of our safety
products meet or exceed the global safety requirements for machine safeguarding
and energy isolation. Our global safety team can assist with system and product
selection and provide solutions that help customers standardize globally.
