DM

2

®

Series C

Control Reliable

Double Valve

with

Dynamic Monitoring & Memory

www.rosscontrols.com

New Product

Introduction

Size 4, 8, 12 and 30

• Dynamic Monitoring With Memory: Memory, monitoring, and air flow control functions are integrated into two identical
valve elements. Valves lockout if asynchronous movement of valve elements occurs during actuation or de-actuation,
resulting in a residual outlet pressure of less than 1% of supply.
• An action is required for reset – cannot be reset by removing and re-applying supply pressure. Reset can only be
accomplished by the optional integrated electrical (solenoid) reset.
• Basic 3/2 Normally Closed Valve Function: Dirt tolerant, wear compensating poppet design for quick response
and high flow capacity. Teflon back-up rings on pistons to enhance valve endurance – operates with or without inline
lubrication.
• Status Indicator (Optional): Includes a pressure switch with both NO & NC contacts to provide status feedback to
the control system indicating whether the valve is in the lockout or ready-to-run condition. The Status Indicator can
be ordered installed or purchased separately and added to any DM

Series C base.

• Silencers: All models include high flow, clog resistant silencers.
• Mounting: Base mounted – with BSPP or NPT pipe threads. Inlet and outlet ports on both sides provide for flexible
piping (plugs for unused ports included). Captive valve-to-base mounting screws.

Size 12 and 30

• Intermediate Pilots: Increase pilot air flow for fast valve response and make it possible to use the same size solenoids
as valve sizes 4 & 8, thereby reducing electrical power requirements for these larger valves.

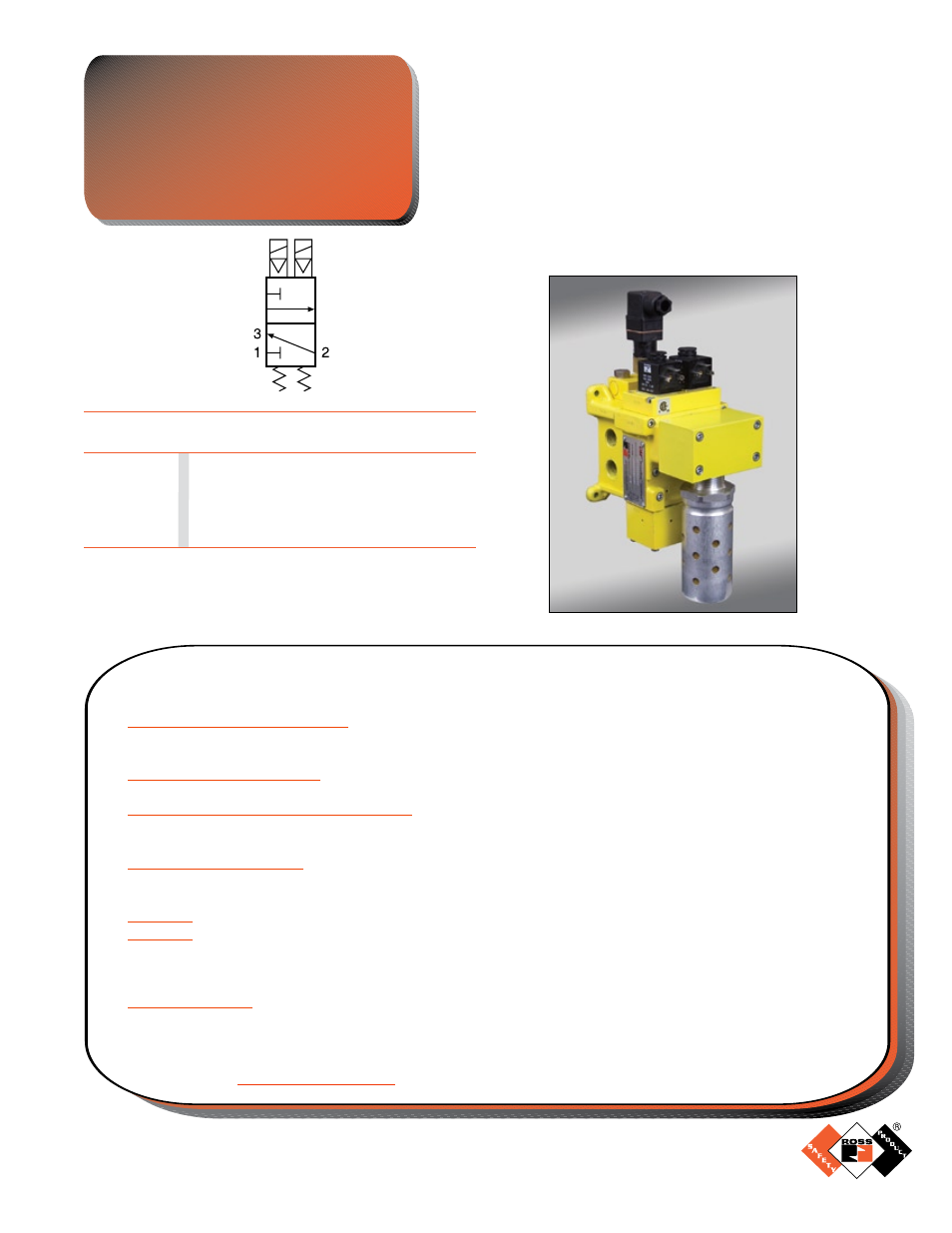

FEATURES:

Simplified

Schematic

APPLICATIONS:

Category 4 applications - e.g. Air Dump/Release

Sizes 4, 8, 12 and 30

Valve

Port Size

C

V

Weight

Size Model Number* Inlet Outlet 1 to 2 lb (Kg)

4

DM2CNA42**21 1/2 1/2

3

5.9 (2.6)

8

DM2CNA54**21 3/4 3/4

4.4 8.4 (3.7)

8

DM2CNA55**21

1 1

4.4 8.4 (3.7)

12

DM2CNA66**21

1 1

8.5 15.3 (6.7)

30

DM2CNA88**21 11/2

2

22 34.7 (15.1)

* NPT port threads. For BSPP threads , replace “N” in the model

number with a “D”.

** Insert voltage code:

“A” = 24 volts DC, “B” = 110 volts AC, “C”*** = 220 volts AC.

** 220 volts AC not available in the U.S. (OSHA regulations limit press

control voltage to no more than 120 volts AC.
