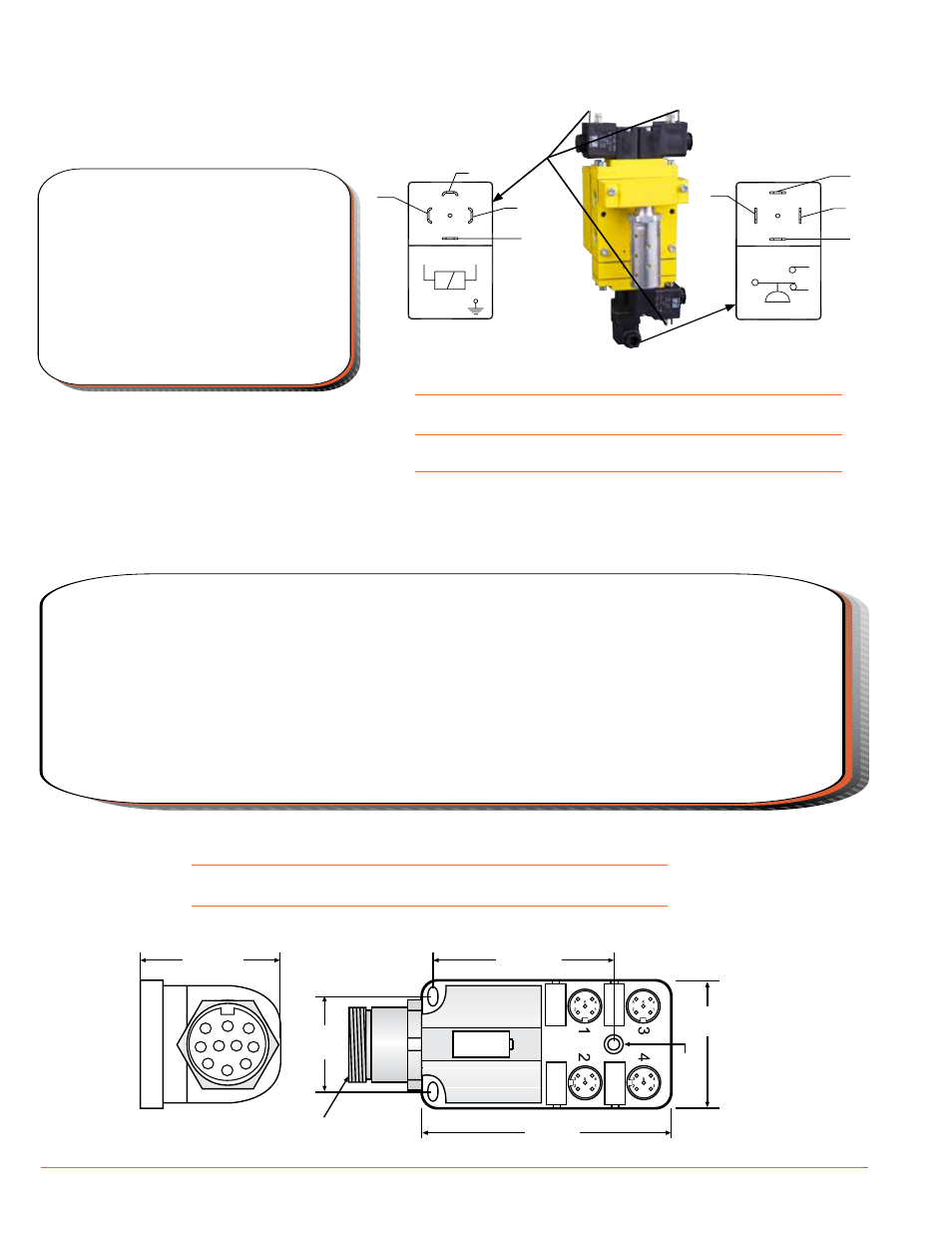

DM

Series Wiring Kits

Standard Wiring Kits

Wiring Kits with J-Box

Kit Number

Solenoid Connector Type

Length (meters)

2283H77

DIN

5

2284H77

DIN

10

2288H77

M12

5

2289H77

M12

10

Kit Number

Solenoid Connector Type

Length (meters)

2249H77

M12 - DIN

1

2250H77

M12 - M12

1

Kits include three cables for the solenoids
and one cable for the status indicator. All
cables come with a cord grip. Solenoid
cables come with either DIN or M12
connectors. They are available in lengths
of 5 or 10 meters.
(Note: Each cable has one connector.)

DESCRIPTION:

A J-Box is a junction box with a 10-pin MINI connector for connecting to the user’s control system and (4) 5-pin M12
ports for connecting to the 3 solenoids and the status indicator on the DM

Series valve. The J-Box kits include

the J-Box as described above and (4) 1-meter cables for connecting to the valve. These cables have a connector
on each end. The status indicator cable and the (3) solenoid cables have an M12 connector on one end and a DIN
connector on the other end (M12-DIN). Standard valves come with DIN type solenoid connections, but could be
bought with M12 type connections as well. Therefore we also offer a kit that provides solenoid cables with an M12
connector on each end (M12-M12).

3.9 (100)

2.90 (73.6)

dia.

0.18

[4.5]

2.0

(51)

1.41

(35.9)

1.125 - 16UN2A

1.85 (46.9)

1

2

10

3

4

5

9

8

7

6

DESCRIPTION:

2

ROSS CONTROLS

®

BLUE
PIN 2

GRN/YEL
GROUND

NOT USED

BRN

BLUE

GRN/YEL

BRN
PIN 1

BRN

GRY

GRN/YEL
GROUND

BLK

1

BRN

3 BLK

2 GRY

1

2

3

4

Solenoid Cables

with DIN Connector

Status Indicator Cable

with DIN Connector
