SaltDogg LS10 Liquid Spay System User Manual
Page 5
5
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (800) 841-8003
www.saltdogg.com
7. Secure retainer using 1/2 inch flat washers and nylon insert nuts FIG 8.
SECURE RETAINER USING 1/2 INCH WASHERS AND NUTS.
Fig. 8
8. Weld enclosure bracket #3028485 in desired location based on Installation A or B style. If space is
limited custom bracket fabrication is necessary.
9. If jack handle is rubbing against tank or other obstacle, it can be relocated using supplied handle
guide #3026823. To relocate handle it must be disassembled from jack, pass thru handle guide and
reassembled to jack FIG 9. After these operations, handle guide can be positioned and welded in
new location. Make sure that jack is operating freely after handle reposition!

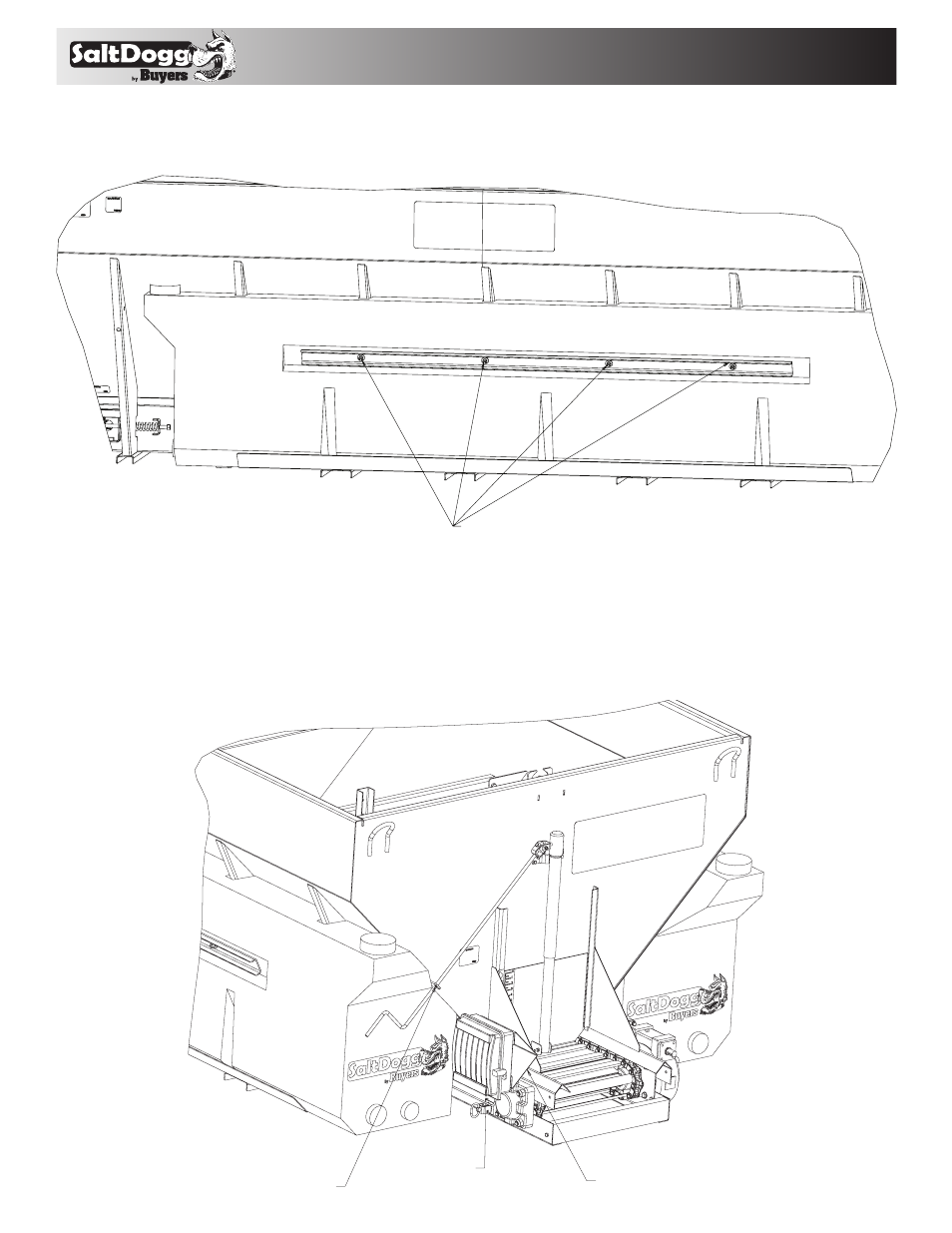

ATTACH ENCLOSURE BRACKET.
DIFFERENT LOCATIONS CAN BE USED.
ATTACH ENCLOSURE TO
BRACKET
JACK HANDLE CAN BE
REPOSITIONED USING SUPPLIED
HANDLE GUIDE #3026823
