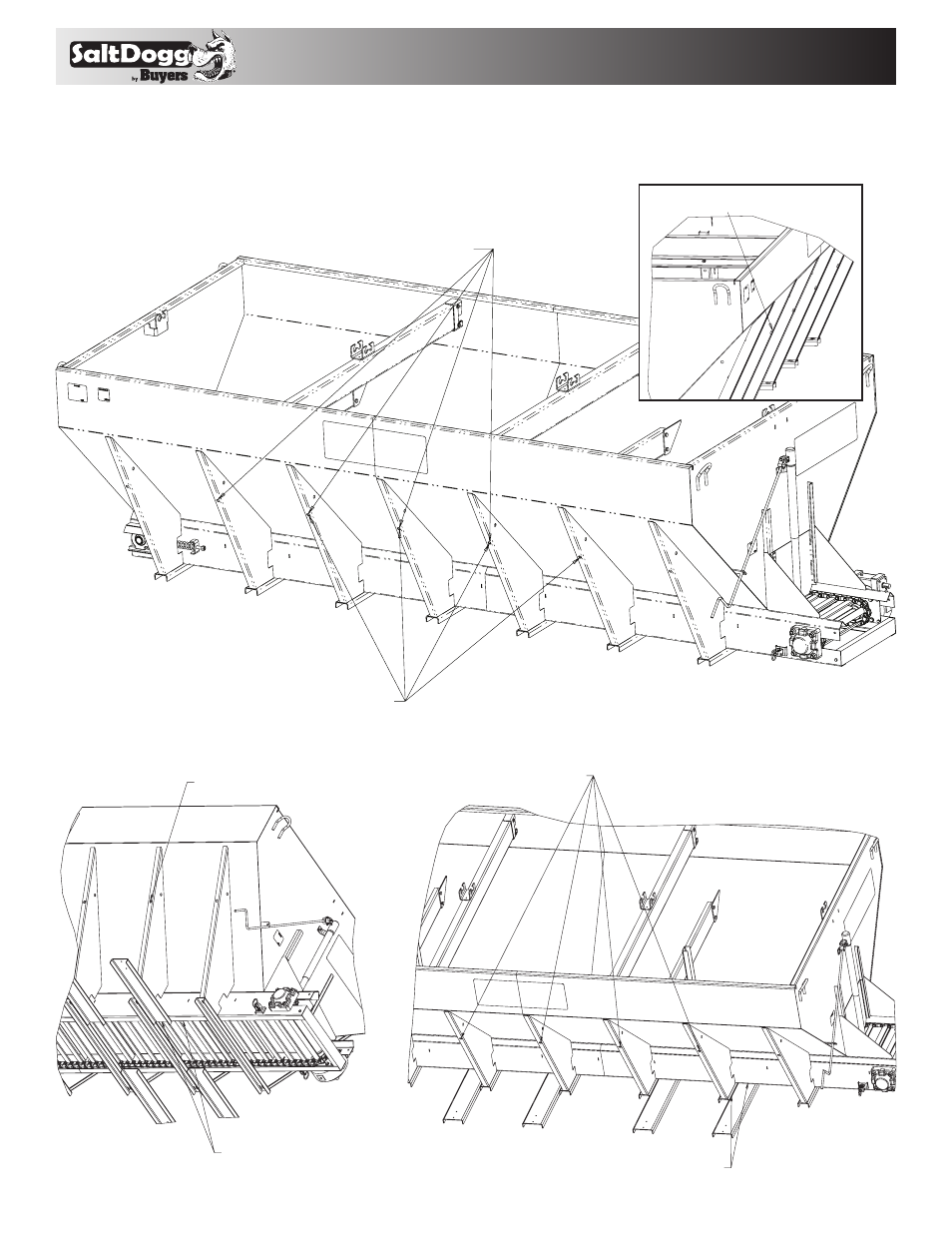

1. Position 1/2-13 projection weld nuts on inside gusset surface and weld them as shown in FIG 1
and FIG 2. Follow welding order for Installation A or Installation B.
WELD PROJECTION WELD NUTS IN THESE LOCATIOS
FOR INSTALLATION B
WELD PROJECTION WELD NUTS IN THESE LOCATIONS
FOR INSTALLATION A
Fig. 1
2. Align channels #3026808 to hopper sill bottom edge and clamp to hopper cross channels. See
FIG 3 for channels positions and welding recommendations.
ALIGN NUT IN THE HOLE. WELD AROUND NUT.
PROTECT THREAD FROM WELDING.
Fig. 2
ALIGN CHANNEL EDGE WITH
SILL EDGE. CLAMP CHANNELS
IN THIS POSITION
REAR MOST NUT
WELD CHANNEL TO HOPPER
IN SHOWN LOCATIONS
WELDED NUTS
Fig. 3
