SaltDogg LS10 Liquid Spay System - Manual (Page 10)

10
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (800) 841-8003
www.saltdogg.com
ITEM PART NO. QTY. DESCRIPTION
1 LS102 1 ENCLOSURE ASSY, WETTING SYST
2 3012164 1 PLUG, SQUARE HEAD, 3/4 NPT
3 3000269 12 WASHER, FLAT 1/2 USS, SST
4 WSE15 2 RUBBER, NOZZLE
5 FWL050088013SS 3 WASHER, LOCK - 1/2 SPLIT SST
6 FNH050013041HSS 3 NUT, 1/2-13 HEAVY HEX, SST
7 3026538 2 TANK 400 GAL POLY
8 3026808 8 CHANNEL
9 3026807 2 RETAINER
10 3026587 8 TREADED ROD 1/2-13 SST
11 3026545 2 RETAINER, UPPER
12 3014454 8 NUT, 1/2-13 PROJECTION WELD SST
13 FNE050013053SS 8 NUT, NYLOCK 1/2-13 SS
14 3026823 1 GUIDE, HANDLE JACK
15 3028485 1 BRACKET, ENCLOSURE
WSE2 4 NIPPLE, HEX 3/4 X 1/2 POLY

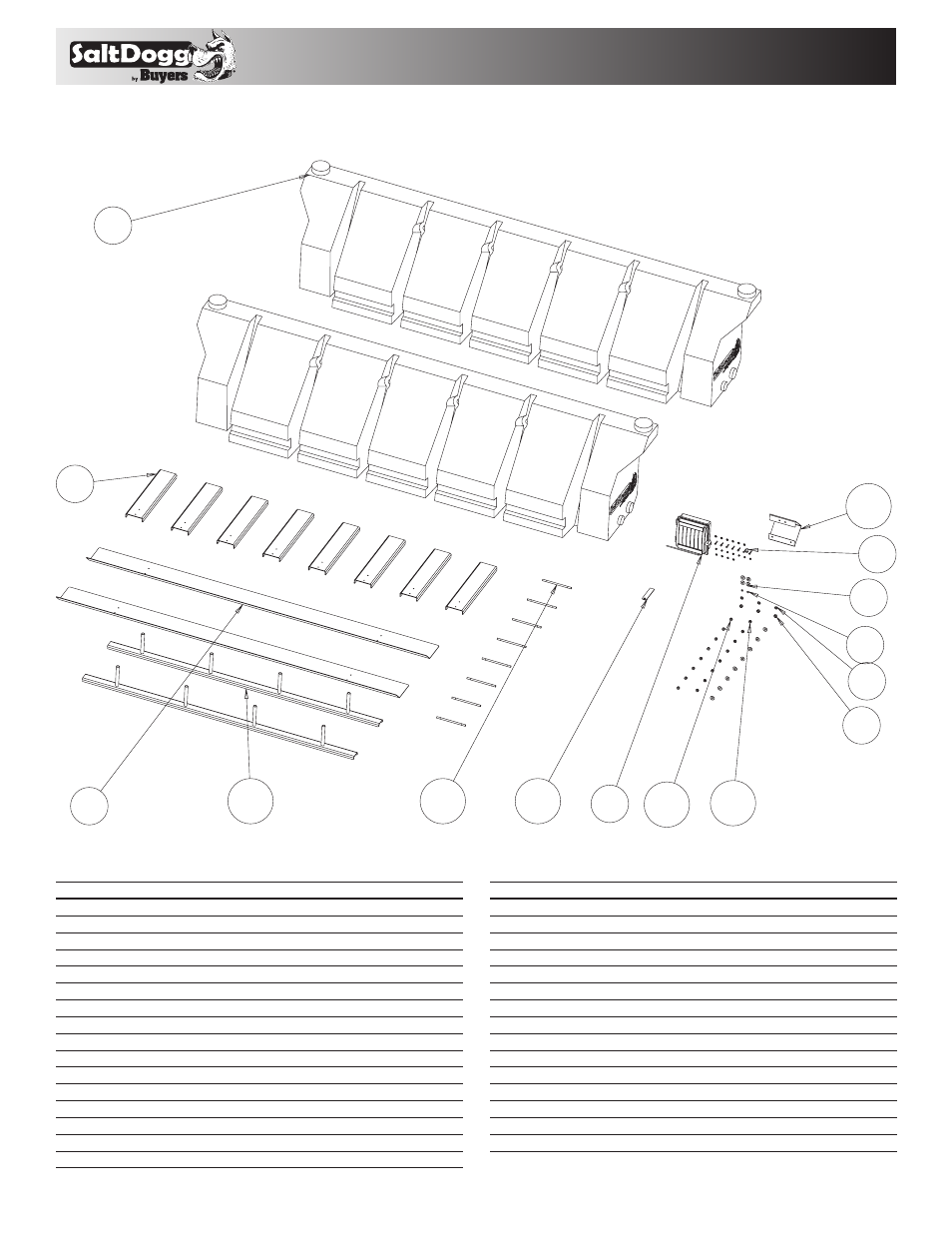

Bill of Materials
LS10
1
2
3
4
5
6
7
8
9
10 11 12 13 14
15
ITEM PART NO. QTY. DESCRIPTION
WSE7 2 NOZZLE BODY, BRASS
WSE9 10 CLAMP, HOSE
WSE10 2 VALVE BALL, 1/2 NPT, POLYPROPYLENE
WSE11 2 FILTER, 3/4 NPT, 6 GPM, 300 MICRON,POLY
WSE13 2 ELBOW, BRASS 1/4 NPTF X 1/4 NPTF
WSE14 2 NOZZLE CAP
WSE24 1 HARNESS, WIRE W/ CONNECTOR 8 FT
WSE30 2 BARB,HOSE 3/4 MNPT X 1/2 HB
WSE696 1 HOSE POLY 1/2 X 96 IN
3000165 1 LABEL, 1" X 3" ADHESIVE
3009750 1 DECAL, LIQUID SYSTEM
WSE1 1 CONTROLLER, WET SPRAY SYSTEM
WSE33 6 BARB,HOSE 1/4 MNPT X 1/2 HB, BRASS
WSE34 2 TEE,1/4 FNPT X 1/4 FNPT X 1/4 FNPT,BRASS
WSE6168 1 HOSE POLY 1/2 X 168 IN
