1 1411902 1 STAND, ENGINE MOUNT
2 4 WASHER, LOCK, 5/16”
3 4 NUT, 5/16 SAE
4 4 WASHER, FLAT, 5/16”
5 4 SCREW, HHC, 5-16-18X 1.5 GR5
6 1410709 1 THROTTLE MOTOR ASSEMBLY
7 1411911 1 RETAINER, THROTTLE MOTOR BRKT
8 2 WASHER, FLAT, 1/4 SAE
9 1411915 1 SPROCKET, ENGINE DRIVE
10 KS402 1 KEY, 1/4” X 2”
11 1306070 1 SOLENOID
12 2 NUT, HEX, 1/4-20
13 2 WASHER, LOCK, 1/4”
14 2 SCREW, HHC, 1/4-20 X 3/4” GR 5
ITEM PART NO. QTY. DESCRIPTION

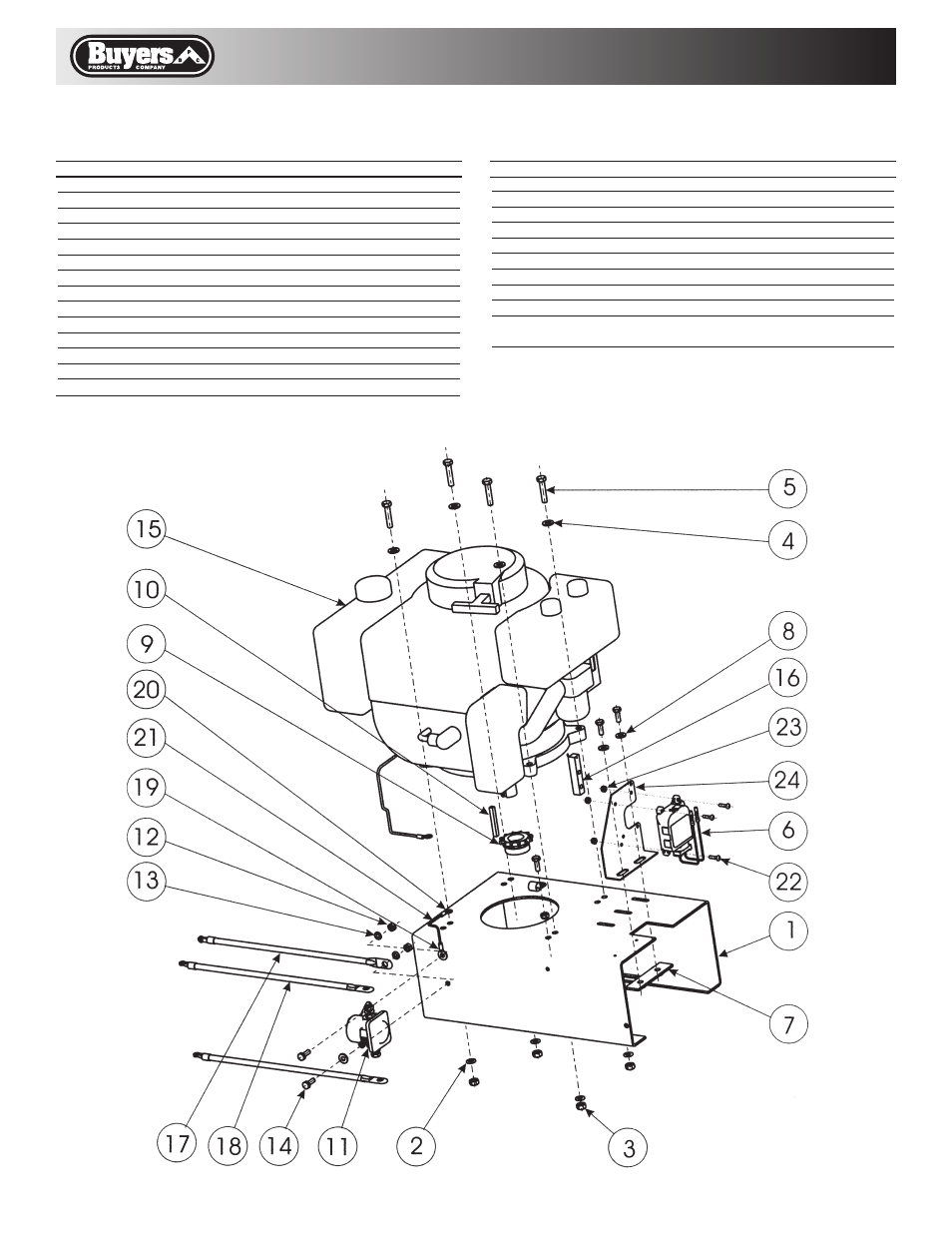

R Re ep pa aiirr P Pa arrtts s -- E En ng giin ne e S Su ub ba as ss se em mb blly y
15 3005709 1 ENGINE, GAS 10 HP TECUMSEH
16 1411910 1 THROTTLE PIN ASSEMBLY
17 3001378 1 CABLE, BATTERY, 14” (BLACK)
18 3001379 2 CABLE, BATTERY, 14” (RED)
19 1401153 1 TERMINAL, 1/4” RING
20 1430033 2 TERMINAL, 5/16 RING
21 RED WIRE, 16 GA
22 3 SCREW, #8-32 X 5/8 MACHINE, PAN HD
23 3 NUT, #8-32 NYLOCK
24 1410714 1 BRACKET, THROTTLE CONTROL
TECUMSEH 10 HP
ITEM PART NO. QTY. DESCRIPTION
