1 3001306 1 CHUTE HOUSING SUBASSEMBLY-STD CS
1 3001405 1 CHUTE HOUSING SUBASSEMBLY-EXT CS
1 3002114 1 CHUTE HOUSING SUBASSEMBLY STD SST
1 3002120 1 CHUTE HOUSING SUBASSEMBLY EXT SST
2 FPC007800075 1 COTTER PIN, 5/64 X 3/4
3 1420014 1 CLEVIS SHEAR PIN, 1/4 X 2-1/2
4 3004611 1 SPINNER DISC 11.5 DIA. POLY
5 1420015 3 CONTROL ROD
6 FPC013000100 1 COTTER PIN, 1/8 X 1
7 4 H. HEAD CAP SCREW 3/8-16 X 3/4 GR5
7 4 HEX NUT 3/8-16
7 4 3/8 FLATWASHER
7 4 3/8 LOCKWASHER
8 1420016 3 HAIRPIN COTTER, 3/32 X 2
9 1420018 2 LYNCH PIN, 3/8 X 1-3/4

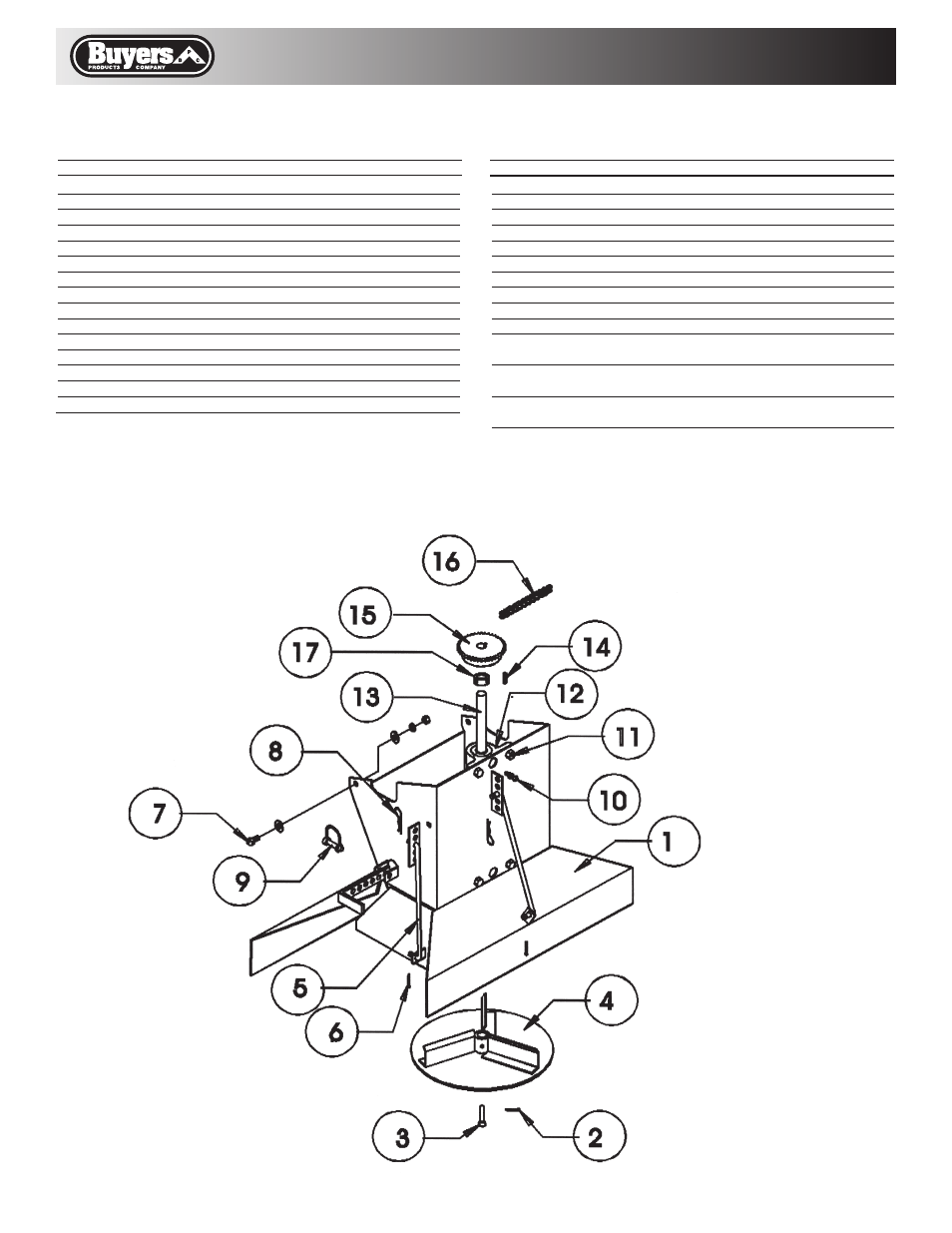

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
R Re ep pa aiirr P Pa arrtts s -- S Sp piin nn ne err//C Ch hu utte e A As ss se em mb blly y
10 2 GREASE FITTING #400
11 4 H. HEAD CAP SCREW, 3/8-16 X 3/4, GR5
11 4 3/8 FLATWASHER
11 4 3/8 LOCKWASHER
12 1420101 2 PILLOW BLOCK BEARING, 3/4”
13 1420150 1 SPINNER SHAFT-STD
13 142X150 1 SPINNER SHAFT-EXT
14 KS301 1 KEY, 3/16” SQUARE X 1”
15 1420004 1 SPROCKET, 24 TOOTH W/ SET SCREW
16 1410711 1 ROLLER CHAIN, #40, W/ 80 LINKS
17 3002225 1 COLLAR, .75 DIA LOCK WITH TWO SET
SCREWS,3/16 KEYWAY
141055K 1 KIT,STD LG , SHAFT, BEARING,SPROCKET,
SPINNER DISK, & HDW
141065K 1 KIT EXT LG,SHAFT, BEARING, SPROCKET,
SPINNER DISK, & HDW
