SaltDogg TGS06 Salt Spreader - Manual (Page 7)

7
TM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
12
15
12
12
15
13
12
14
13
12
12 14
12
14
(Inside
Hopper)
(Inside
Hopper)

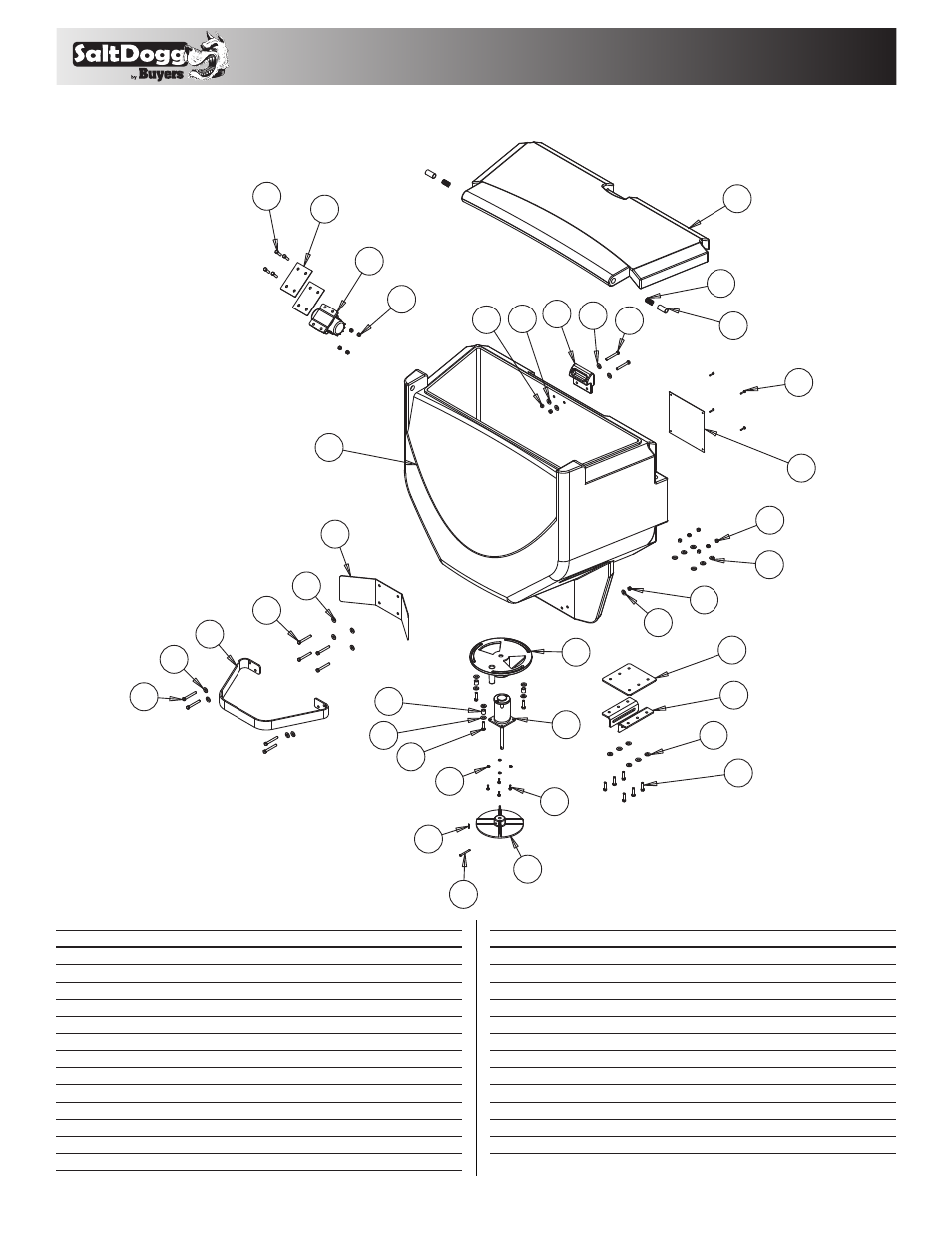

Bill of Materials
1 3010963 1 Hopper TGS06
2 3010965 1 Bumper TGS06
3 3009320 1 Motor, 12 VDC, 1000 RPM, 1/8 HP
4 3009323 1 Flowgate
5 3009404 1 Handle Hold Down
6 3009874 1 Plate Mounting
7 3009311 2 Mounting Bracket Hitch
8 3008076 1 Vibrator 80 lbs. 12 VDC
9 3009312 1 Plate Cover
10 3008043 2 Plate Vibrator Kit SST
11 3010966 1 Shield TGS06
12 – 40 Washer, Flat 3/8 USS SST
13 – 11 Cap Screw, Hex HD-38-16 x 3 SST
item pArt no. qty. description
14 – 21 Nut, Nylock 3/8-16 x 7/16 SST
15 – 13 Screw, Hex HD Cap 3/8-16 x 1½ SST
16 – 4 Washer, 1/4" Split Lock SST
17 – 4 Screw Cap 1/4-20 x 3/4 SST
18 – 4 Screw, Sheet Metal #12x1.0 Hex Washer HD
19 3009319 2 Pin, Pivot Lid
20 3009324 2 Spring Pin Lid
21 3009317 3 Spring Gate TGS06
22 3010970 1 Spinner Poly TGS06
23 1420014 1 Pin Clevis, 1/4 x 2.5
24 – 1 Cotter Pin, 5/64 x 3/4
25 3010964 1 Lid TGS06
item pArt no. qty. description
Fig. 8
