3 6 0 0 - 2 9 - 1 3 - 1 5 A R R U
Series Drum Length
Flange Dia.
Hose ID
Hardware
Rewind Crank Orientation
Color
Hardware Codes
Carbon Steel (standard)
A Stainless Steel
Rewind Crank Orientation Codes
R Right Hand Inlet
L Left Hand Inlet
Color Codes
R Red
G Green
Inlet Position Codes
Down (standard)
U Up

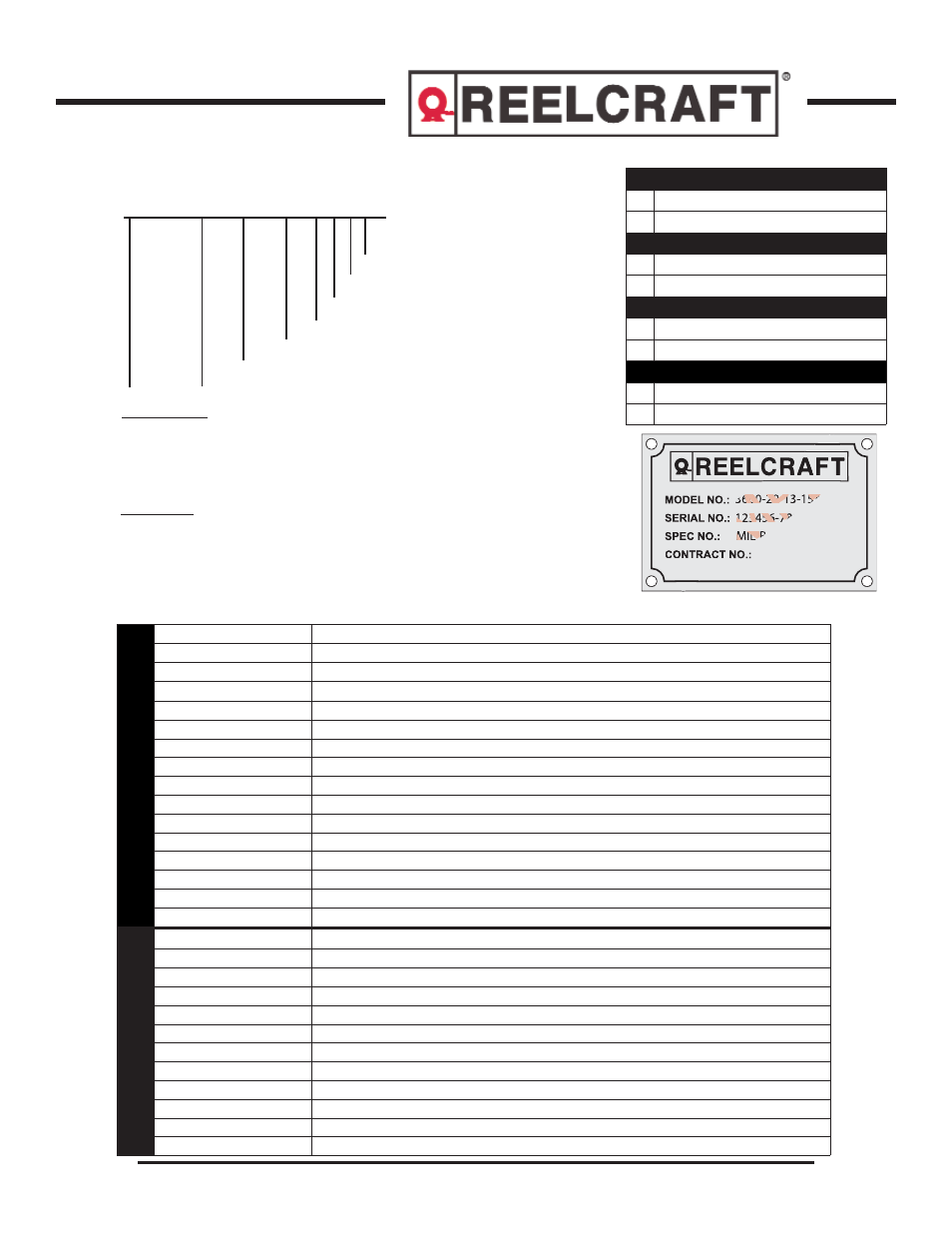

2.5.1 Reelcraft Hose Reel Part Number Designation
2.5.3 Major Components
Inlet Position
3600-29-13-15ARRU
123456-789-0
MIL-R-24414D
XXXXXX-XX-X-XXXX S SAMP SSAM S
E
MPLE
EE
PPL PLE
LE LE
PLE
600-29-13-15A
123456-78
MIL-R
Nameplates - A 2” X 3” stainless steel name plate may be found
on the lower right/left corner of the side frame (or on top plate of
guide roller if ordered as parts). It details Model #, Serial #, Mil-
Spec. # & Contract # if applicable (see sample).
Stenciling - Stenciling is provided on front tie plate of reels.
Unless otherwise specified at time of order it will include supplier
Cage Code, supplier part number & Reelcraft Cage Code.
2.5.2 Hose reel assembly, MIL-R-24414 (see Appendix B)
HOSE REELS
3600-29-13-15RR right hand rewind, red
3600-29-13-15RRU right hand rewind, red, inlet facing up
3600-29-13-15LR left hand rewind, red
3600-29-13-15LRU left hand rewind, red, inlet facing up
3600-29-13-15ARR stainless steel hardware, right hand rewind, red
3600-29-13-15ARRU stainless steel hardware, right hand rewind, inlet facing up
3600-29-13-15ALR stainless steel hardware, left hand rewind, red
3600-29-13-15ALRU stainless steel hardware, left hand rewind, red, inlet facing up
3600-29-13-15RG right hand rewind, green
3600-29-13-15RGU right hand rewind, green, inlet facing up
3600-29-13-15LG left hand rewind, green
3600-29-13-15LGU left hand rewind, green, inlet facing up
3600-29-13-15ARG stainless steel hardware, right hand rewind, green
3600-29-13-15ARGU stainless steel hardware, right hand rewind, green, inlet facing up
3600-29-13-15ALG stainless steel hardware, left hand rewind, green
3600-29-13-15ALGU stainless steel hardware, left hand rewind, green, inlet facing up
ACCESSORIES
340307-5BW red, bottom wind (type II)
340307-5ABW red, bottom wind, stainless steel hardware (type II)
340307-5 red, top wind (type II)
340307-5A red, top wind, stainless steel hardware (type II)
340307-5GBW green, bottom wind (type II)
340307-5AGBW green, bottom wind, stainless steel hardware (type II)
340307-5G green, top wind (type II)
340307-5AG green, top wind, stainless steel hardware (type II)
360700-75 1-1/2” X 75’ (23m) hose assembly and couplings
360700-50 1-1/2” X 50’ (15m) hose assembly and couplings
SFL-GN-125 brass nozzle with pistol grip - 125 GPM @ 100 PSI
SFL-GN-95 brass nozzle with pistol grip - 95 GPM @ 100 PSI
