Reelcraft AFFF Hose Reels MIL-R-24414-V-75 - Manual (Page 13)

10
8
7
4
3
11
3
1
11
3
5 5
3
12
2
5
10
6
4
3
9
EXP. NO.
REELCRAFT
WEIGHT HEAT TREAT FINISH MATERIAL
UNLESS OTHERWISE NOTED: DIMENSIONS ARE IN INCHES. TOL.=ANGLES ±2° CONC. .010 T.I.R. FRACTIONS REF. TO IND. STDS. REMOVE BURRS, BREAK SHARP CORNERS NOT TO EXCEED .015 MACH. SURFACES ARE
125 MAX
THIS MATERIAL IS OWNED BY REELCRAFT INDUSTIRES INC. AND IS NOT TO BE REPRODUCED OR DISTRIBUTED WITHOUT WRITTEN PERMISSION.
DRAWING TITLE REELCRAFT INDUSTRIES INC.
COLUMBIA CITY, IN 46725 U.S.A.
SIMILAR TO: DRAWING NO.
USED ON
NEXT ASS'Y
DRAWING NO.
SCALE MFG. APPROVAL ENG. APPROVAL CHECKED BY DRAWN BY
NOTED NOTED NONE 49 LBS
1:3 C DWT EL
W
JLB 7/5/06

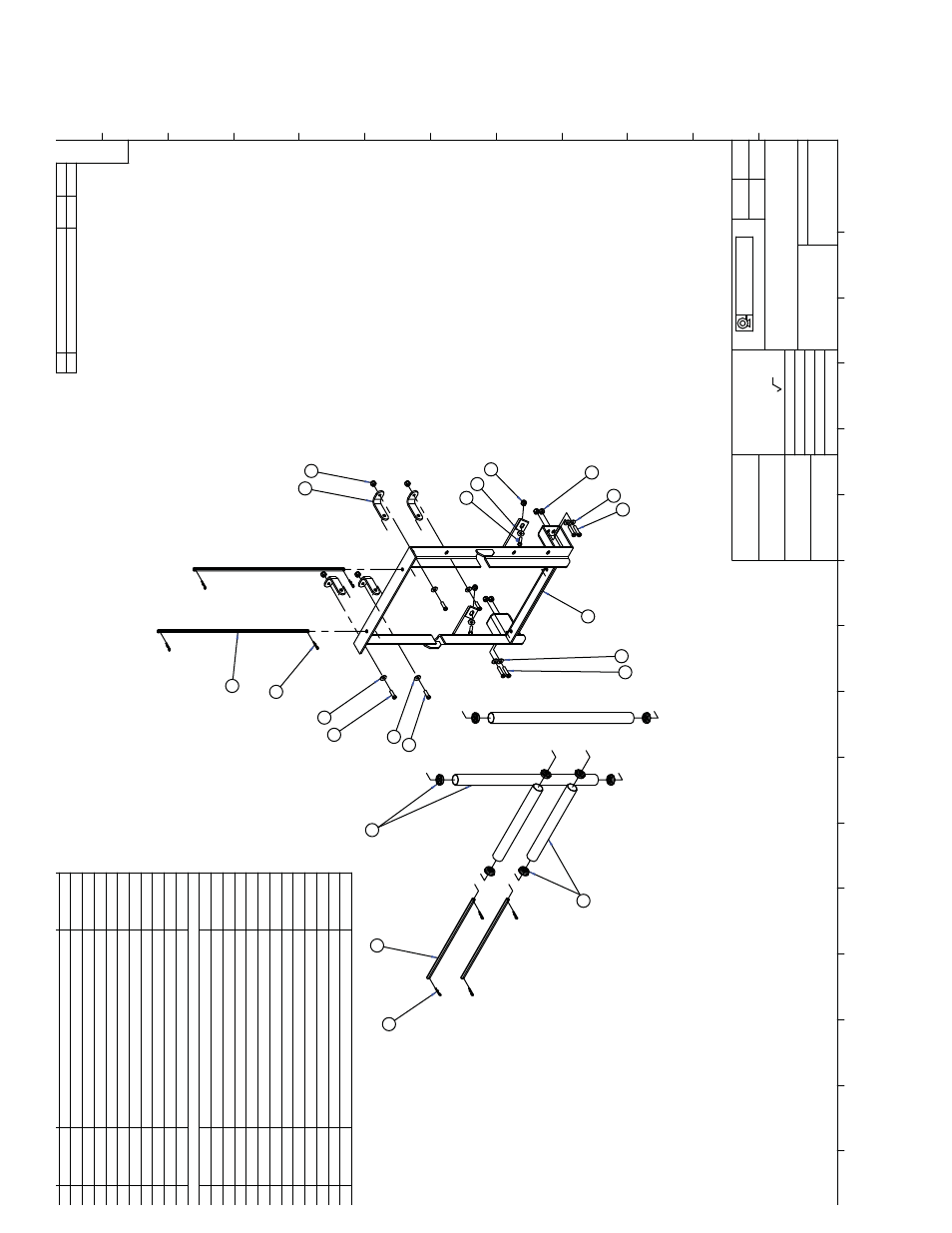

TYPE II ROLLER GUIDE
340307-5XX
340307-5
B A C D E F G H I J K L
21
3
4
5
6
8
97
10
11
12
13
15
14
16
340307-5A
BER
P
ART NUMBER
DESCRIPTION
QUANTITY
366001-5
FRAME ASSEMBLY
1
366002
ROLLER BRACKET
4
S357-6
FLAT WASHER, .375 ID - 316 STAINLESS
10
S359-66
H
EX CAP SCREW, 3/8-16 x 1 1/4" - 316 STAINLESS
4
S355-6
N
UT, NYLOC 3/8-16 - 316 STAINLESS
10
326307-9
HEX SHAFT
2
366006
ROLLER ASSEMBLY
2
326307-17
HEX SHAFT
2
366007-5
ROLLER ASSEMBLY
2
C00680123
HAIR PIN
8
S359-68
H
EX CAP SCREW, 3/8-16 x 1 3/4" - 316 STAINLESS
4
S359-67
H
EX CAP SCREW, 3/8-16 x 1 1/2" - 316 STAINLESS
2
366002
ROLLER BRACKET
4
S110-6
FLAT WASHER, .375 ID
10
S56-66
HEX CAP SCREW, 3/8-16 x 1 1/4"
4
S81-6
NUT, NYLOC 3/8-16
10
326307-9
HEX SHAFT
2
366006
ROLLER ASSEMBLY
2
326307-17
HEX SHAFT
2
366007-5
ROLLER ASSEMBLY
2
C00680123
HAIR PIN
8
S56-68
HEX CAP SCREW, 3/8-16 x 1 3/4"
4
S56-67
HEX CAP SCREW, 3/8-16 x 1 1/2"
2
APPENDIX
“E”
11
