7 Technical Specifications
Diagnostic LEDs
LEDs on the underside of the mounting base enable you to check for power and data.

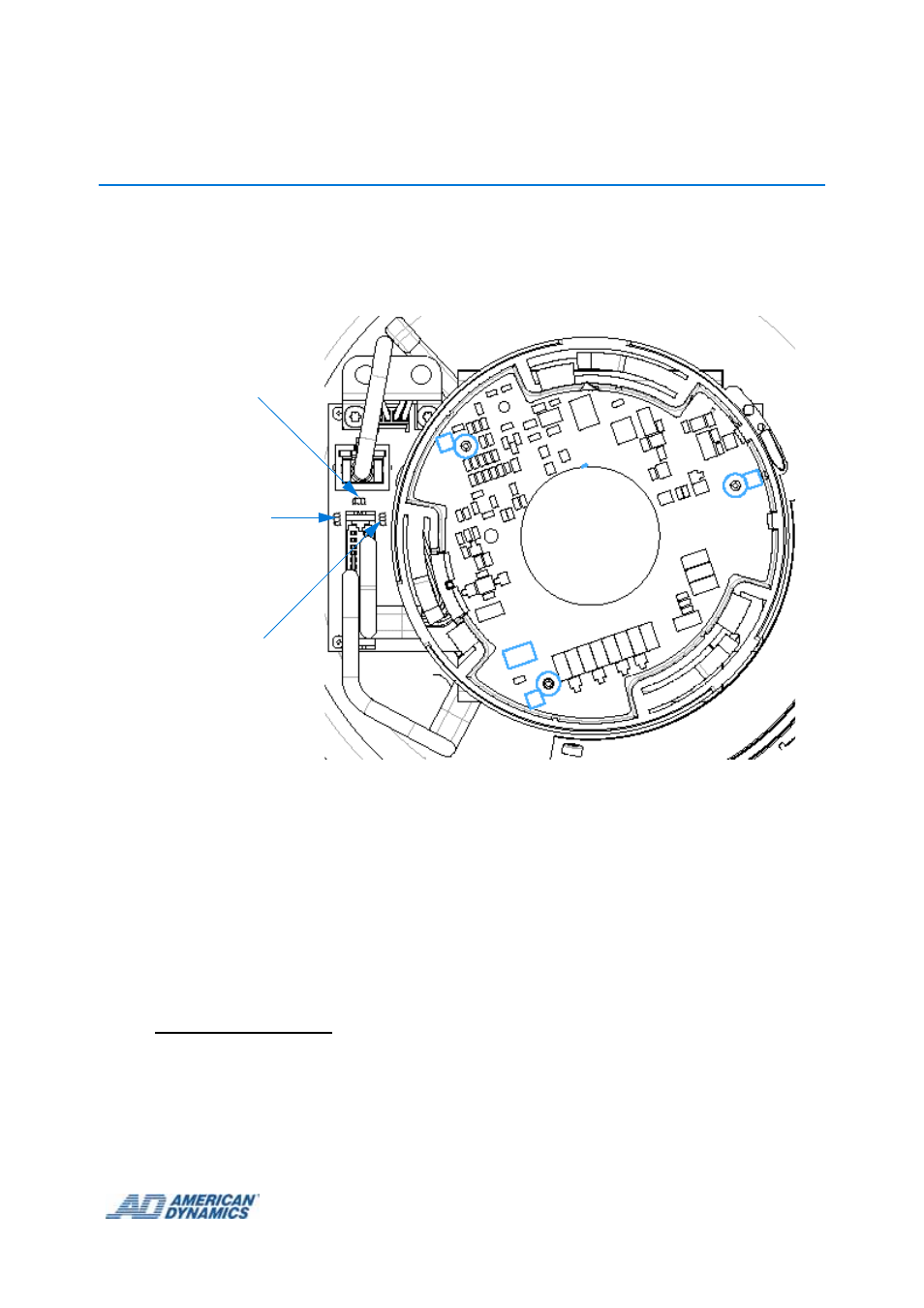

Figure 7-1 LED Status lights positions
Diagnostic LED Status Descriptions
Power LED (green)
On with repeating slow short flashes off – normal operation.
Rapidly flashing – invalid stored configuration / operating on factory defaults.
Video/Alarm LED (yellow)
Not used at this release to indicate alarm conditions.
Note
Power and Video/Alarm LEDs rapidly flashing together indicates a firmware or configuration
update is in progress.
Client LED (orange)
On – operating normally with one client connected.
Power LED
(green)
Video LED
(yellow)
Client LED
(orange)
