Installing IP SpeedDome Ultra 8 with a RHOPN Pendant Mounting
4-7

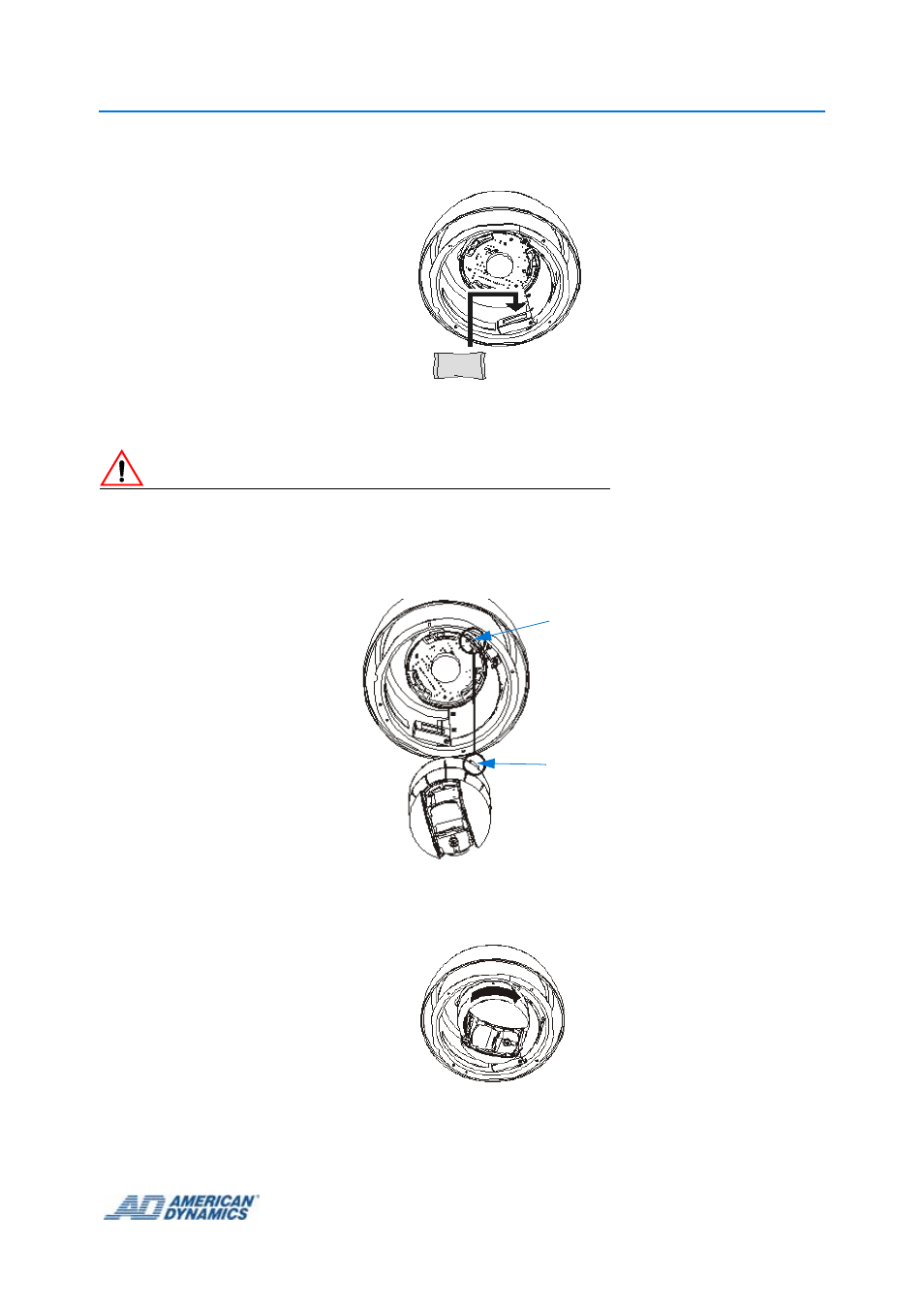

Figure 4-9 Inserting the desiccant bag into the housing
Caution
If the bubble is attached for up to 30 minutes or more and then detached, the bag must be replaced
before the bubble is attached again. An extra bag is supplied. If more are needed, order kit 0352-0207-
02.
13 Connect the housing and eyeball assembly to the base by aligning the Cap and Base tabs.
Figure 4-10 Aligning the Cap and Base tabs
14 Turn the eyeball assembly clockwise until you hear a click.
Figure 4-11 Locking the eyeball assembly
Base tab
Cap Tab
