Ramsey Winch H930 Dow-Lok W/Counterbalance Valve, Less Brake - Manual (Page 9)

7
(4)

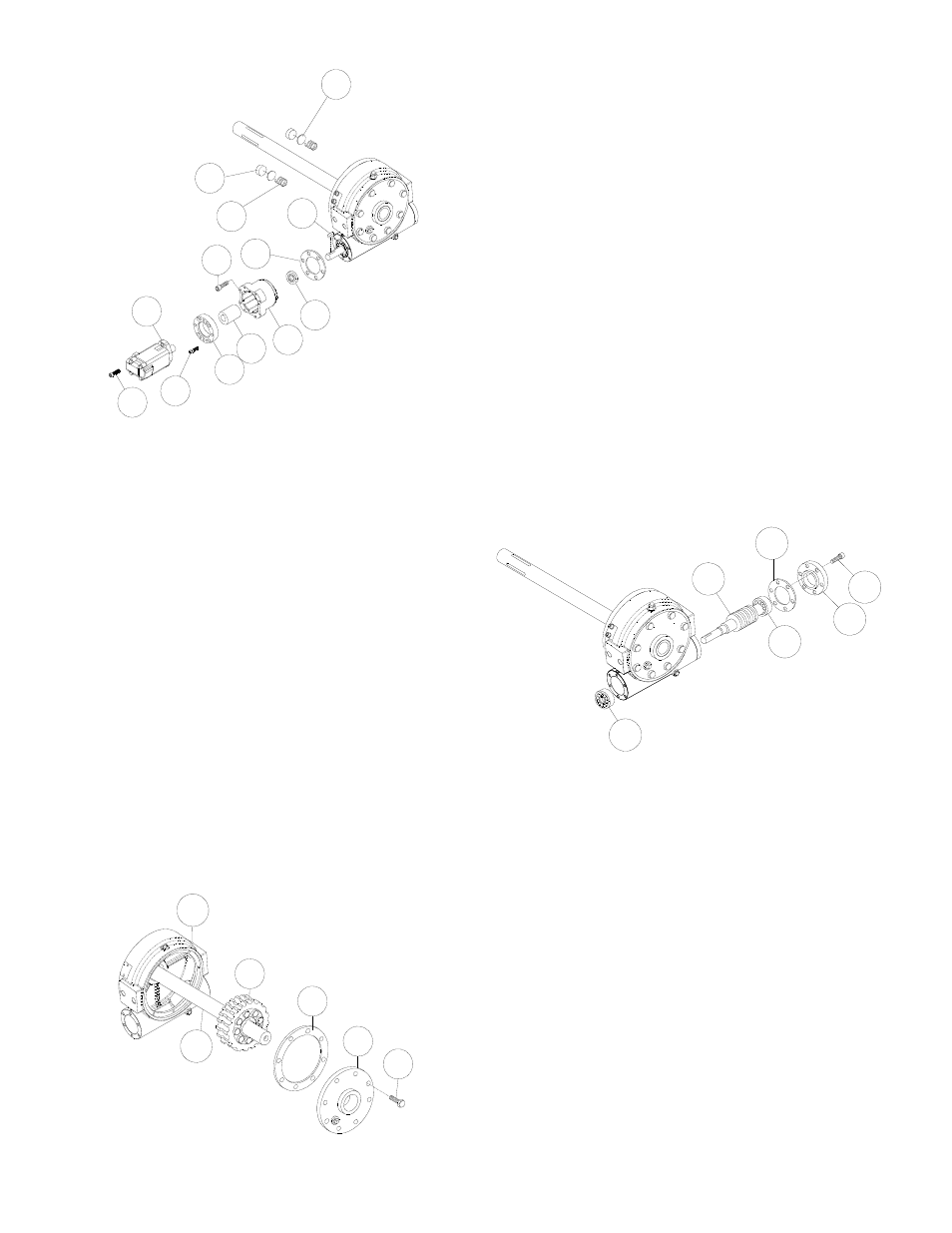

Remove motor (item #72) from adapter plate (item
#25) by removing capscrews (item #54) . Remove
adapter plate and coupling (item #2) from adapter
(item #3) by unscrewing eight capscrews (item #50).
Remove key (item #23) from worm shaft. Unscrew
six capscrews (item #53) and remove adapter from
gear housing. Replace adapter seal (item #80) and
gasket (item #67).
Drag brake disc (item #14), spacer (item #89) and
spring (item #84) should be examined and replaced if
necessary.
(5)
Remove bearing cap (item #17) from gear housing by un-
screwing six (item #51) capscrews. Remove worm (item
#29) and bearings (item #33) from gear housing. Use a
soft hammer to gently tap input end of worm and drive
worm and bearing from gear housing. Once worm has been
removed from housing, bearing can be pressed from end of
worm.
Check for signs of wear or damage to worm (item #29)
and bearings (item #33). Replace if necessary.
(6)
Remove gear housing cover (item #12) from gear housing
(item #18) by unscrewing eight capscrews (item #42).
Thread two of the capscrews into the two tapped holed of
cover and tighten. This will pull the cover loose from gear
housing.
Remove cover gasket (item #69) and pull shaft (item
#27), with gear (item #16) attached, from gear housing.
23
67
3
80
53
72
54
50
25
2
14
89
84
33
17
51
29
67
33
27
16
69
42
12
18
