10
(15)

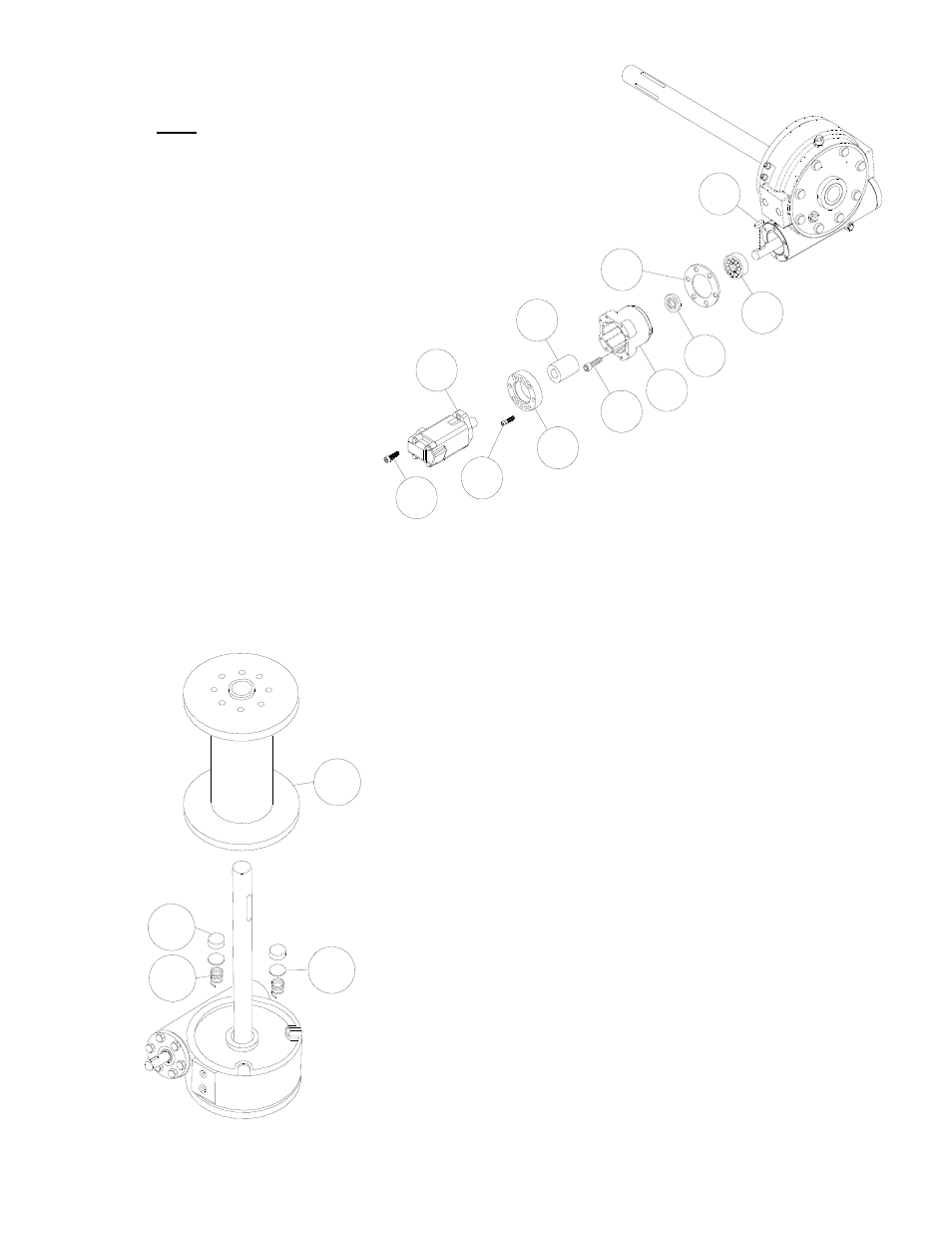

Press bearing (item #33) onto worm and
into housing. NOTE: Be sure that thick
shoulder of bearings outer race (side with
manufacturer's name and part number) is
out, away from worm threads. Attach
adapter (item #3) to gear housing using
six capscrews (item #53). Tighten cap-
screws to 45 ft. lbs. (61 Nm.) each. Insert
key (item #23) into keyway of worm shaft.
Slide coupling (item #2) over end of worm
shaft. Attach adapter plate (item #25) to
adapter using eight capscrews (item #50).
Tighten capscrews to 21 ft. lbs. (28 Nm.)
each.
Place motor shaft, with key in keyway, into
coupling. Secure motor (item #72) to
adapter, using two capscrews (item #54).
Tighten capscrews to 102 ft. lbs. (138
Nm.) each.
(16)
Place winch with gear housing cover down on work
bench. Drum shaft should be in vertical position. Set
springs (item #84) into pockets of gear housing with
drag brakes (item #14) on top of disc (item #89) and
springs. Slide drum assembly (item #15) onto drum
shaft as shown.
53
80
3
67
23
72
54
50
25
2
33
15
89
84
14
