9
(11 )

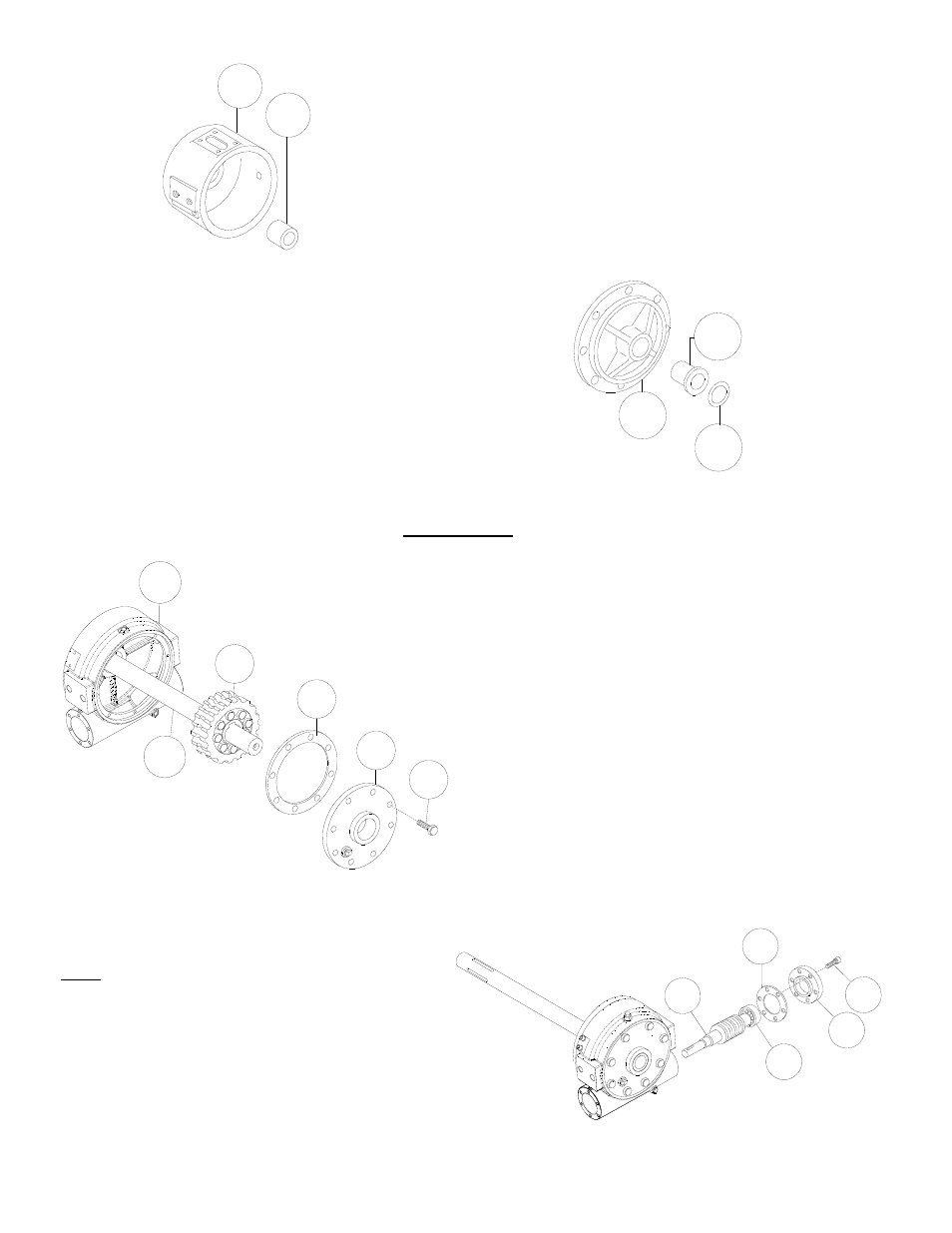

Check end bearing bushing (item #36) for signs of
wear. If necessary, remove old bushing and press new
bushing into place.
(12)
Check cover bushing (item #6) and o-ring (item
#73) for signs of wear. Replace if necessary by
pressing old bushing from gear housing cover (item
#12). Press new bushing into place and insert new
o-ring (item #73) into groove inside of bushing.
RE-ASSEMBLY
(13)
Apply grease to end of shaft (item #27), opposite gear
(item #16). Apply grease to bushing in gear housing
(item #18). Place greased end of shaft through bushing
in gear housing (item #18). Place gasket (item #69)
onto gear housing cover (item #12). Apply grease to
gear end of shaft and cover bushing. Place cover onto
shaft and secure to housing with eight (item #42) cap-
screws. Tighten capscrews to 39 ft. lbs. (52 Nm.) each.
(14 )
Press bearing (item #33) onto worm (item #29).
NOTE: Be sure that thick shoulder of bearings outer
race (side with manufacturer1s name and part num-
ber) is out, away from worm threads. Press bearing
and worm into gear housing. Slip gasket (item #67)
onto bearing cap (item #17). Use six capscrews (item
#51) to secure brake housing to gear housing. Tighten
capscrews to 45 ft. lbs. (61 Nm.) each.
18
12
42
69
16
27
73
12
6
67
29 51
17
33
19
36
