Paasche Airbrush CUHF-PL - Manual (Page 2)

CUHF- Spray Gun Page 2

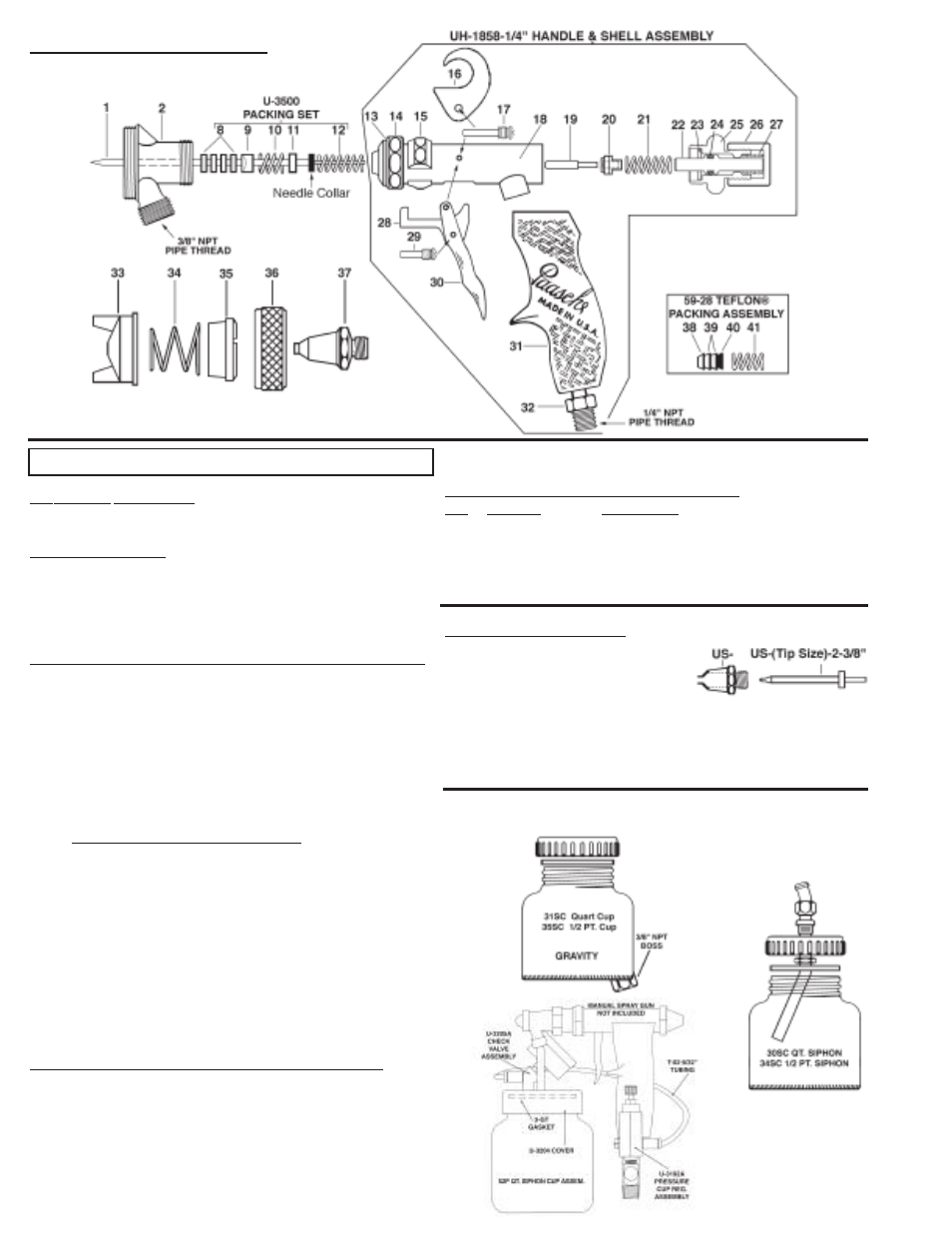

CUHF-(HVLP) Spray Gun Components
No.Part No. Description
1. U-2-3/8
Needle §
2. CUH-7B Fluid Body (Available in Stainless)
U-3500 Packing Set
8. U-28-12 Packing Washers (4)
9. U-29 Packing Gland
10. DU-30 Spring §
11. U-31 Spring Seat
12. U-33 Spring §
UH-1858-1/4 Handle & Shell Assembly (Items 13 thru 31)
13. U-2153 Retaining Ring
14. U-58 Nut §
15. U-755 Link Sleeve
16. U-828 Hook
17. U-856 Trigger & Hook Screw §
18. U-2154A Shell Assembly
19. U-762 Air Valve Piston §
20. U-2520P Air Valve Head
21. U-2500 Spring §
U-2106B Fluid Control Assembly
22. U-3631 Plunger
23. U-2750 Packing Gland
24. AE-43 “O” Ring
25. U-2069B Rear Cap
26. 200-17
Fluid Knob
27. U-1702 Valve Spring
28. U-1322A Link Assembly §
29. U-35 Trigger Link Screw §
30. U-1671 Trigger §
31. U-1890P Plastic Handle (Polypropylene)
32. U-3609 Air Inlet Tube (Required for CUHF-Model)
Spray Head L/Needle (HVLP) (Required for CUHF-)
• Head Sizes: 000, 00, 0, 2 or 4
33. 56FA- Fan Aircap: 000, 00, 0-use 56FA-4-12,
2 uses 56FA-4-15 and 4 uses 56FA-4-20-3
34. U-2861 Spring §
35. U-3611 Sleeve (Required for HVLP)
36. U-1649 Aircap Nut
37. U- Stainless Tip (Select same size as Head)
59-28 TEFLON Packing Assembly (Optional)
No.
Part No. Description
38. U-3353 Packing PTFE (1)
39. 59-24 Packing PTFE (2)
40. 59-25B Packing Expander (1)
41. DU-30 Spring §
SPECIAL TIPS & NEEDLES
• US- 2 or 4 Self Cleaning Tip §
(Select Size)
US-2-2-3/8 Self Cleaning Needle
US-4-2-3/8 (Match Tip Size) §
Self Cleaning feature clears tip orifice everytime needle is pulled
back for spraying.
NOTE: Symbol (§) denotes Stainless Steel Parts.
CONTAINERS: 30SC, 34SC,
31SC, 35SC and 52P - other sizes available call for Bulletin.
