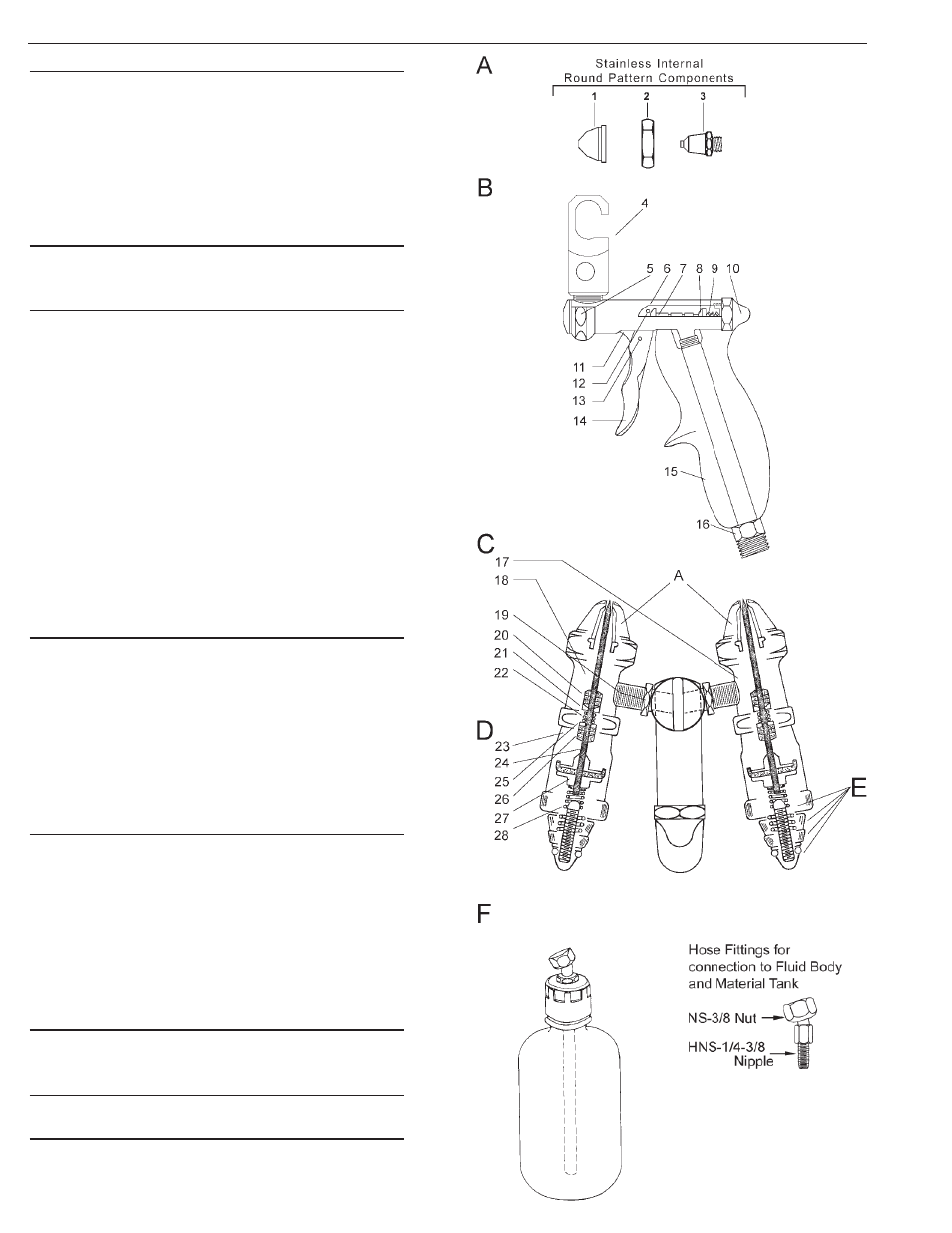

A. Head Assembly Components
1. BSR-15-0 Standard Stainless Aircap(.055)
BSR-15-2 or 4 Optional Aircaps(.073 & .093)
2. BUS-12 Stainless Aircap Nut
3. U-0 Standard Stainless Tip(.055)
U-2 or 4 Optional Tips(.073 & .093)
4. U-3641 Hook & Tee
B. U-1858-1 Handle & Shell Assembly
5. U-755 Link Sleeve
6. P67.1 Shell Assembly
7. U-762 Air Valve Piston
8. U-2520P Air Valve Head
9. U-2500 Spring
10. U-874A Rear Cap
11. P67.4 Link Assembly
12. U-40 Trigger Screw
13. U-35 Trigger Link Screw
14. U-1671 Trigger
15. U-1890P Plastic Handle
16. U-807 Air Inlet Tube
C. Fluid Bodies Right & Left
17. U-3557 St. St. Fluid Body - RIGHT
18. U-3558 St. St. Fluid Body - LEFT
19. U-3399 Locknut (1)
20. U-28-12 Packing Washer (sold per doz.)
21. U-29 Packing Gland (1)
22. DU-30 Spring (1)
D. U-2260 Cylinder Assembies
23. U-2493 Cylinder Shell Assembly
24. A-U-3-1/32 Needle
25. U-203 Packing Gland (1)
26. U-28-12 Packing Washers (sold per doz.)
27. U-2505 Piston Assembly
28. U-2500 Spring
E. U-2264 Rear Cap Assembly
F. USP-QT (QT./.946 l) Plastic Bottle Assembly
NOTE:
U-28-12 Packing Washers sold by the Dozen only.
