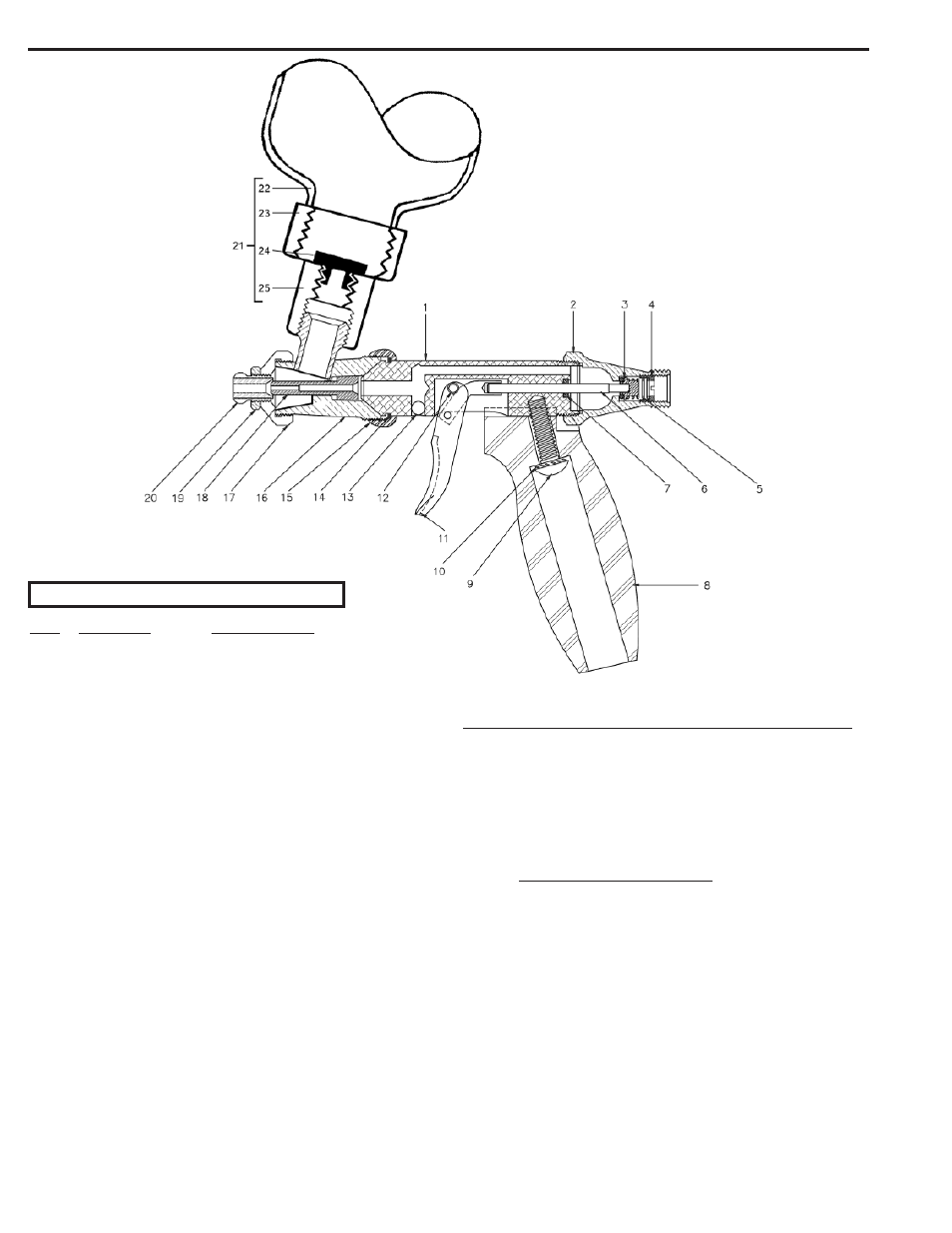

LAC#3 ABRASIVE GUN
No. Part No.
Description
LAC#3 ABRASIVE GUN W/CARBIDE INSERT TIP
1
LA-7C
Shell
2
U-49A
Valve Casing
3
U-154P
Air Valve Head
4
U-48
Strainer Nut
5
U-1853
Air Valve Spring
6
L-83A
Piston Rod
7
H-006
“O” Ring
8
L-86
Handle
9
1/4-20x3/4TR
Truss Head Screw
10
1/4ETW
External Tooth Lock Washer
11
L-76A
Trigger & Rod Assembly
12
U-40
Trigger Screw
13
3/16SBB
Ball Bearing Plug
14
U-2153
Retaining Ring
15
U-58
Nut
16
LA-6
Abrasive Body Assembly
17
LA-5
Aircap Nut
18
LA-3N
Nozzle
19
D-60
Lock Nut
20
LAC-3
Carbide Insert Aircap
21
LA-27
Bottle Assembly
22
U-3391
Polyethylene Pint Bottle
23
U-3392
Polyethylene Bottle Cover
24
U-3393
Bushing
25
U-3394
Nut
Accessories for Abrasive Guns - not shown
HL-3/16-6
Air Hose with (2) HLC-3/16-1/4 Cplgs.
HF-1/4
Valve Assembly
U-2061
Fluid Control Screw (Old No.15)
U-1702
Valve Spring (Old No.16)
Abrasive Compounds
ALUMINUM OXIDE - Fast Cutting Compound
AEX-25 25 Lbs.
AEX-5
5 Lbs.
AEX-6
6 oz.
PUMICE - Medium Cutting Compound
AE-5
5 Lbs.
AE-6OZ
6 oz.
STARCH - Slow Cutting Compound
SSO-5
5 Lbs.
SSO-6
6 oz.
