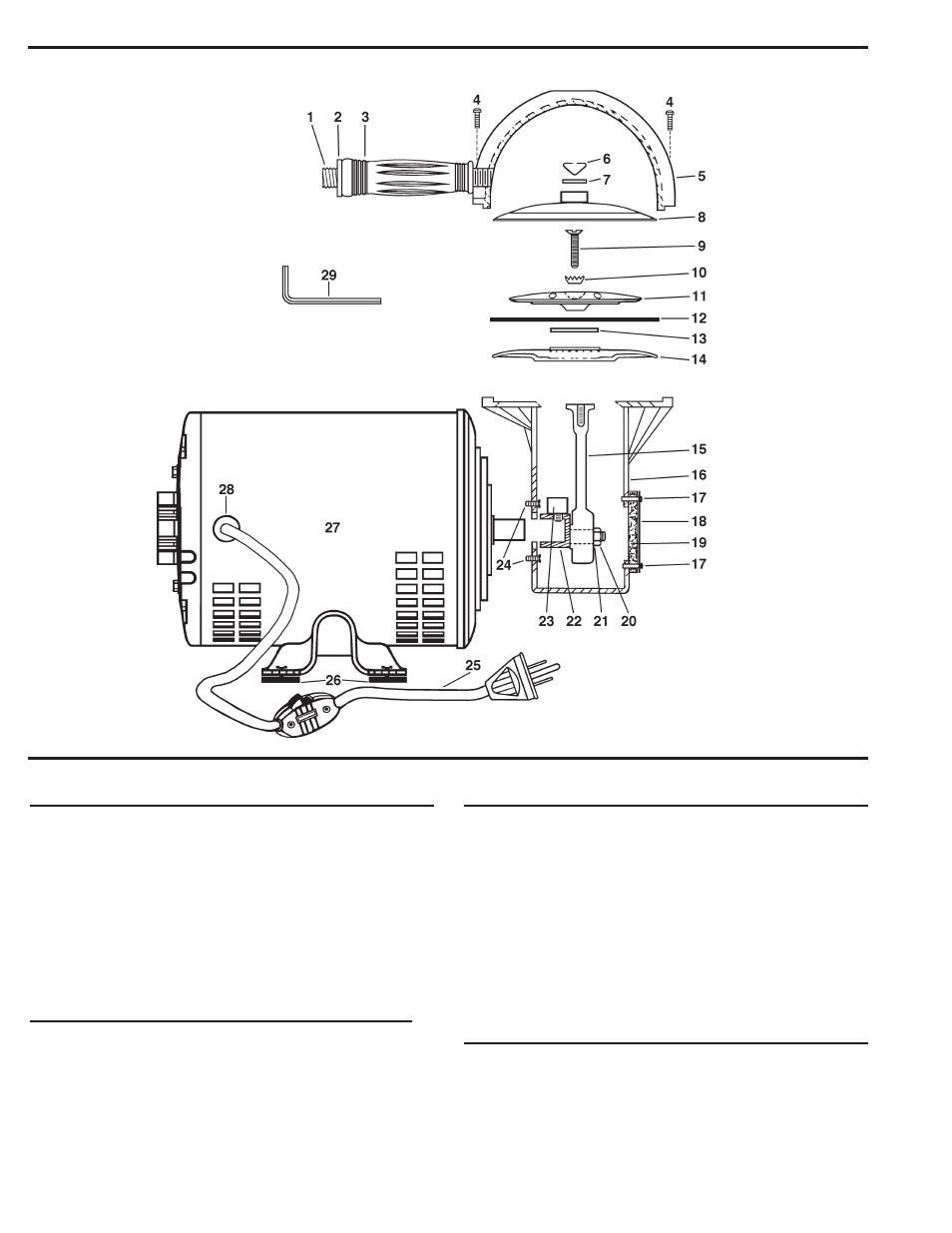

Paasche D Air Compressor Parts List
No.
Part
Description
1.
D-49
Handle
2.
1400-50
Retaining Ring
3.
D-50
Handle Sleeve
4.
D-77
Screw (4)
5.
D-48G
Reservoir
6.
D-106
Retaining Spring
7.
D-69N
Exhaust Valve Disc
8.
D-57
Pressure Head
D-88 Connecting Rod & Diaphragm Assem.
9.
D-79
Allen Screw
10.
D-103
Lock Washer
11.
D-55
Puller Washer
12.
D-56
Diaphragm
13.
D-66
Intake Valve Disc
14.
D-54
Pusher Washer
15.
D-352
Connecting Rod & Bearing
No.
Part
Description
16.
D-47G
Housing
17.
D-343
Nylon Fastener (4)
18.
D-341
Nameplate
19.
D-342
Inlet Filter
20.
D-80
Nut
21.
L-70
1/4" Shakeproof Lock Washer
22.
D-351
Crank Shaft
23.
D-83
Counter Weight & Screw
24.
D-346
Screw (4)
Motor Components
25.
U-2769-6' Cord and Switch
26.
D-336
Grommet, Screw & Nut (4)
27.
D-159G
Motor L/Cord
28.
D-357
Cord Strain Relief
29.
#532
Allen Wrench
