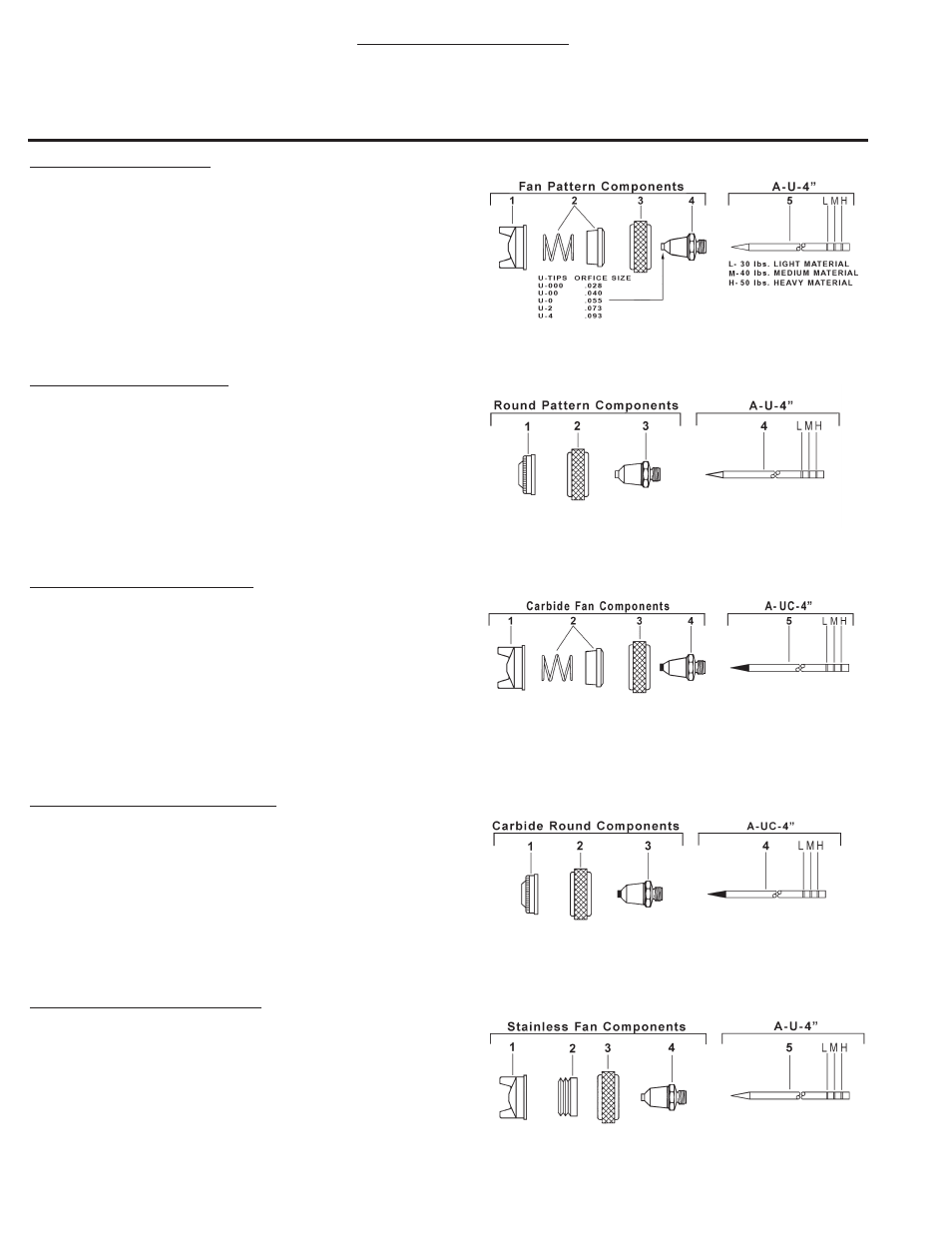

SPRAY HEAD COMPONENTS
Spray Heads for A-CU & F87-CUAD Automatic Spray Guns are available in several different styles, some of which are available with
Stainless Steel components. The C.F.M. requirements range from 3 to 24 C.F.M. @ 40 to 50 lbs. air pressure. NOTE: When either fluid
Tip or fluid Needle is worn and requires replacement, it is recommended that both items be changed for best results. All Tips and
Needles are made using 303 Stainless Steel. Carbide Tips & Needles are available for use with abrasive materials. When using
Extensions, material must be pressure fed for proper application of material.
EXTERNAL- FAN PATTERN
• Application: Broad coverage - High Production.
• Sizes: 000-3, 00-4, 00-4-6, 06, 0-9, 2-8, 4-10, 4-15.
• Fluid Viscosity: Light to Heavy (3 to 24 C.F.M.@ 40 or 50 P.S.I.)
1. 56FA- Aircap Body (Select Size above)
2. U-2639S Sleeve & Spring
4. U-1649
Aircap Nut
5. U- Stainless Tip (Select Size 000,00,0,2,4)
6. A-U-4 Stainless Needle
INTERNAL- ROUND PATTERN
• Application: Narrow trim, inside crevice, dot, line, High Production.
• Sizes: 2-5, 4-6.
• Fluid Viscosity: Light to Medium (3 to 6 C.F.M. @ 40 P.S.I.)
1. 56RA- Aircap Body (Select Size above)
2. U-1649 Aircap Nut
3. U- Stainless Tip (Select Size 2 or 4)
4. A-U-4 Stainless Needle
CARBIDE INSERT- FAN PATTERN
• Application: Abrasive Materials
• Sizes: 0-9, 2-8 or 4-10
• Fluid Viscosity: Light to Medium (4 to 12 C.F.M. @40 or 50 P.S.I.)
1. 56CFA- Aircap Body (Select Size above)
2. U-2639S Sleeve & Spring
3. U-1649
Aircap Nut
4. UC- Carbide Insert Stainless Body Tip (Select Size 0, 2 or 4)
5. A-UC-4 Carbide Insert Stainless Needle
CARBIDE INSERT- ROUND PATTERN
• Application: Abrasive Materials
• Sizes: 2-5 & 4-6
• Fluid Viscosity: Light to Medium (3 to 6 C.F.M. @ 40 P.S.I.)
1. 56CRA- Aircap Body (Select Size above)
2. U-1649 Aircap Nut
3. UC- Carbide Insert Stainless Body Tip (Select Size 2 or 4)
4. A-UC-4 Carbide Insert Stainless Needle
StainleSS Steel- FAN PATTERN
• Application: Corrosive materials and Latex.
• Sizes: 0-6, 0-9, 2-8, 4-10, 4-20-3.
• Fluid Viscosity: Light to Medium Heavy (4 to 20 C.F.M. @ 40 or 50 P.S.I.)
1. 56SFA- Stainless Aircap Body (Select Size above)
2. U-2639P Poly Sleeve
3. U-1649 Aircap Nut (plated brass)
4. U- Stainless Tip (Select Size 0, 2 or 4)
5. A-U-4 Stainless Needle
