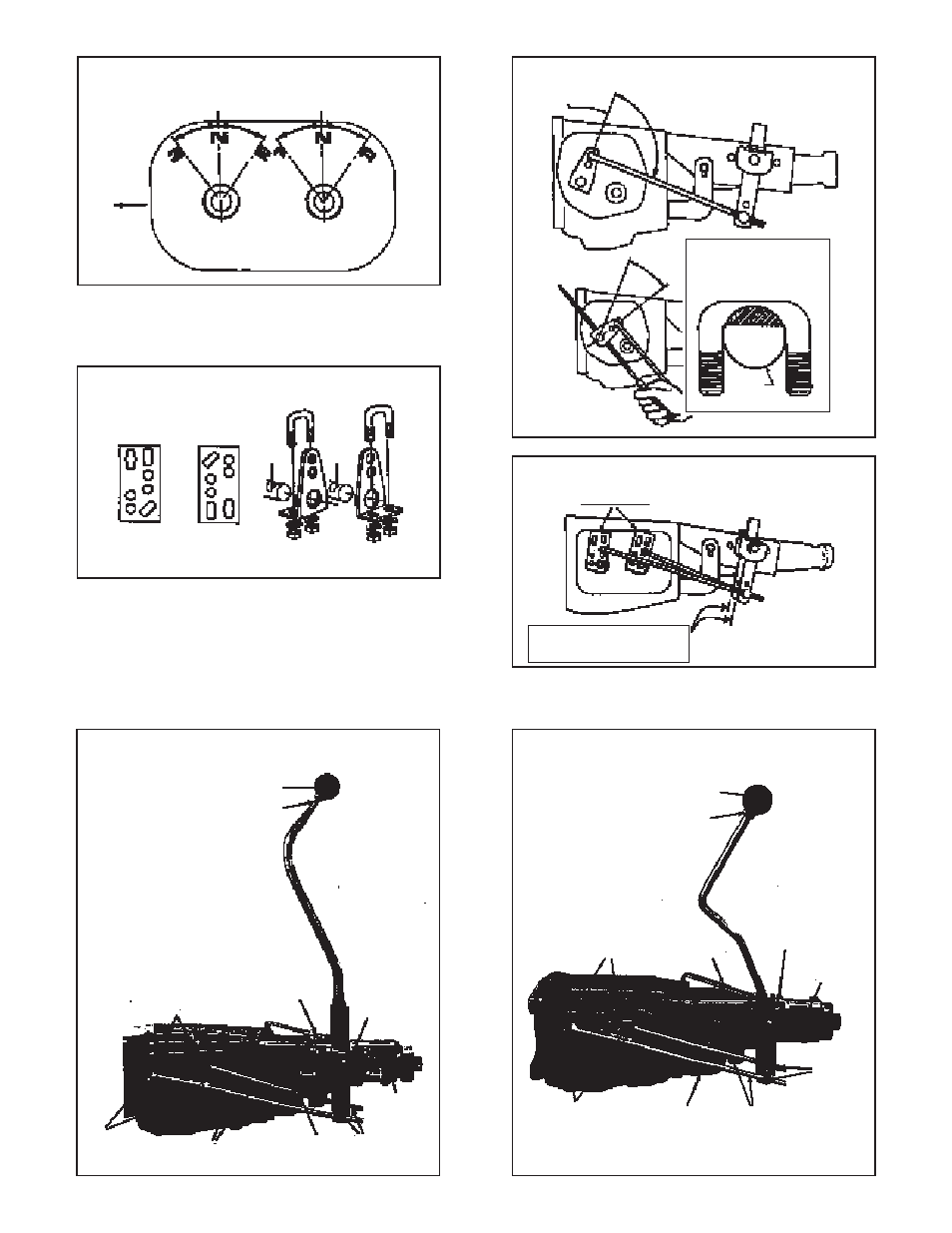

Page 3: Fig. 4 fig. 5, Fig. 6, Shifter diagram showing all parts, Shifter diagram showing all parts fig. 3
TRUCK INSTALLATION
FIG. 4
FIG. 5
USE THE SLOTS THAT LOCATE ARMS IN
THE BEST POSITION.
ARMS FOR MILLED
CONTROL SHAFTS
ARMS FOR ROUND
CONTROL SHAFTS
FILED
SLOT
FILED
SLOT
NEUTRAL
IMPORTANT
DO NOT FILE SLOTS TOO DEEP.
SLOTS SHOULD BE JUST DEEP
ENOUGH TO MAKE FULL CONTACT.
90°
HOLD FILE PARALLEL
TO ROD AT RIGHT
ANGLE TO AXIS OF ARM.
ROTATE SHAFT
TO ALLOW
FILING OF SLOT
SHAFT
FIG. 6
BOTH ARMS
AT NEUTRAL
ADJUST ROD BUTTONS ON
LINKAGE TO MAKE SHIFTER
LEVERS LINE UP PARALLEL
CUT OFF EXCESS
LENGTH BEYOND
ROD BUTTONS
KNOB
JAM NUT
TRANS-
MISSION
ARMS
ROD
BUTTONS
LINKAGE RODS
LOWER
SUPPORT
SPRING
CLIPS
STIFFENER
BRACE
SHIFTER
ASSEMBLY
MOUNTING
BRACKET
Shifter Diagram Showing All Parts
CAR INSTALLATION
KNOB
JAM NUT
TRANSMISSION ARMS
ROD
BUTTONS
LINKAGE RODS
LOWER
SUPPORT
SPRING
CLIPS
STIFFENER
BRACE
SHIFTER
ASSEMBLY
MOUNTING
BRACKET
Shifter Diagram Showing All Parts
FIG. 3
NEUTRAL IS THE MID-POINT
BETWEEN FULL TRAVEL (ROTATION)
FRONT
2ND/3RD
CONTROL
SHAFT
SIDE OF
TRANSMISSION 1ST-REVERSE
CONTROL
SHAFT
