Chapter 5 89

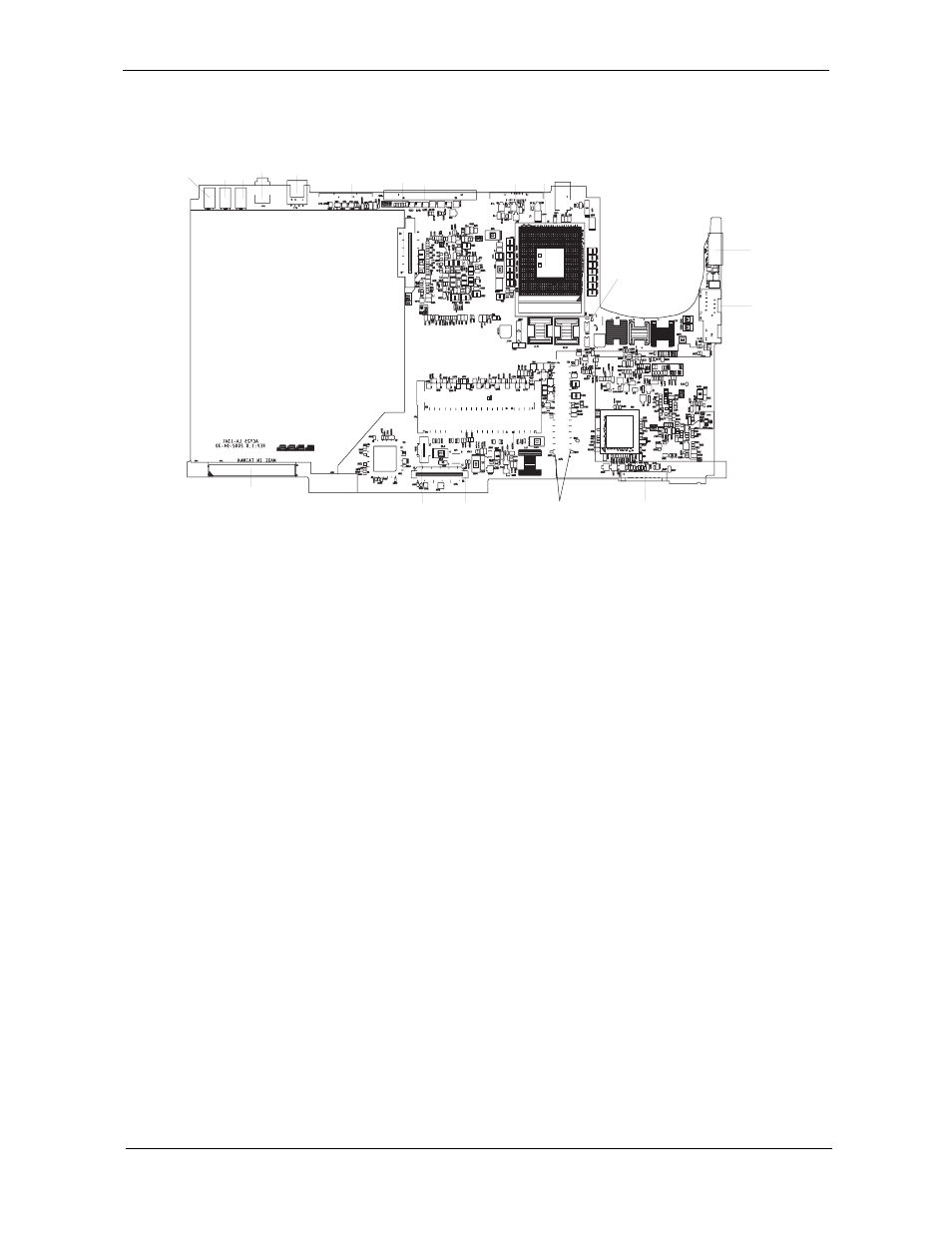

Bottom View
1-JP31 USB connector 12-JP1 CPU fan connector
2-JP26 USB connector 13-JP28 Keyboard/PS2
3-JP24 USB connector 14-JP14 RJ45-11 connector
4-JP11 1394 connector 16-JP12 PCMCIA connector
5-JP7 TV-out connector 17-JP4 DDR 200P so-DIMM connector
6-JP17 Serial port 18-JP19 FDD connector
7-JP10 CD-ROM connector 19-JP30 Card reader connector
8-JP27 Parallel connector 20-JP9 HDD connector
9-JP6 CRT connector
13
14
15 16
17
18
20
19
1 2 3 4 5
6
JP7
8 11 9 7 10
12
