Disassembling the logic lower – Acer 270 User Manual
Page 72
Chapter 3
67

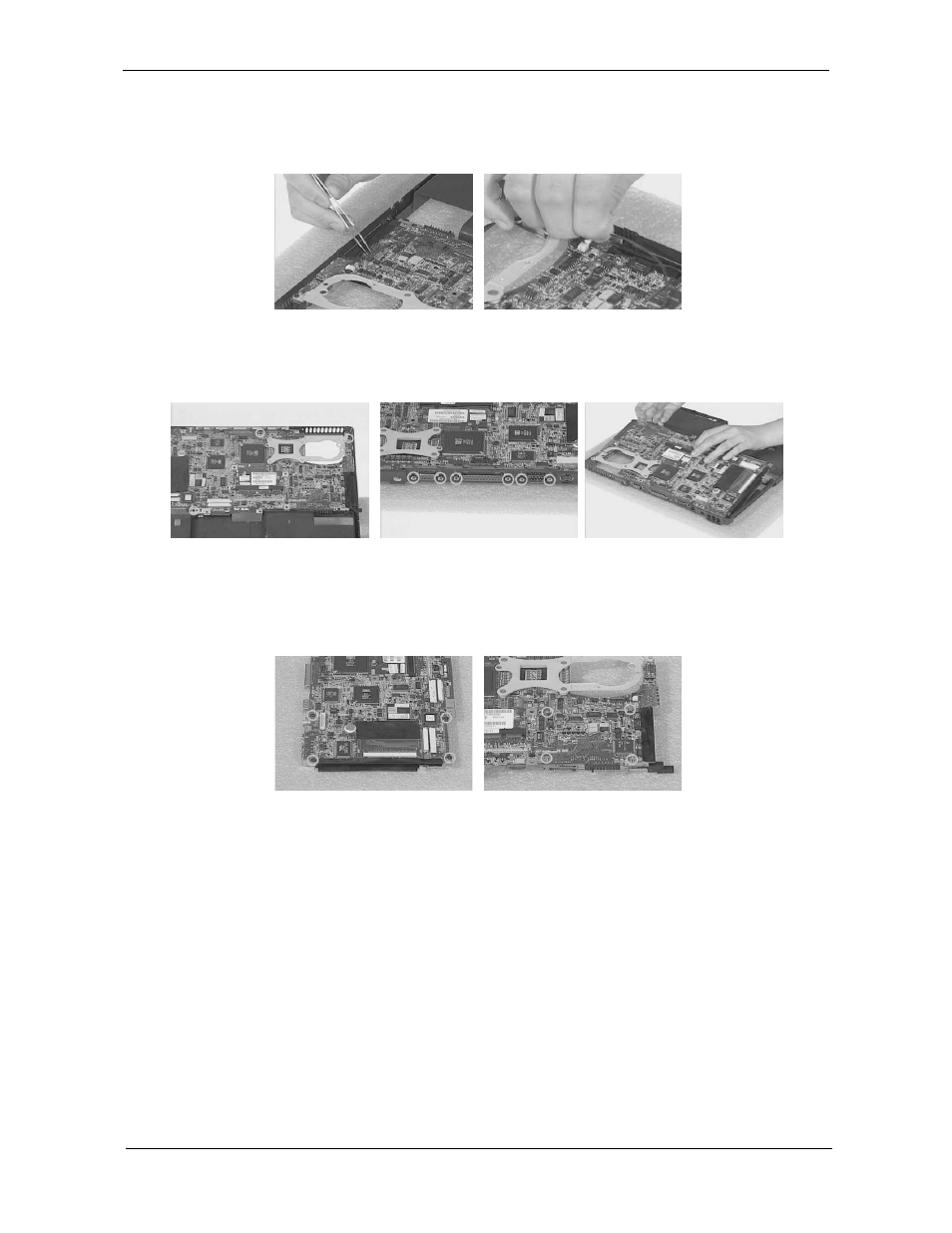

Disassembling the logic lower
1.
Tear off the mylar that fastens the wireless care power cable.
2.
Diconnect teh wireless card power cable and remove it from the main board.
3.
Unscrew the three screws that secures main board to the lower case.
4.
Remove the six nuts with nut screwdriver. two screws that secure the main board.
5.
Then take out the main board from the lower case..
6.
Remove the four screws holding the optical drive bracket then remove it from the main board.
7.
Remove the four screws that secures the PCMCIA slot and remove it from the main board.
