60 Chapter 3

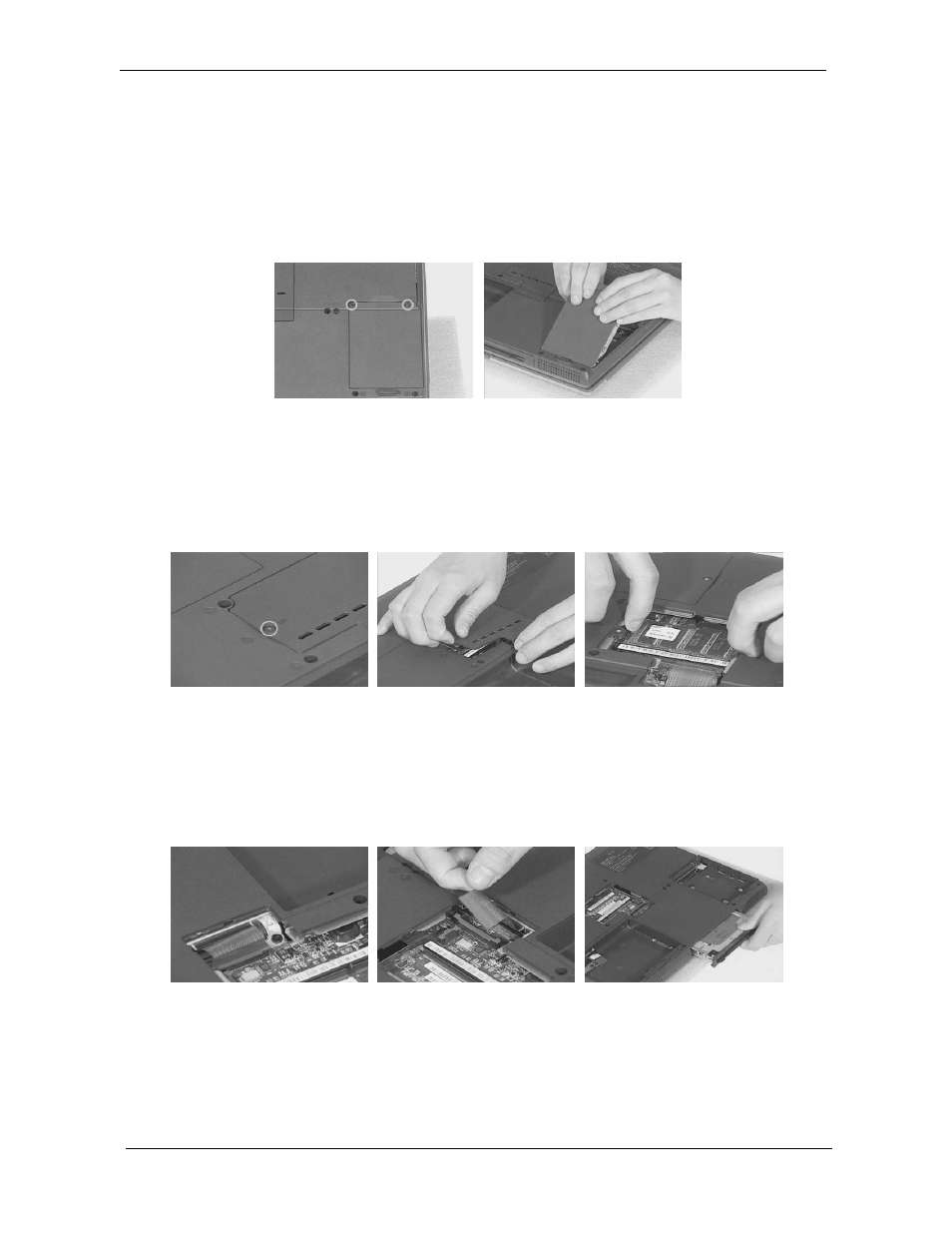

Removing the HDD Module/Memory/FDD Module/Optical Module and
CPU
Removing the HDD Module
1. Remove the two screws that secure the HDD module.
2. Then take the HDD module away.
Removing the Memory
1. Remove the screw as shown here.
2. Remove the DIMM door.
3. Then prize out the memory with the fingures.
Removing the FDD Module
1. Remove the screw that secures the FDD module.
2. Disconnect FDD FPC.
3. Then remove the FDD module.
Removing the Optical Module
1. Remove the screw that secures the optical module.
2. Push the optical module outwards.
3. Then take out the optical module.
