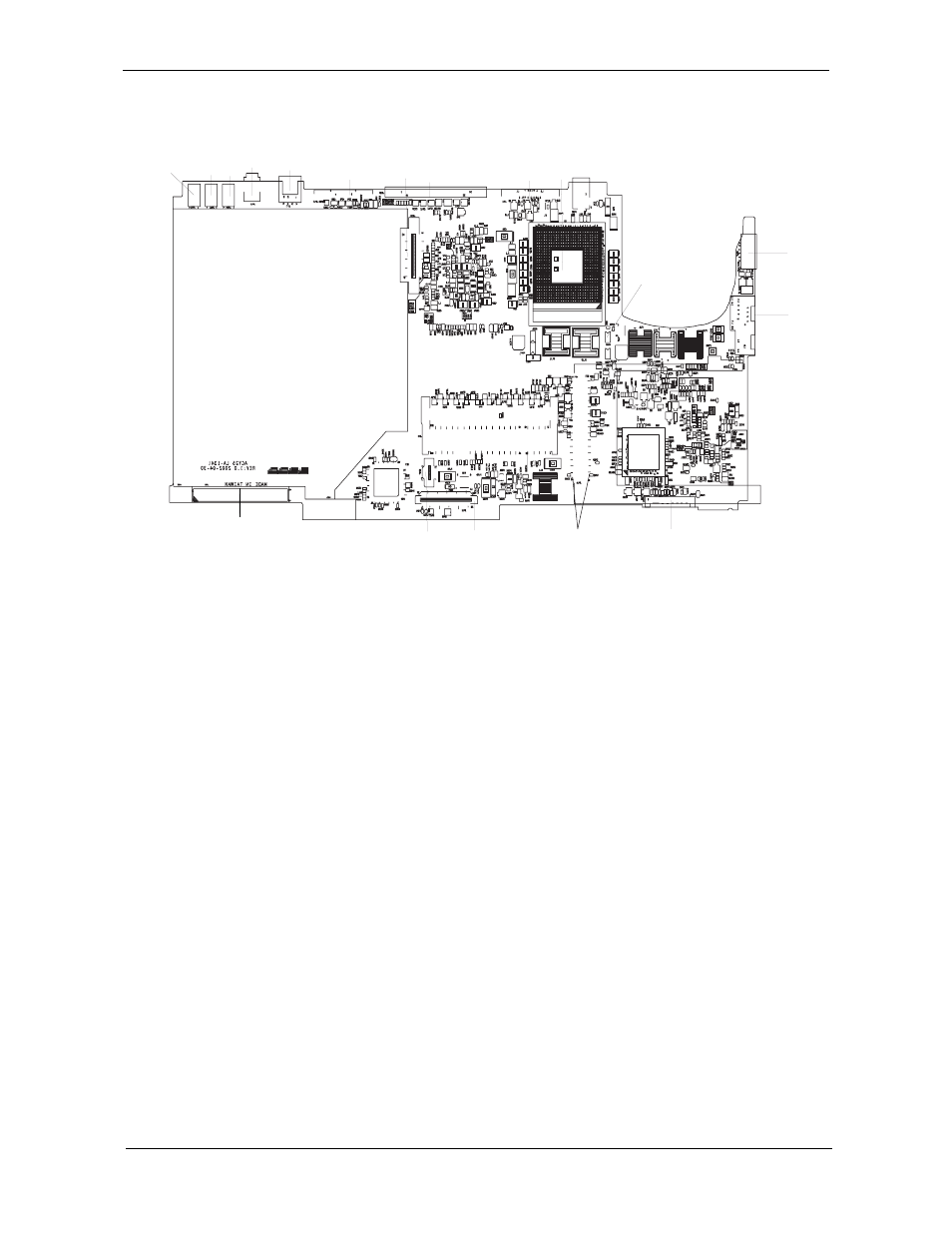

Bottom View
1 USB connector 11 DC jack connector
2 USB connector 12 CPU fan connector
3 USB connector 13 Keyboard/PS2 connector
4 1394 connector 14 RJ45-11 connector
5 TV-out connector 15 Battery connector
6 Serial port 16 PCMCIA connector
7 CD-ROM connector 17 DDR 200P
8 Parallel connector 18 FDD connector
9 CRT connector 19 Card reader connector
10 CPU socket 20 HDD connector
13
14
15 16
17
18
20
19
1
2 3 4 5
6
JP7
8 11 9 7 10
12
