Chapter 3

63

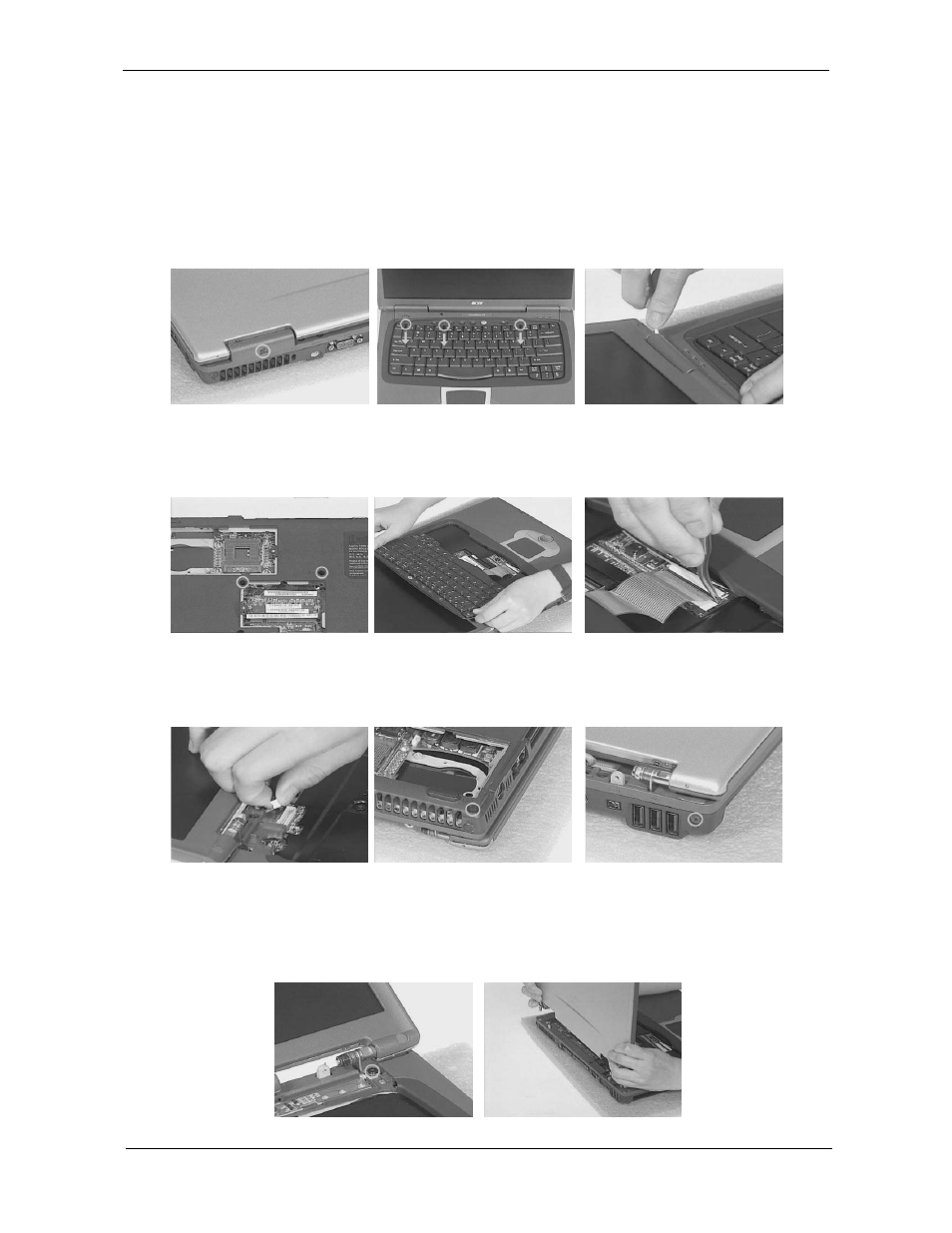

Removing the LCD Module and Switch Board

Removing the LCD Module

1.

Remove the two (one on each side) screws holding the middle cover.

2.

Use a tool to pull the keyboard locks outwards as shown here.

3.

Prize the middle cover with a plastic flat head screwdriver.

4.

Unscrew the two screws as shown here.

5.

Place the keyboard as the picture shows.

6.

Disconnect the keyboard cable..

7.

Disconnect the LCD power cable.

8.

Unscrew the two screws as shown here. One on each side.

9.

Then, remove the two screws as shown here. One on each side.

10. Remove the two screws holding the LCD hinges.

11. Then, remove the LCD module from the main unit.
