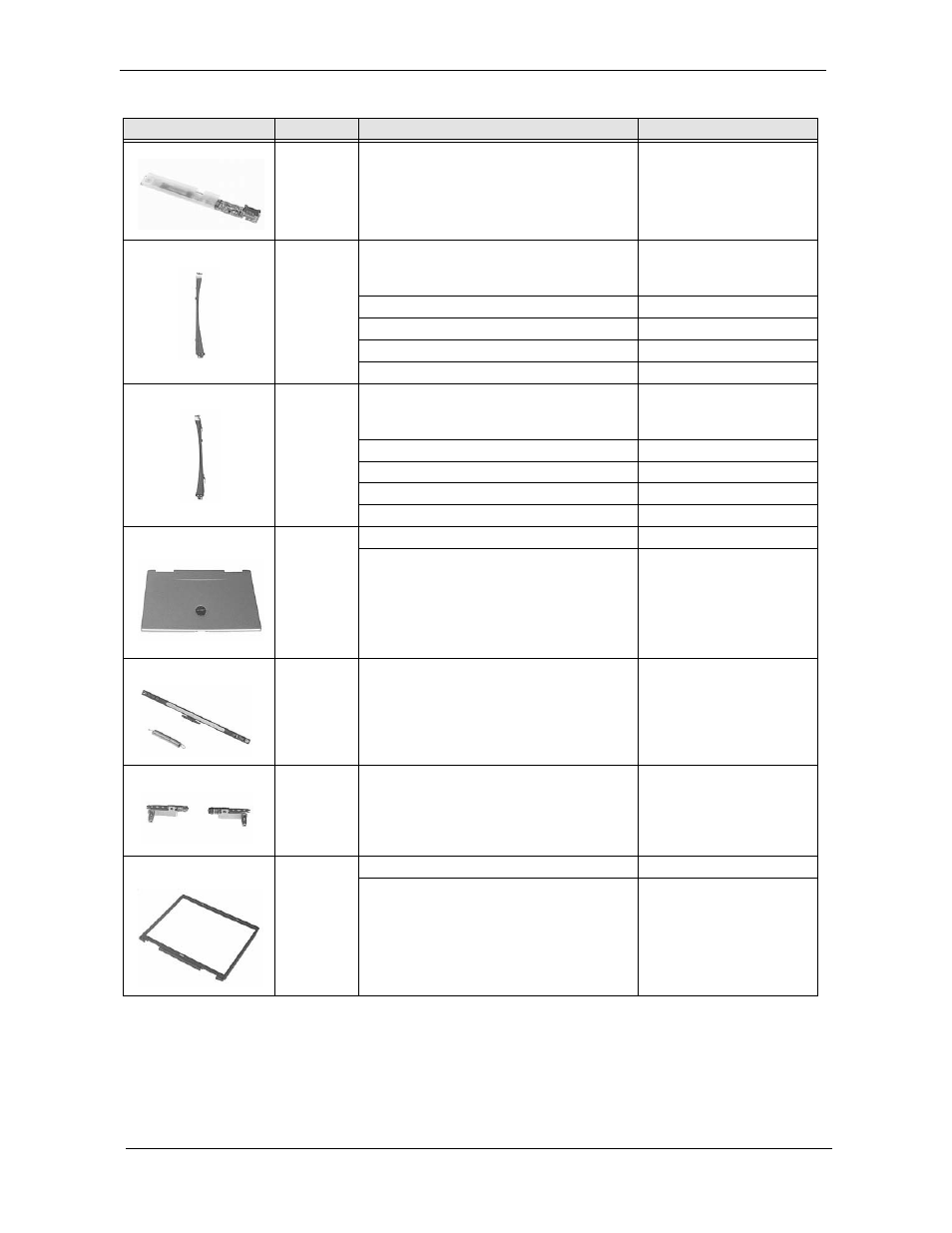

003-LCD
14.1” and
LCD 15”

LCD INVERTER

19.T18V5.001

104-LCD
14.1” and
LCD 15

LCD BRACKET L14” for AU, CPT

Note: The brackets you see on the exploded
diagram are with hinges.

33.T18V5.006

LCD BRACKET L15” XGA AU

33.T18V5.008

LCD BRACKET L15” XGA LG

33.T18V5.014

LCD BRACKET L15” XGA HITACHI

33.T18V5.010

LCD BRACKET L15” SXGA+ for CPT, LG, IBM

33.T18V5.012

103-LCD
14.1” and
LCD 15”

LCD BRACKET R14” for AU, CPT

Note: The brackets you see on the exploded
diagram are with hinges.

33.T18V5.007

LCD BRACKET R15” XGA AU

33.T18V5.009

LCD BRACKET R15” XGA LG

33.T18V5.015

LCD BRACKET R15” XGA HITACHI

33.T18V5.011

LCD BRACKET R15” SXGA+ for CPT, LG, IBM

33.T18V5.013

102-LCD
14.1” and
LCD 15”

LCD PANEL WITH LOGO-14”

60.T18V5.004

LCD PANEL WITH LOGO-15”

60.T18V5.006

NS

LCD KNOB LATCH KIT

6K.T18V5.002

NS

LCD HINGE ASSEMBLY (L&R) for 15” LCD

6K.T18V5.003

101-LCD
14.1” and
LCD 15”

LCD BEZEL 14.1”

60.T18V5.005

LCD BEZEL WITH RUBBER-15.0”

60.T18V5.007


No.

Partname And Description

Part Number
