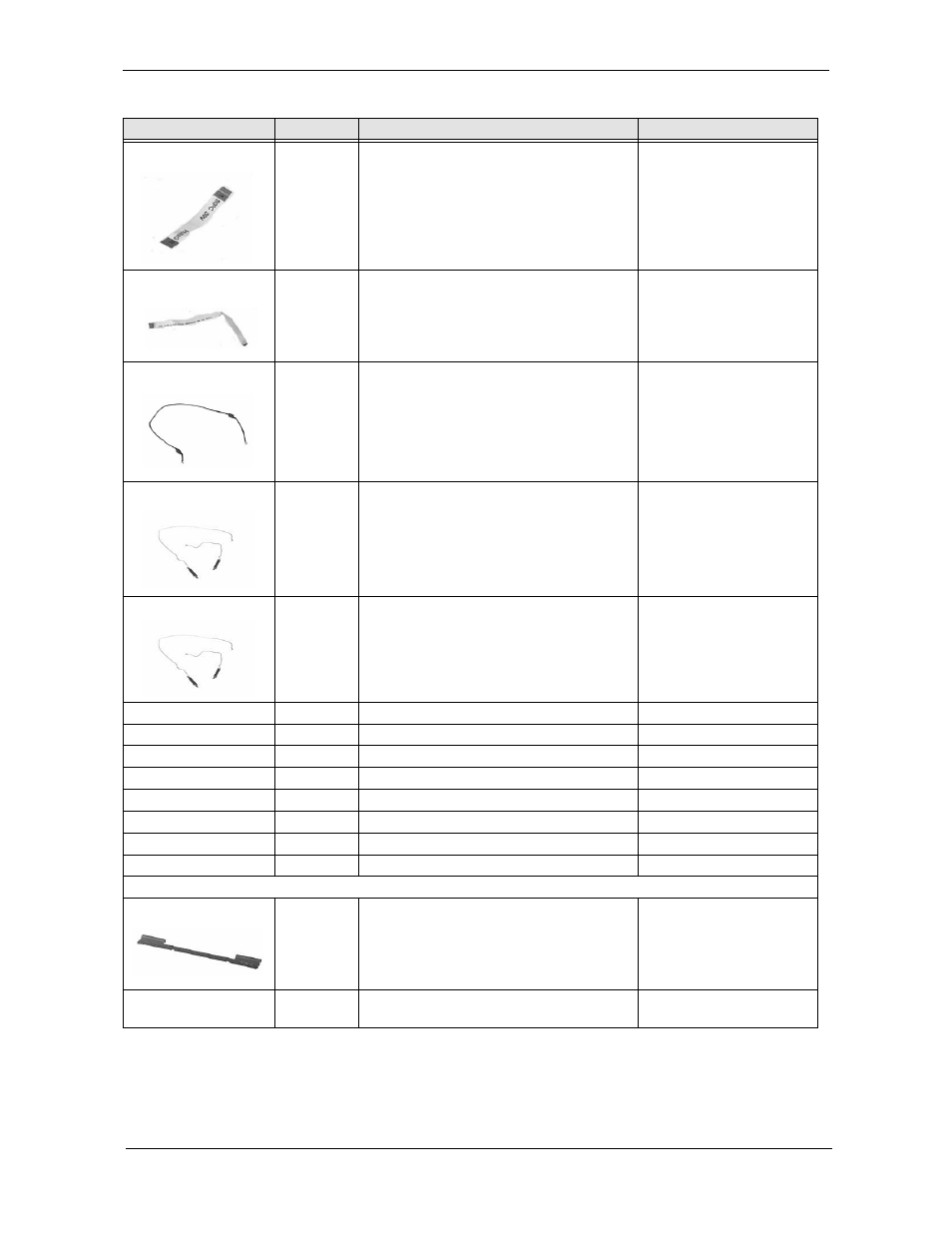

Chapter 6

99

003-Logic
Upper

FFC-TOUCHPAD

50.T18V5.002

004-Logic
Upper

FFC-PHONE JACK

50.T18V5.003

NS

CABLE-MODEM

50.T18V5.004

002-Logic
Upper

ANTENNA LINE-L

Note: The shorter one is the left antenna line

50.T18V5.005

001-Logic
Upper

ANTENNA LINE-R

Note: The longer one is the right antenna line

50.T18V5.006

NS

POWER CORD US (3Pin)

27.T18V5.001

POWER CORD EC (3Pin)

27.T18V5.002

POWER CORD Aus (3Pin)

27.T18V5.003

POWER CORD UK (3Pin)

27.T18V5.004

POWER CORD SWISS (3Pin)

27.T18V5.005

POWER CORD CHINA (3Pin)

27.T18V5.006

POWER CORD ITALLIAN (3Pin)

27.T18V5.007

POWER CORD DEMARK (3Pin)

27.T18V5.008

Case/Cover/Bracket Assembly

312-The
System

MIDDLE COVER

42.T18V5.001

NS

322-The
System

MIDDLE COVER SCREW PAD

47.T18V5.003


No.

Partname And Description

Part Number
