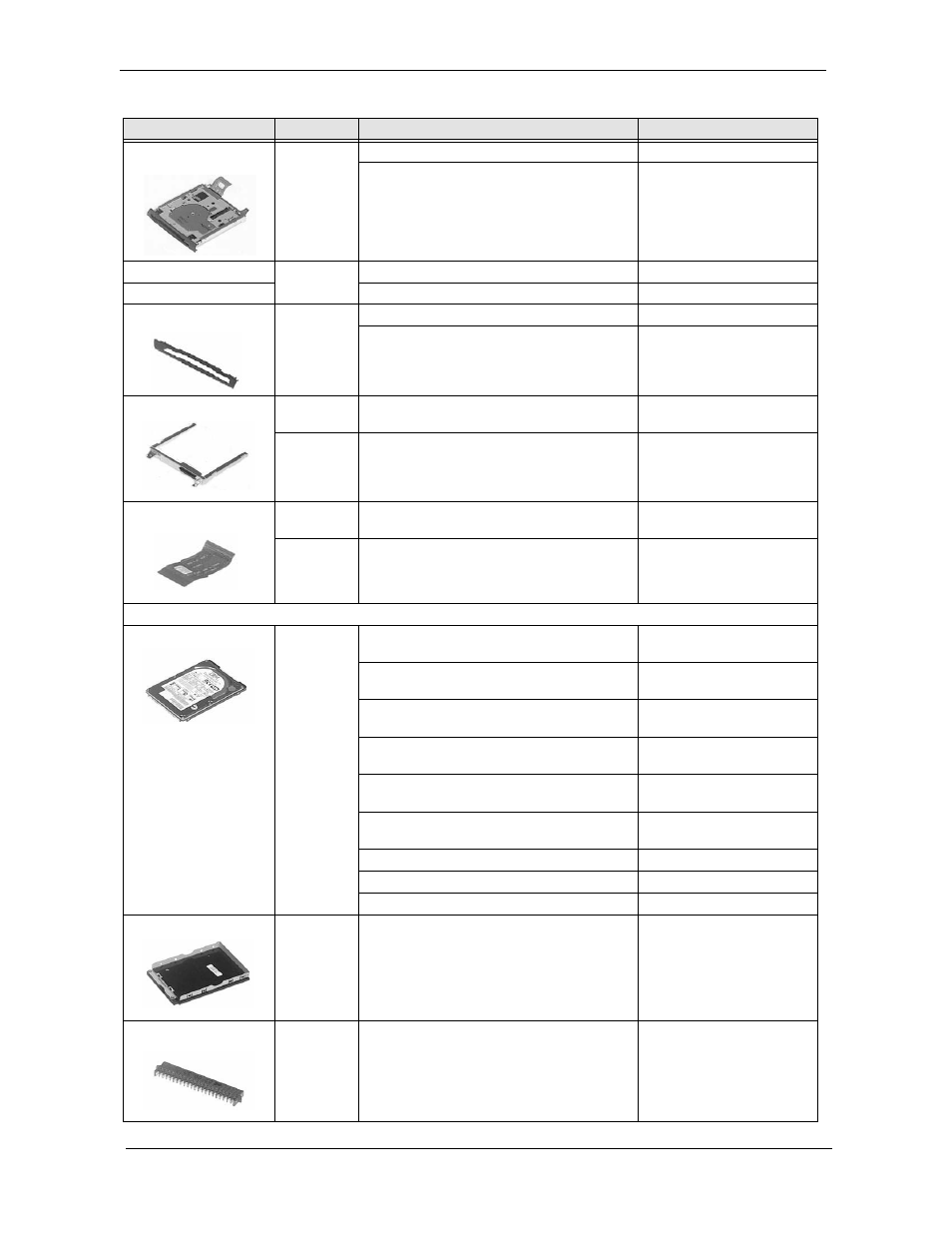

102 Chapter 6
FDD ASSY FDD MODULE, PANASONIC 6M.T18V5.010
FDD MODULE, MITSUMI 6M.T18V5.011
011-FDD
ASSY FDD DRIVE PANASONIC KF.22602.001
FDD DRIVE MITSUMI KF.35301.002
002-FDD
ASSY FDD DOOR PANASONIC 42.T18V5.016
FDD DOOR MITSUMI 42.T18V5.017
001-FDD
ASSY FDD BRACKET PANASONIC 33.T18V5.004
FDD BRACKET MITSUMI 33.T18V5.005
010-FDD
ASSY FDD FPC PANASONIC 50.T18V5.007
FDD FPC MITSUMI 50.T18V5.008
HDD/ Hard Disk Drive
NS HDD 2.5" 20G IBM CASCADE
IC25N020ATCS04-0 07N8325 FW: A71A KH.25202.001
HDD 2.5" 30G IBM CASCADE
IC25N030ATCS04-0 07N8326 FW: A71A KH.25302.001
HDD 2.5" 40G IBM CASCADE
IC25N040ATCS04-0 07N8326 FW: A71A KH.25402.001
HDD 2.5" TOSHIBA 20GB TITAN MK2018GAP
4200RPM KH.25204.001
HDD 2.5" TOSHIBA 30GB TITAN MK3018GAP
4200RPM KH.25304.001
HDD 2.5" TOSHIBA 40GB TITAN MK4018GAP
4200RPM KH.25404.001
HDD 2.5" 20G Hitachi DK23DA-20F KH.32005.001
HDD 2.5" 30G Hitachi DK23DA-30F KH.33005.001
HDD 2.5" 40G Hitachi DK23DA-40F KH.34005.001
003-HDD
(W/O HDD)
ASSY HDD CARRIER 42.T18V5.018
010-HDD
(W/O HDD)
ASSY HDD CONNECTOR 22.T18V5.002
Picture No. Partname And Description Part Number
