3.4 Memory Module Replacement

The panel PC is preinstalled with a 1 GB DDR2 memory module. If the memory module is

fail, follow the instructions below to replace the memory module.

Step 1:

Remove the aluminum back cover. See Section 3.3 above.

Step 2:

Locate the DDR2 SO-DIMM on the motherboard (Figure 3-4).

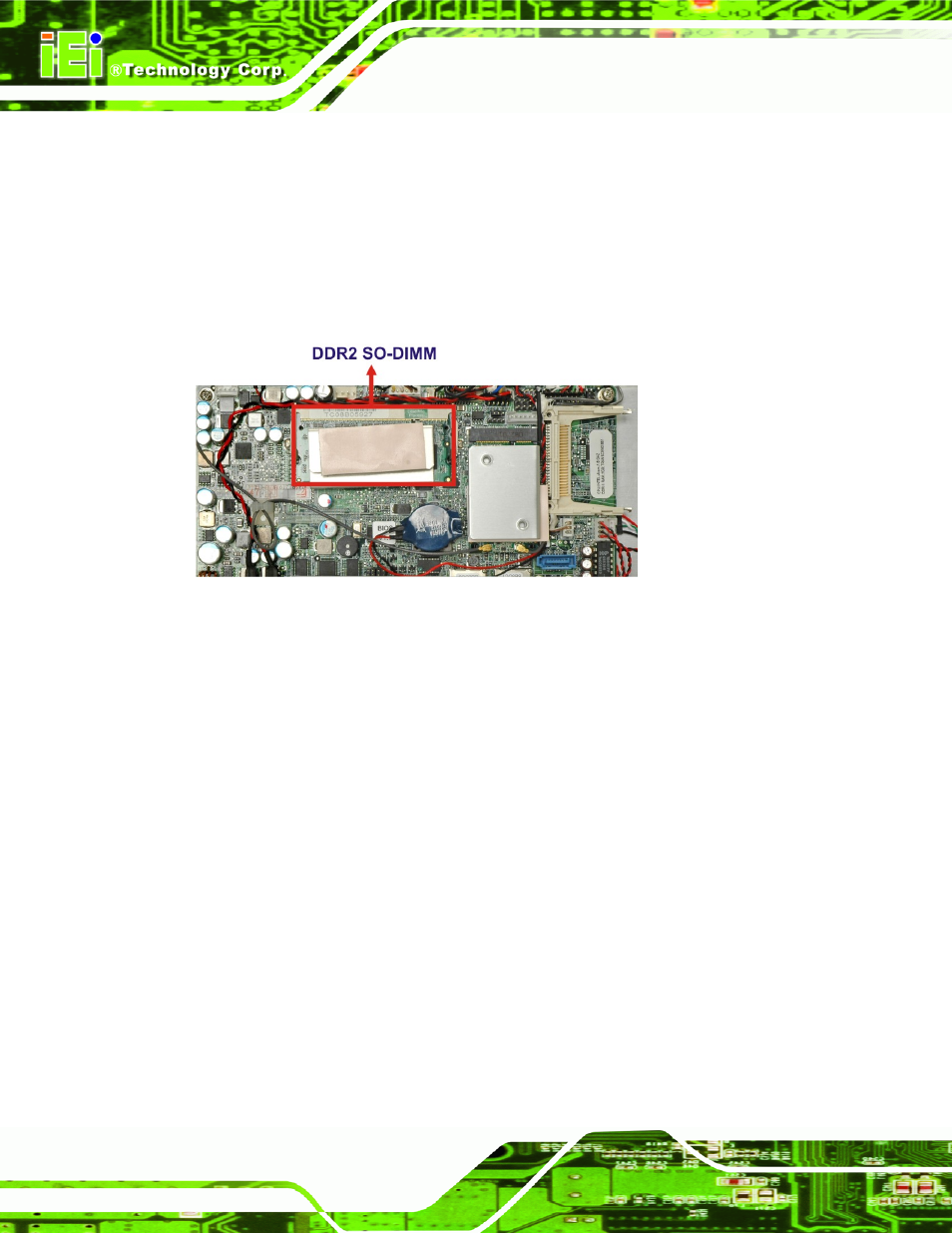

Figure 3-4:AFL-08B-N270 SO-DIMM Socket Location

Step 3:

Remove the SO-DIMM by pulling both the spring retainer clips outward from the

socket.

Step 4:

Grasp the SO-DIMM by the edges and carefully pull it out of the socket.

Step 5:

Install the new SO-DIMM by pushing it into the socket at an angle (Figure 3-5).

Step 6:

Push the SO-DIMM down. The spring retainer clips on the SO-DIMM socket clip

into place and secure the SO-DIMM in the socket.
