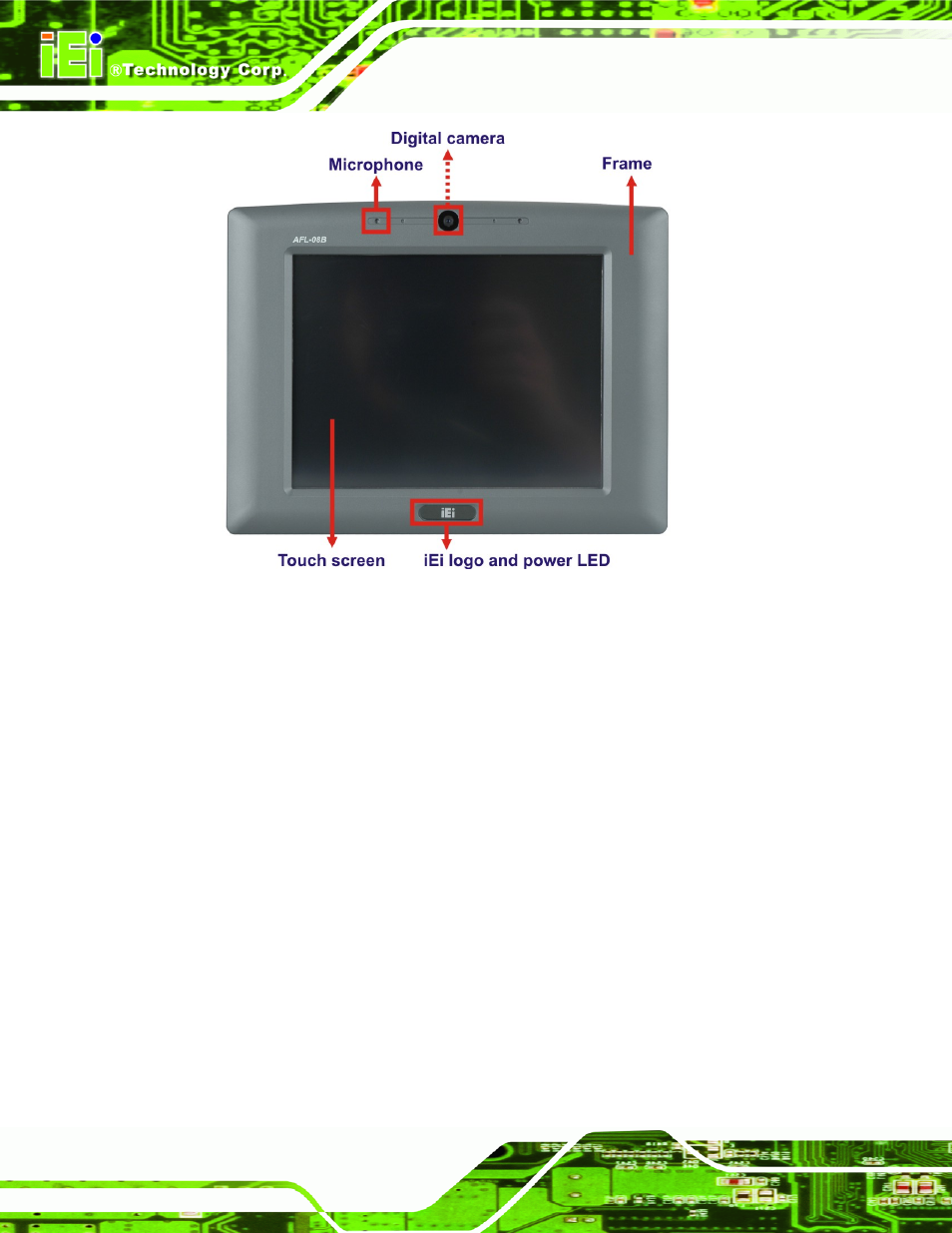

Figure 1-2: AFL-08B-N270 Front View

1.3.2 Rear Panel

The rear panel provides access to the internal components of the AFL-08B-N270 and CF

card slot. Refer to Figure 1-3 for back cover retention screw and VESA mount screw

holes.
