AFL-08B-N270 User Manual
Page 18

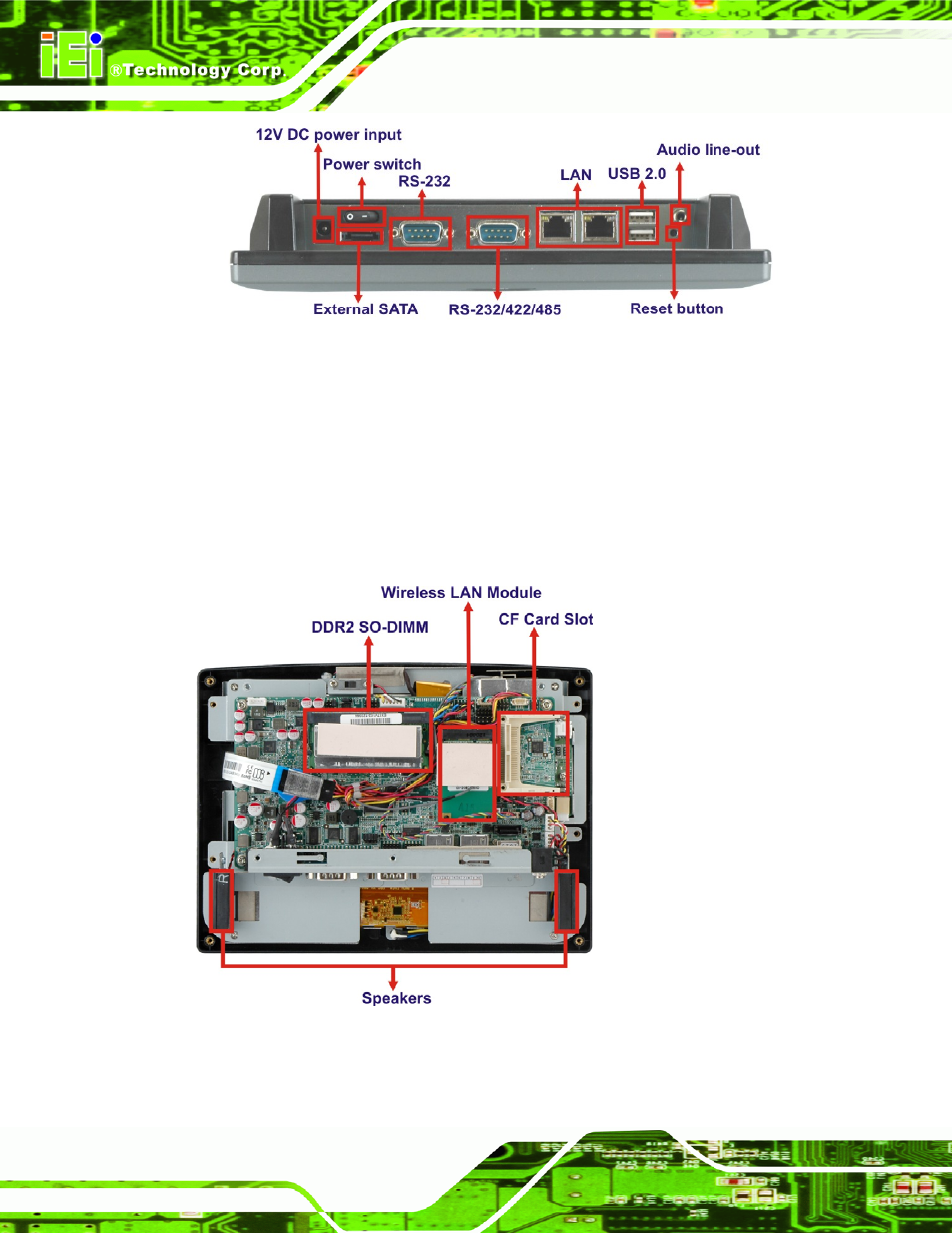

Figure 1-4: AFL-08B-N270 I/O Interface Connector Panel
1.4 Internal Overview
The AFL-08B-N270 has the following components installed internally:
ƒ 1 x Motherboard
ƒ 1 x 1.0 GB 533 MHz DDR2 SDRAM SO-DIMM
ƒ 1 x Wireless LAN module
ƒ 2 x 1.5W speakers
Figure 1-5: Internal Overview
