AFL-08B-N270 User Manual
Page 38
RS-232/485 Select Description
Short 1-2 RS-232 Default
Short 4-5 RS-232 Default
Short 7-8 RS-232 Default
Short 10-11 RS-232 Default
Short 2-3 RS-422/485
Short 5-6 RS-422/485
Short 8-9 RS-422/485
Short 11-12 RS-422/485
Table 2-10: COM3 RS-232/422/485 Serial Port Select Jumper Settings

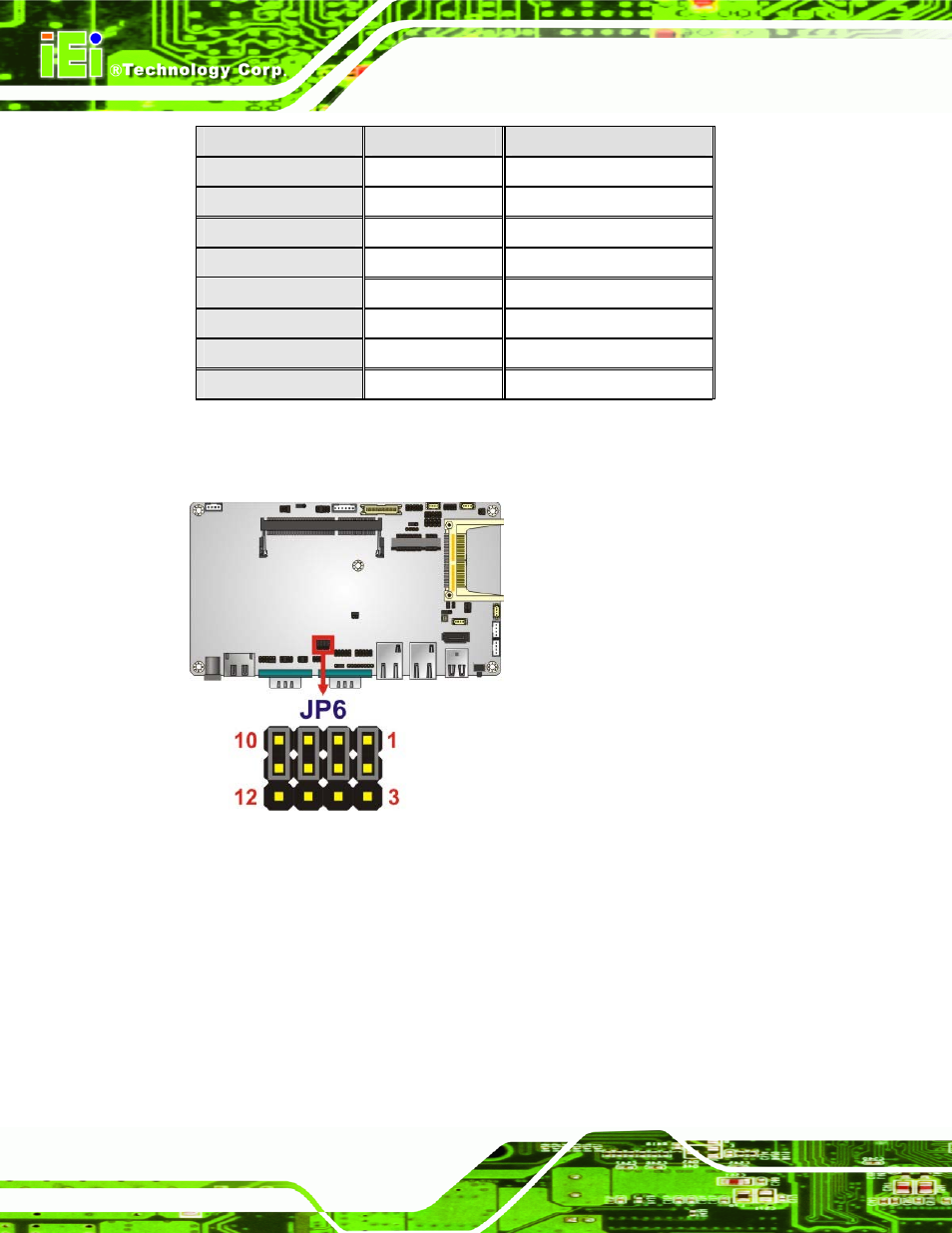

The COM3 RS-232/422/485 Serial Port Select jumper location is shown in
5
Figure 2-9 .
Figure 2-9: COM3 RS-232/422/485 Serial Port Select Jumper Location
2.5.8 CompactFlash® Setup
Jumper Label: JCF1
Jumper Type: 2-pin header
Jumper Settings: See Table 2-11
Jumper Location: See Figure 2-10
