AFL-W10A-N270 User Manual

Page 34

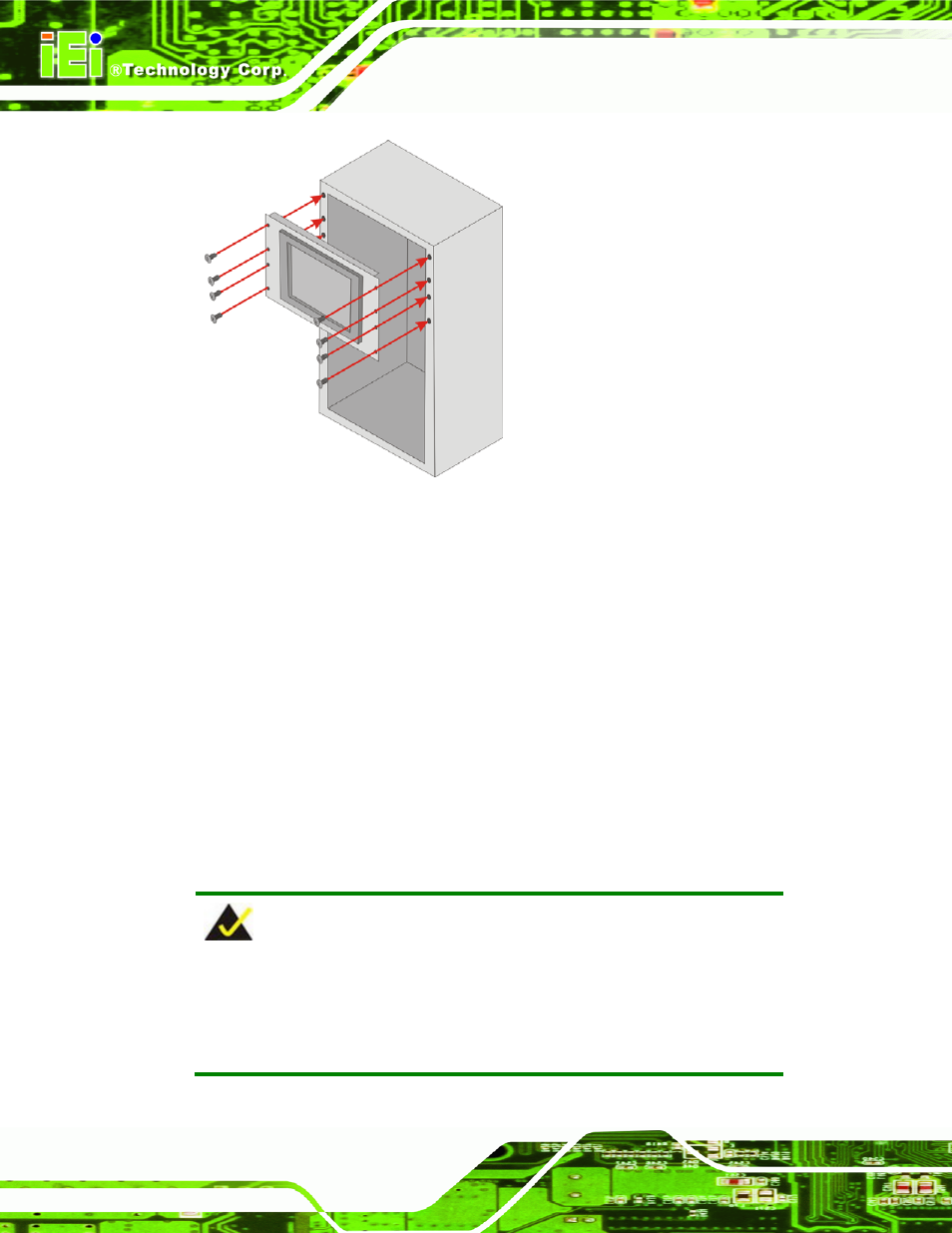

Figure 2-18: Install into a Rack/Cabinet

Step 5:

Once the panel PC with the attached rack/cabinet bracket has been properly

inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to

the front of the rack or cabinet (Figure 2-18).

2.6.4 Arm Mounting

The AFL-W10A-N270 is VESA (Video Electronics Standards Association) compliant and

can be mounted on an arm with a 100mm interface pad. To mount the panel PC on an arm,

please follow the steps below.

Step 1:

Please correctly mount the arm onto the surface it uses as a base. To do this,

refer to the installation documentation that came with the mounting arm.

NOTE:

When purchasing the mounting arm please ensure that it is VESA

compliant and that the arm has a 100mm interface pad. If it is not VESA

compliant, it cannot be used to support the AFL-W10A-N270 panel PC.
