AFL-W10A-N270 User Manual
Page 16

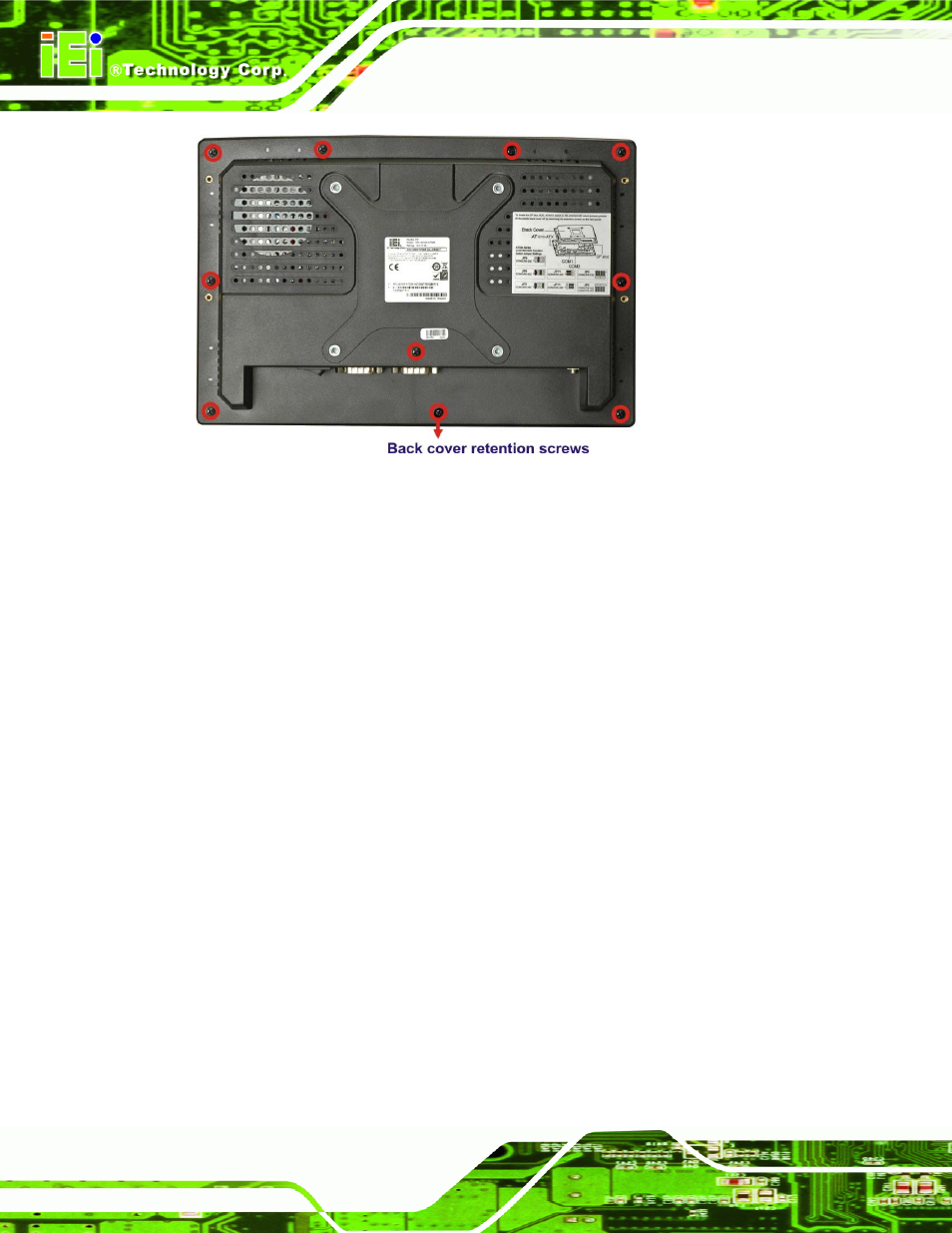

Figure 2-1: Back Cover Retention Screws
Step 2: Lift the cover and pull down the cover a bit to make it possible to fully remove it.
More strength is required to separate the cover from the chassis. Step 0:
2.3 CF Card Installation
The AFL-W10A-N270 has one CF Type II slot inside the rear panel. The slot can be
access without removing the back cover. To install the CF card, follow the instructions
below.
Step 1: Remove the rear panel. See Section 2.2.
Step 2: Locate the CF slot cover. Remove the retention screw and cover (Figure 2-2).
