AFL-W10A-N270 User Manual

Page 4

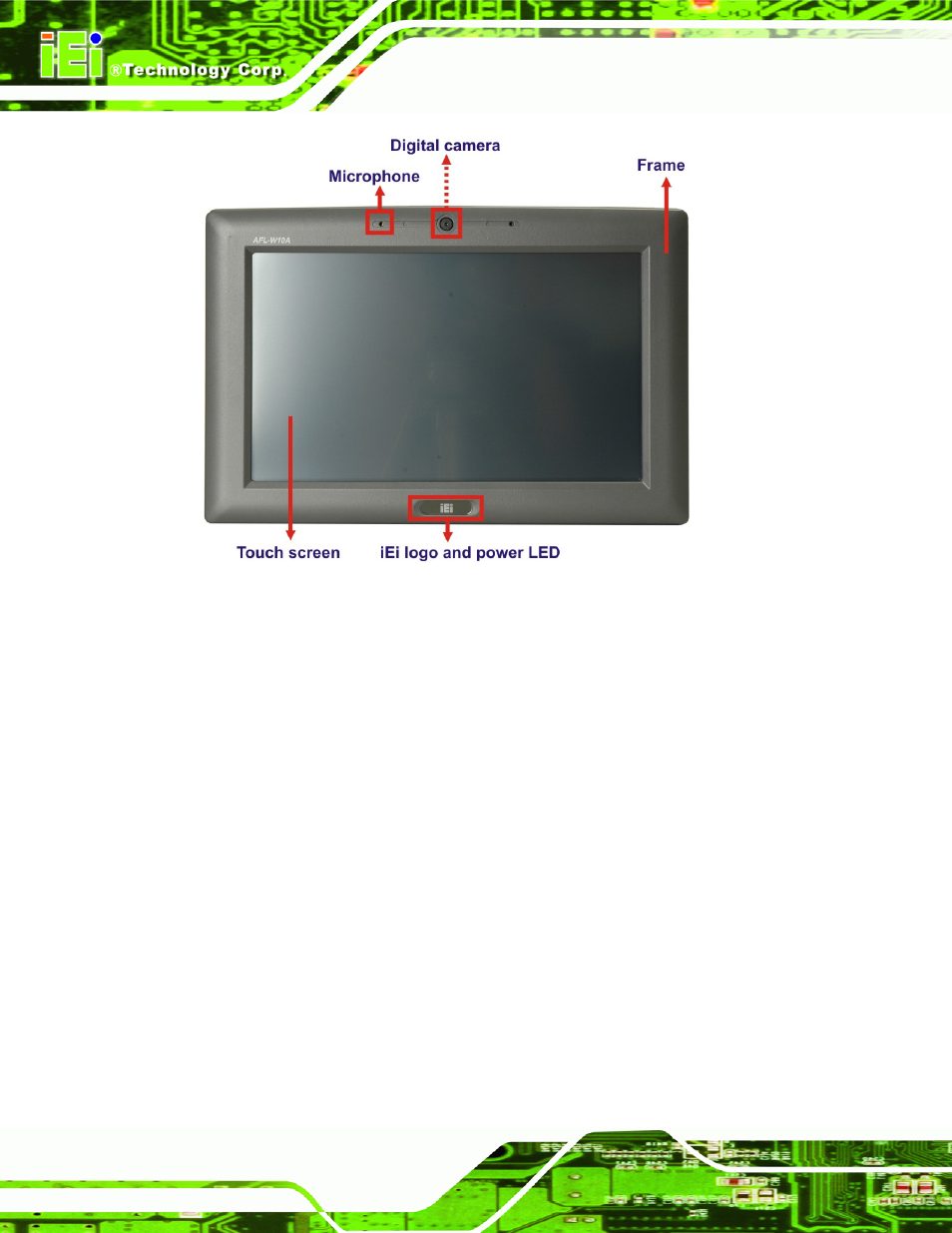

Figure 1-2: AFL-W10A-N270 Front View

1.2.2 Rear Panel

The rear panel provides access to the internal components of the AFL-W10A-N270 and

CF card slot. Refer to Figure 1-3 for back cover retention screw holes and VESA mount

screw holes.
