2.4 AT/ATX Mode Selection
AT and ATX power modes can both be used on the AFL-W10A-N270. The selection is
made through an AT/ATX switch on the top edge of the inner aluminum cover (Figure 2-4).
To select AT mode or ATX mode, follow the steps below.
Step 1: Locate the AT/ATX switch on the top edge of the aluminum cover (Figure 2-4).

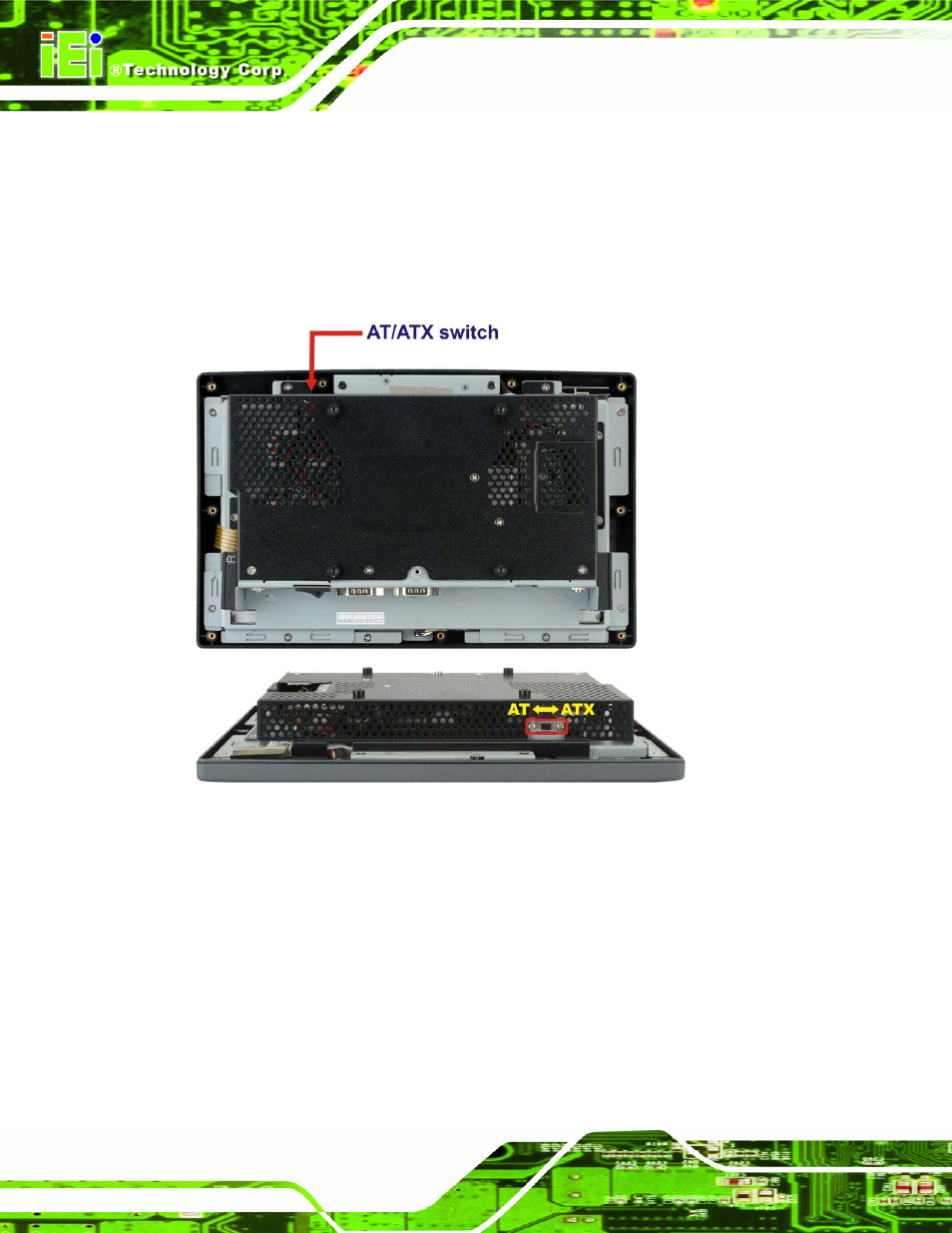

Figure 2-4: AT/ATX Switch Location
Step 2: Adjust the AT/ATX switch. Step 0:
2.4.1 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The AFL-W10A-N270 panel PC turns on automatically when the power is
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applications including:
ƒ ATM
