Step 8:

Carefully insert the screws through the holes and gently pull the monitor

downwards until the monitor rests securely in the slotted holes (Figure 2-12).

Ensure that all four of the mounting screws fit snuggly into their respective

slotted holes.

NOTE:

In the diagram below the bracket is already installed on the wall.

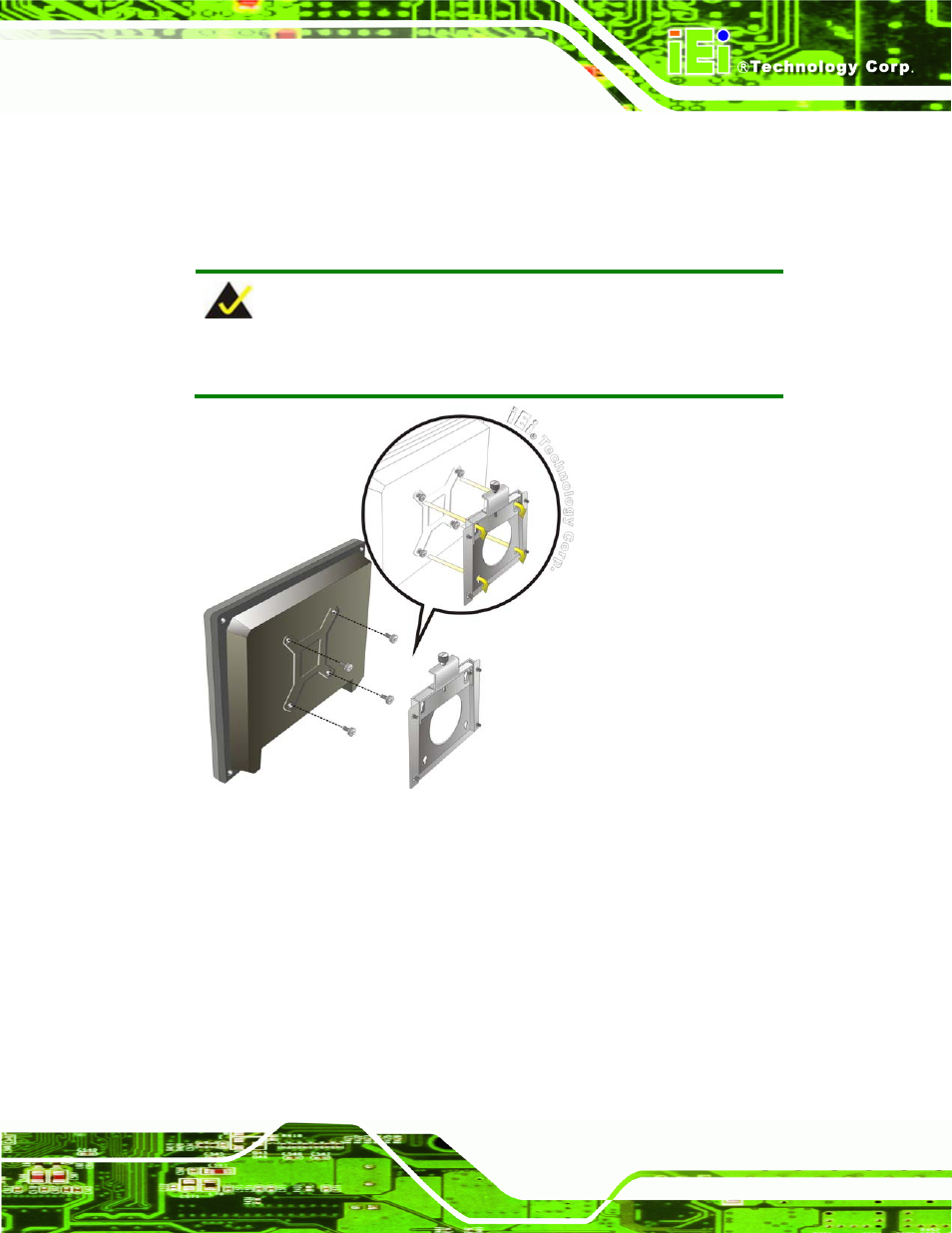

Figure 2-12: Chassis Support Screws

Step 9:

Secure the panel PC by fastening the retention screw of the wall-mounting

bracket. (Figure 2-13).
