SAILORPC-12A Panel PC

Page 22

3.5.3 CAN & Audio Connector

Connects to a CAN network and audio device.

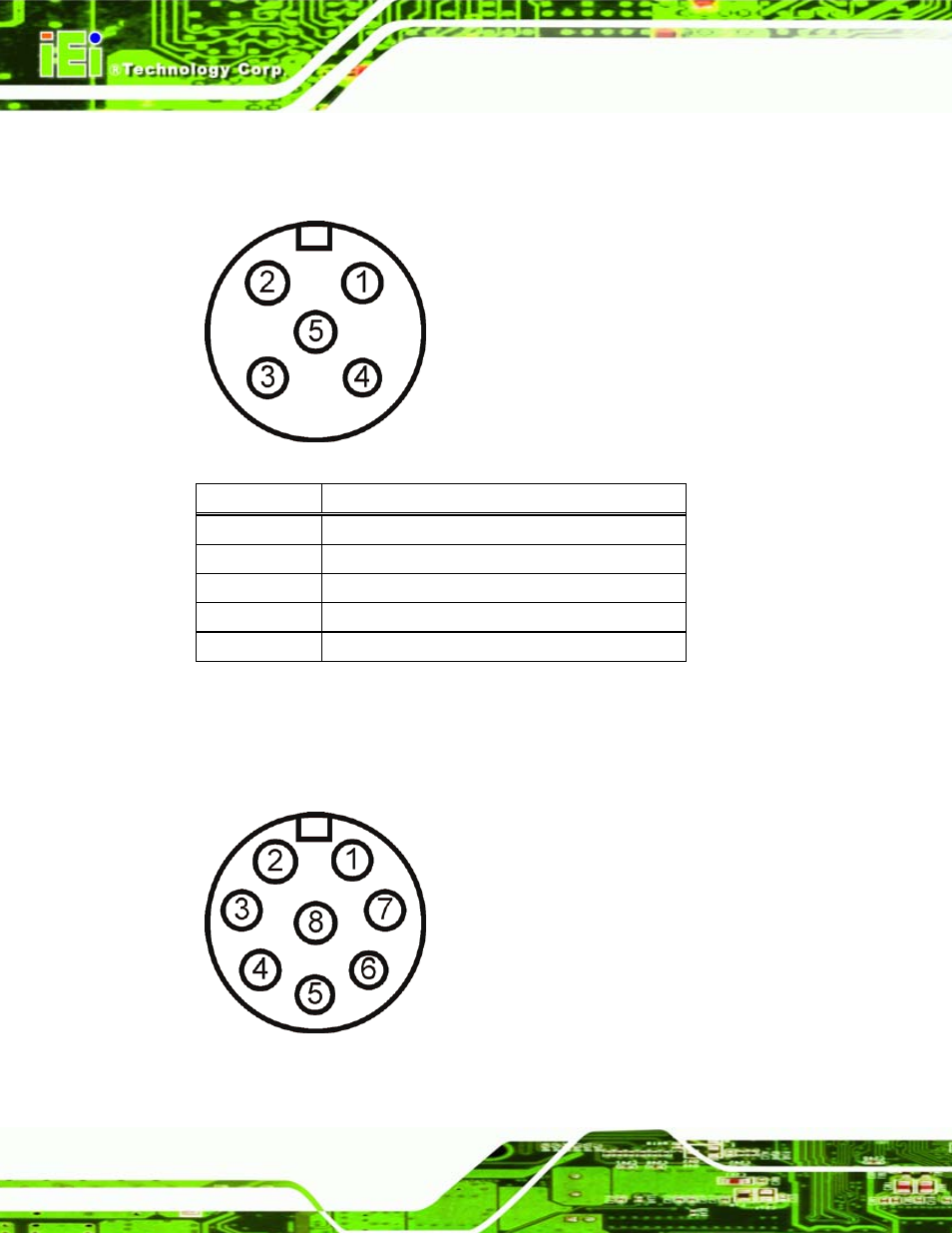

Figure 3–8: CAN & Audio Port

Pin

Description

1

Speaker right

2

CAN+

3

CAN-

4

Speaker left

5

Speaker ground

Table 3-9: CAN & Audio Port

3.5.4 USB Port Connector

Connects to USB devices.

Figure 3–9: USB Port
