SAILORPC-12A Panel PC

Page 15

3.2 Hard Drive Installation

This section outlines the installation of the hard drive in the SAILORPC-12A. To install the

hard drive, please follow the steps below:

Step 1:

Remove the plastic back cover.

Step 2:

Unfasten the screws. Lift the cover to remove (Figure 3-2).

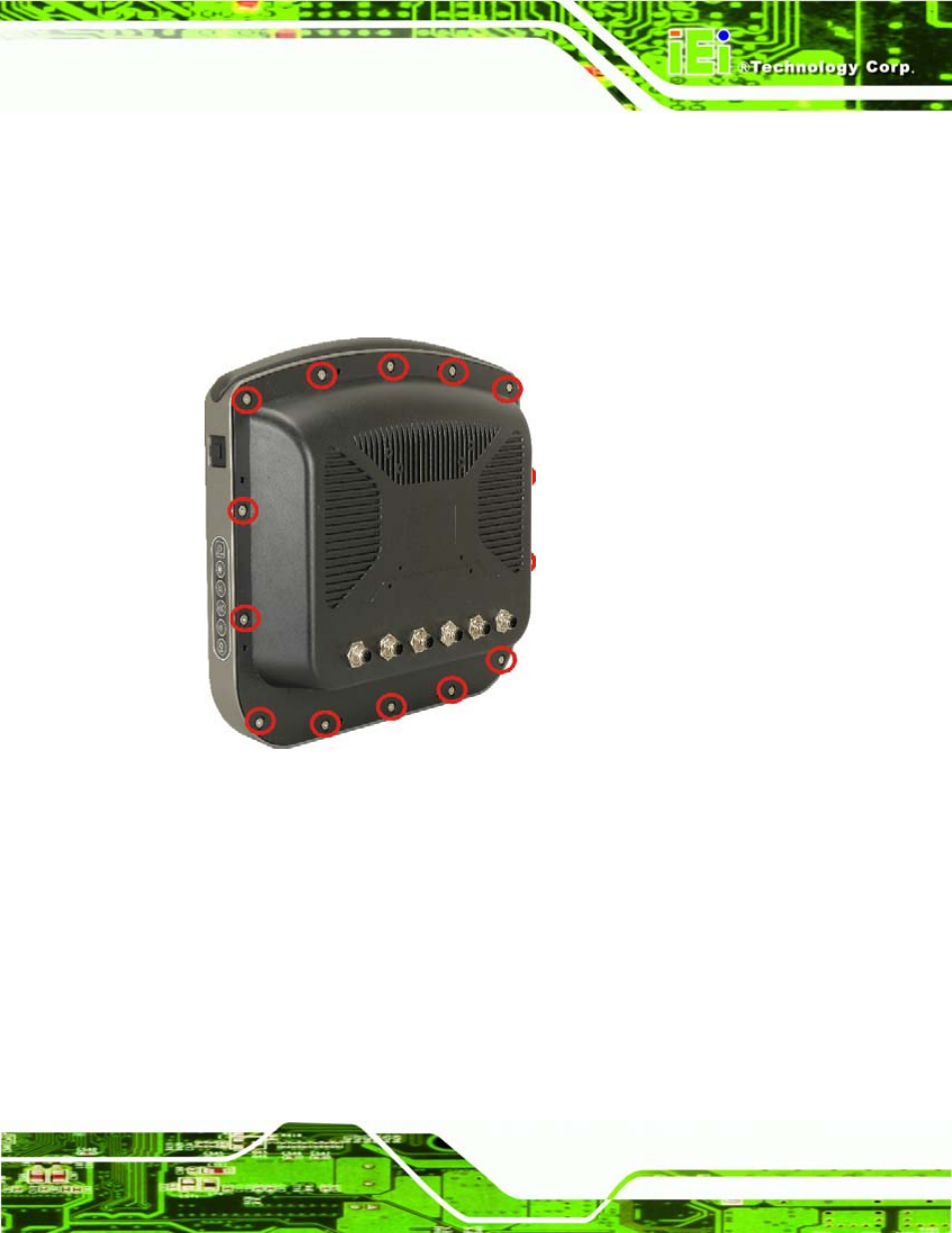

Figure 3-2: Aluminum Back Cover Retention Screws
