5.5 Integrated Peripherals

Use the Integrated Peripherals menu (BIOS Menu 7) to change the configuration options

for the attached peripheral devices.

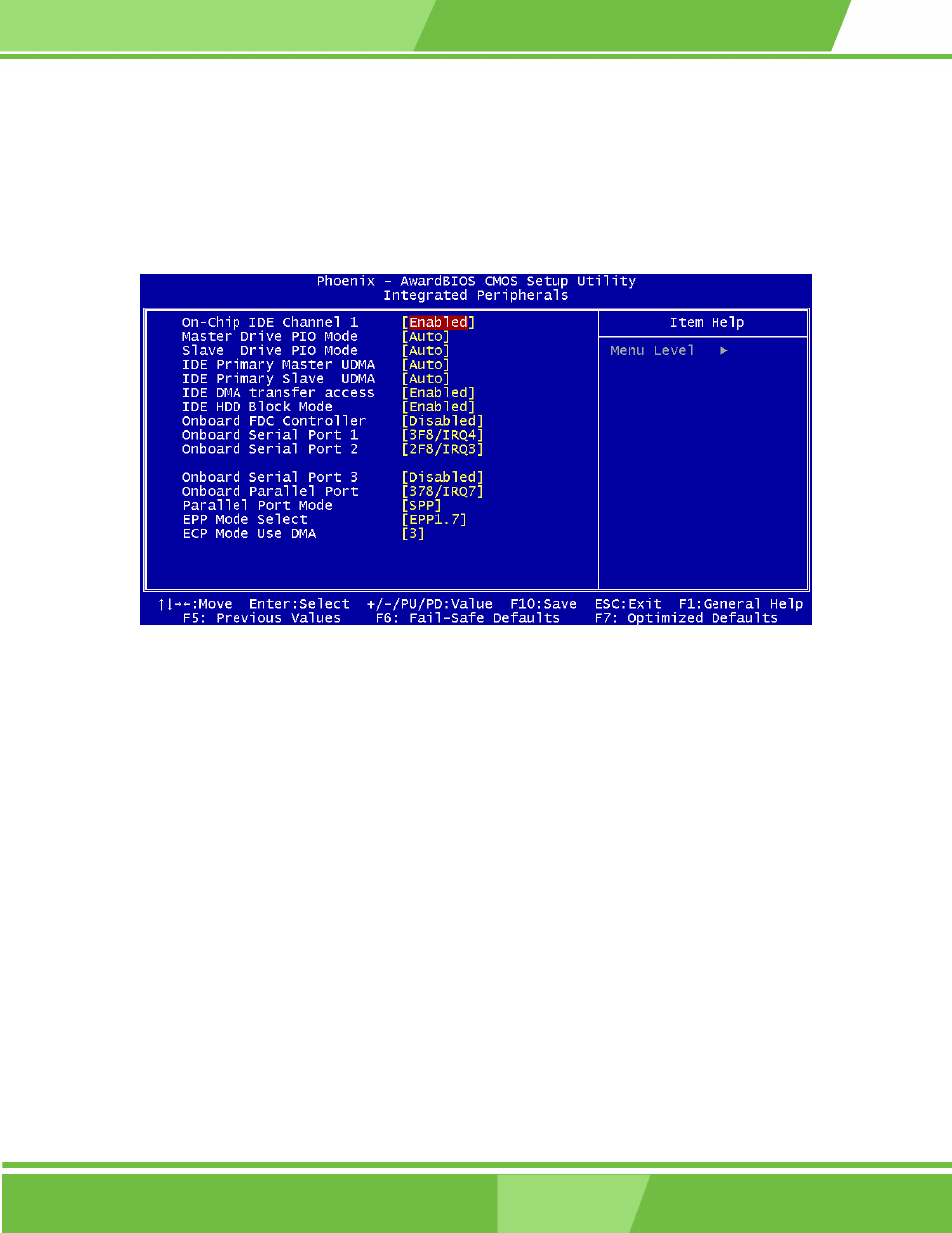

BIOS Menu 7: Integrated Peripherals

On-Chip IDE Channel 1 [Enabled]

The On-Chip IDE Channel 1 option is enabled and is NOT user configurable.

Drive PIO Mode [Auto]

Use the Drive PIO Mode options below to select the Programmed Input/Output (PIO)

mode for the following HDDs:

Master Drive PIO Mode

Slave Drive PIO Mode

Auto

(Default) The computer selects the correct mode.

Mode 0

PIO mode 0 selected with a maximum transfer rate of 3.3MBps.
