NANO-PV-D4251/N4551/D5251 EPIC SBC

Page 62

Step 2:

Insert a USB Series "A" plug.

Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See

Figure 4-19.

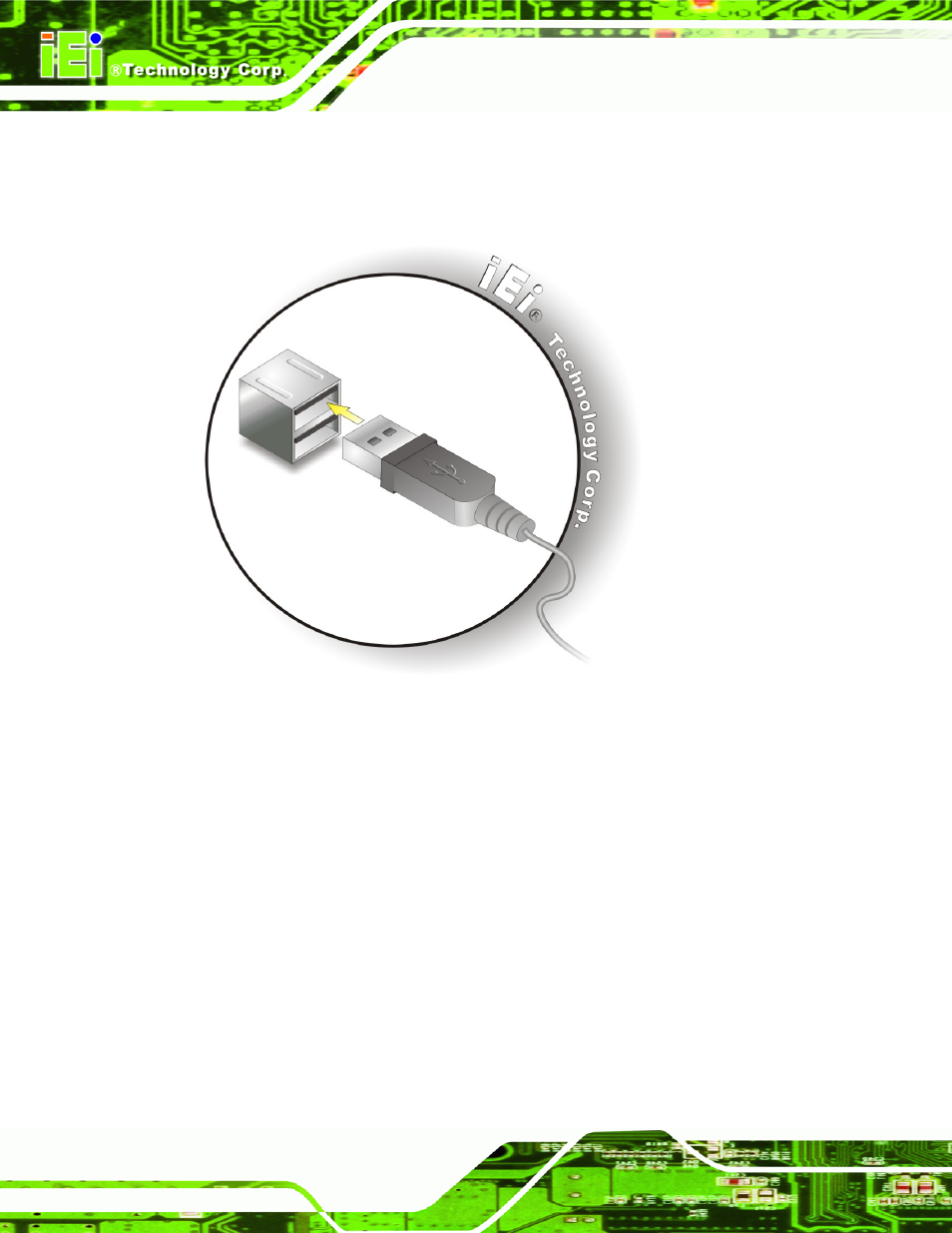

Figure 4-19: USB Connector

4.8.5 VGA Monitor Connection

The NANO-PV-D4251/N4551/D5251 has a single female DB-15 connector on the external

peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor.

To connect a monitor to the NANO-PV-D4251/N4551/D5251, please follow the

instructions below.

Step 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.
